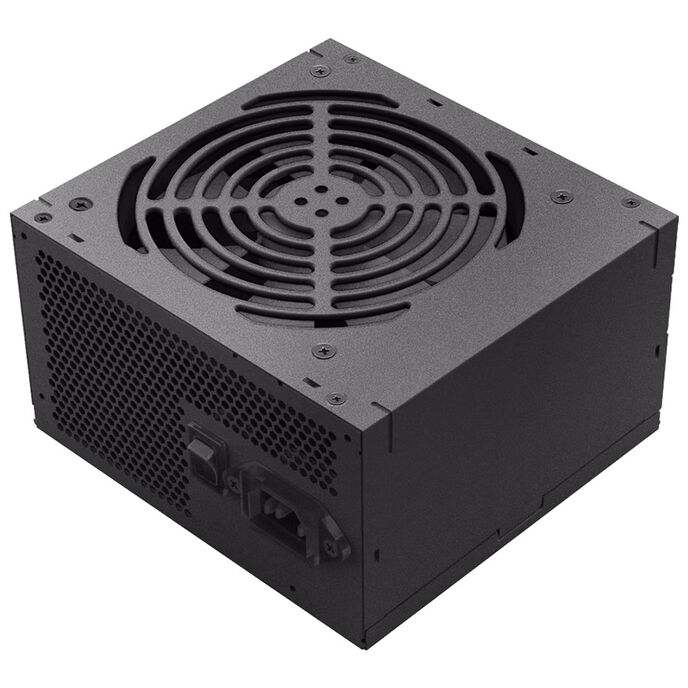

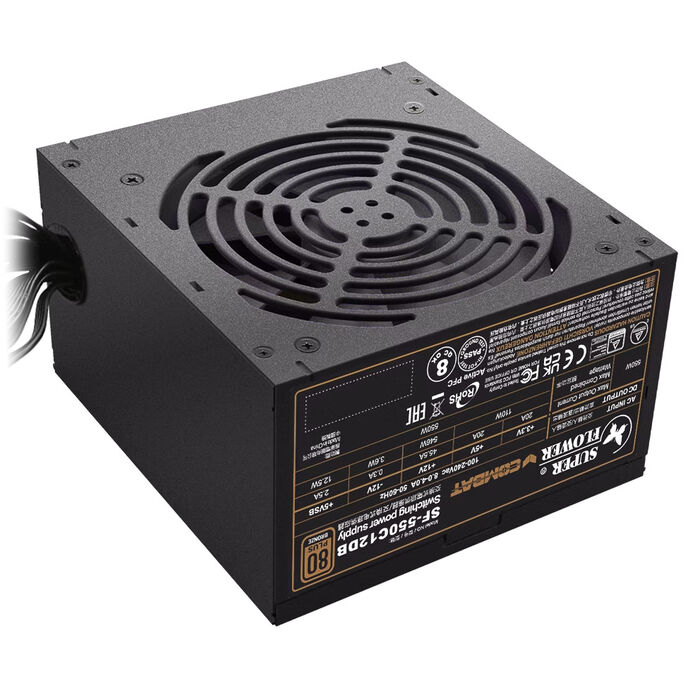

Super Flower Combat DB PSU, 80 PLUS Bronze, ATX 2.52 – 550 Watt
Prekės kodas: 1235058
SF-550C12DB
64,14 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- 550 watts of continuous power with 80-PLUS-Bronze efficiency
- Low-noise cooling thanks to a quiet 120mm fan
- High-quality components ensure long-lasting operation
- Six protection circuits safeguard your components
Super Flower Combat DB: 550 Watt Power Supply with 80-PLUS-Bronze Efficiency
With the Combat DB series, Super Flower targets the mid-range market for PC builders. The power supply from Super Flower provides a solid foundation for your system with 550 watts of continuous power and 80-PLUS-Bronze efficiency.
A quiet 120mm fan ensures adequate cooling of the power supply components. To guarantee a long lifespan for the power supply, this fan has been optimised for durability. Super Flower has also not skimped on capacitors, using long-lasting components from Taiwan.
Protection circuits for safe operation
The Super Flower Combat DB is equipped with numerous protection circuits. These protect your PC from short circuits, overloads, and any other dangerous situations. The power supply ensures your PC is safely and efficiently powered.
There are also plenty of connectors: With four SATA and four Molex plugs, up to eight hard drives or other devices can be connected. Your components are also well supplied: a 4+4-pin cable powers your CPU, while two 6+2-pin connectors are available for PCIe devices.
- Dimensions: 150 x 86 x 140 mm (W x H x D)
- Weight: 2 kg
- Colour: Black
- Fan: 120 mm PWM
- Standard: ATX 2.52
- Efficiency: 80 PLUS Bronze
- Form factor: ATX
- Power: 650 W
+3.3V: 20 A / 66 W
+5V: 20 A 100 W
+3.3V & +5V: 110 W (combined)
+12V: 45.5 A / 546 W (combined)
-12V: 0.3 A / 3.6 W
+5Vsb: 2.5 A / 12.5 W - Internal power supply cables:
1x 24-Pin (600 mm)
1x 4+4-Pin (600 mm)
1x 6+2-Pin + 6+2-Pin (500 + 150 mm)
1x 4x SATA, of which 3x 90 degrees (400 – 150 – 150 – 150 mm)
1x 4x Molex + FDD (400 – 150 – 150 – 150 mm) - Protection circuits:
OPP (Overload Protection)
OVP (Over and Under Voltage Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
OCP (Over Current Protection)
UVP (Under Voltage Protection) - Delivery contents:
1x Super Flower Combat DB power supply, 80 PLUS Bronze, ATX 2.52 – 650 Watt
1x C13 power cable (1.5 m)
4x screws
Manual
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 140 mm |
Width | 150 mm |
Height | 86 mm |
Weight | 2 kg |
Fan Specifications | |
Fan Size | 120 mm |
Power Supply | |
PSU Format | ATX |
12V Distribution | single rail |
Modular Power Supply | No |
Modular Type | no |
Protection Circuits | OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection) |
Power Specifications | |
Total Power Output | 550 W |
Power Output +3.3V | 66 W |
Power Output +5V | 100 W |
Power Output +3.3V & +5V (combined) | 110 W |
Power Output +12V rails | 546 W |
Power Output -12V | 3.6 W |
Power Output +5Vsb | 12.5 W |
Cable Specifications | |
Max. CPU Power Cable Length | 600 mm |
Max. 24-Pin Motherboard Power Cable Length | 600 mm |
Max. PCIe Power Cable Length | 650 mm |
Max. SATA Power Cable Length | 850 mm |
Max. Molex Cable Length | 850 mm |
Cooling | |
Semi Passive Power Supply | No |
Internal Ports | |
CPU Power Connectors 12V ATX/EPS | 2 |
6+2 Pin PCIe Power Connectors | 2 |
SATA Power Connectors | 4 |
4 Pin Molex Power Connectors | 4 |
Efficiency Class | |
80PLUS Efficiency | 80 PLUS Bronze |
Lighting | |
Lighting / RGB | No |
