GIGABYTE Z890 Aorus Elite WF7 ICE pagrindinė plokštė, Sockel LGA 1851, Intel Z890, ATX, DDR5

Prekės kodas: 1234551

Z890 AORUS ELITE WIFI7 ICE

339,61

LIKUTIS: Turime
2025-10-08
PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

    This motherboard is excellent for high-end builds.

    • 1x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16 (x4)
    • 4x DIMM slots for max. 256 GB DDR5 RAM up to 8,800 MHz (XMP 3.0)
    • 4x M.2 (of which 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
    • USB on the I/O panel: 1x USB4, 2x USB 3.1, 3x USB 3.0 and 4x USB 2.0
    • OC features: 16+1+2 phase VRMs, CMOS reset, Q-Flash Plus button and power button
    • A total of 7x connections for fans & pumps
    • Supports WiFi 7 and Bluetooth 5.4

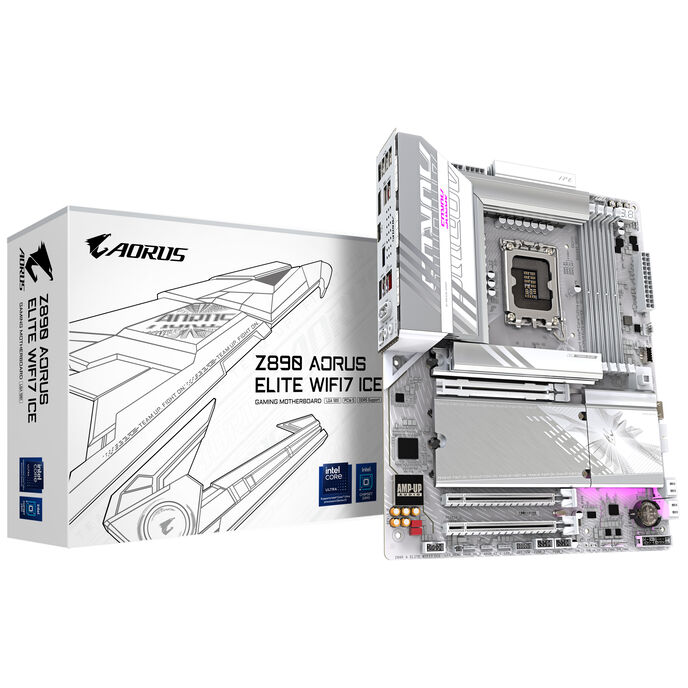

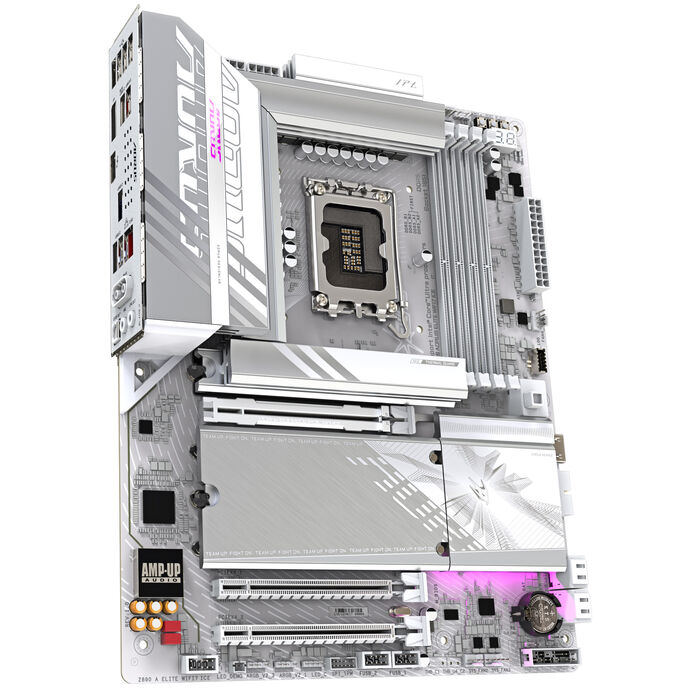

    GIGABYTE Z890 Aorus Elite WIFI7 ICE: ATX motherboard with Intel LGA 1851 socket and Z890 chipset

    The GIGABYTE Z890 Aorus Elite WIFI7 ICE is an ATX motherboard with the high-end chipset Intel Z890 and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. Furthermore, the GIGABYTE Z890 Aorus Elite WIFI7 ICE impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

    The GIGABYTE Z890 Aorus Elite WIFI7 ICE offers user-friendly features, ideal for your PC build. With a 16+1+2 digital VRM design for stable power supply, it is designed for demanding performance and beginner-friendly overclocking. The advanced cooling management ensures optimal temperatures, while the intuitive user interface in the BIOS allows for easy adjustments and control. These features make the motherboard the perfect choice for an efficient and powerful gaming system.

    • Form factor:
      ATX (305 x 244 mm)
    • Chipset:
      Intel Z890
    • Socket:
      LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation)
    • RAM:
      4x DDR5 DIMM (5,600 MHz, up to 8,800 MHz via XMP / OC / CUDIMM)
      Dual-Channel
      Max. 256 GB
    • Slots (physical):
      1x PCIe 5.0 x16 (electrical x16 or x8/x8)
      2x PCIe 4.0 x16 (electrical x4 or x4/x4)
    • Total maximum usable PCIe lanes: 44
    • Internal connections:
      4x SATA 6G (max.)
      1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
      1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, CPU)
      2x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280, chipset)
      1x USB-C (1 Header, USB 3.2 Gen 2, max. 10 Gbit/s)
      2x USB 3.0 (1 Header, USB 3.2 Gen 1, max. 5 Gbit/s)
      4x USB 2.0 (2 Header, max. 480 Mbit/s)
      1x HDMI (Sensor Panel Link)
      1x Front Panel Audio Header
      1x 10-1-Pin System Panel Header
      1x Start Button
      1x Reset Button + Jumper
      1x Q-Flash Plus Button
      1x Clear CMOS Jumper
    • Fan headers:
      1x CPU Fan (4-Pin)
      1x CPU OPT Fan (4-Pin)
      1x W_PUMP+ Header
      4x Case fans (4-Pin)
    • RGB headers:
      3x 3-Pin ARGB (5 V)
      1x 4-Pin RGB (12 V)
    • External connections:
      1x Thunderbolt 4 (USB-C)
      2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
      3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
      4x USB 2.0 (Type A, max. 480 Mbit/s)
      1x DisplayPort
      1x 2.5 Gigabit LAN
      1x WiFi/Bluetooth module (RTL8922AE)
      2x 3.5 mm jack (Realtek ALC 1220)
      1x S/PDIF Audio
    • Power supply:
      1x 24-Pin ATX
      2x 8-Pin ATX12V
    • Accessories:
      1x Wi-Fi 7 antenna
      2x M.2 screws
      2x SATA cables
      1x G-Connector for easy connection of front panel cables
      1x User manual and installation guide
    Colour
    Primary Colour
    White
    Secondary Colour
    Silver
    Dimensions
    Length / Depth
    305 mm
    Width
    244 mm
    Form Factor
    Motherboard formfactor
    ATX
    CPU
    CPU Manufacturer
    Intel
    CPU Socket
    1851
    Power Specifications
    Power Stages (VRMs)
    16+1+2
    Motherboard
    Motherboard Chipset
    Intel Z890
    Dual BIOS
    No
    Built-In I/O Shield
    Yes
    Memory
    Max. Memory
    256 GB
    Memory Type
    DDR5
    Memory Form Factor
    DIMM
    Max. Memory Speed (Standard)
    5600 MT/s
    Max. Memory Speed (OC)
    8800 MT/s
    Memory slots
    4x
    Performance Profile
    Intel XMP 3.0
    Wi-Fi & LAN
    LAN
    Yes
    LAN Ports
    1x 2.5 Gbit/s
    Wi-Fi / Bluetooth
    Yes
    Wi-Fi Standard
    Wi-Fi 7
    Bluetooth Standard
    5.4
    Cooling
    Backplate
    Yes
    M.2 Heatsinks
    Yes
    VRM Heatsinks
    Yes
    Water Cooling
    Watercooling
    No
    Internal Ports
    CPU Power Supply
    2x 8-Pin
    USB 3.0 / 3.1 / 3.2 (internal) Type C Header
    1
    USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
    1
    USB 3.0 (internal) Header
    1
    USB 3.0 (internal) Possible Ports
    2
    USB 2.0 (internal) Header
    2
    USB 2.0 (internal) Possible Ports
    4
    RGB / LED connectors
    1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
    Front Panel Audio Header
    Yes
    SPI TPM Header
    Yes
    External Ports
    USB4 Gen 2×2 (external) Type C
    1
    USB 3.1 (external) Type A
    2
    USB 3.0 (external) Type A
    3
    USB 2.0 (external) Type A
    4
    Display Connectors
    Display Port (1x)
    Storage Ports
    M.2 PCIe 4.0 x4
    2
    M.2 PCIe 5.0 x4
    2
    SATA 6G (internal)
    4
    Back Connect
    Back Connect
    No
    Expansion Slots
    PCIe x16 slots (total)
    1
    PCIe x4 slots (total)
    2
    PCIe 5.0 x16 mechanical slot
    1
    PCIe 4.0 x16 mechanical slot
    2
    Fan Header
    4 Pin Fan Connectors
    7
    Audio
    Soundchip
    Realtek ALC1220
    Lighting
    Lighting / RGB
    Yes
    Lighting Colour
    RGB
    Lighting Compatibility
    GIGABYTE RGB Fusion
