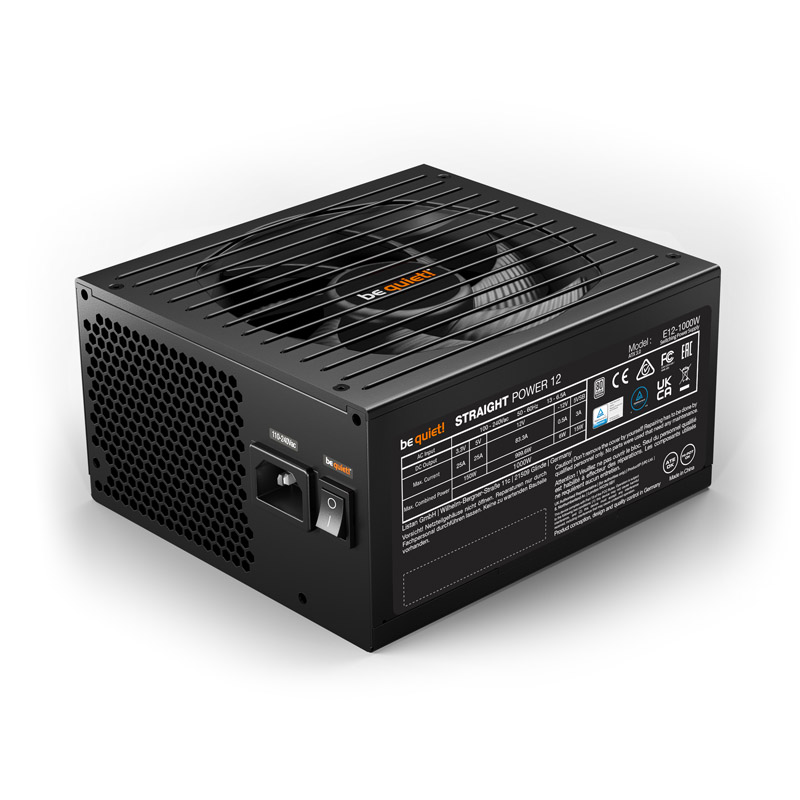

be quiet! Straight Power 12 PSU 80 PLUS Platinum, ATX 3.1, PCIe 5.1 – 1.000 Watt

• Powerful high-end ATX 3.1 power supply with up to 1,000 watts continuous power
• 12V-2×6 power rated for 600 watts
• High efficiency level with 80 PLUS Platinum (up to 93.9%)
• Designed for single-rail operation
• Patented and frameless Silent Wings fan
• Fully modular with a 12V-2×6 connector and four 6+2 pin PCIe connectors
• Elegant aluminium casing in black for the perfect look

be quiet! Straight Power 12: High-efficiency ATX 3.1 power supply for PCIe 5.1 GPUs

This high-end power supply with 80 PLUS Platinum efficiency from be quiet! focuses on top-notch technology and elegant design. The fully modular power supply with a stylish aluminium casing and individually sleeved cables is equally appealing to design enthusiasts, overclockers, and gaming aficionados. With its thoughtful construction, premium technology, and a efficiency of up to 93.9 percent, the Straight Power 12 with 1,000 watts continuous power achieves absolute top values in efficiency.

The be quiet! Straight Power 12 with 1,000 watts in detail

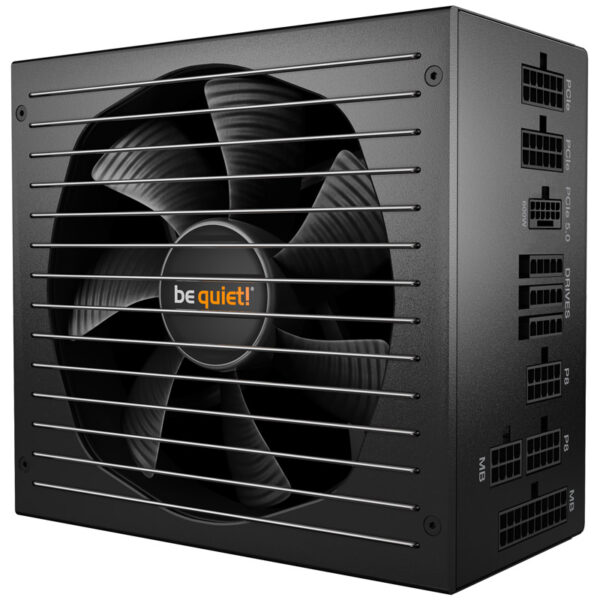

The discreet aluminium casing and the individually sleeved cables of the Straight Power 12 provide a minimalistic and elegant appearance. A special eye-catcher is the full-area, fine-mesh fan grille. The large grille facilitates air exchange. Directly behind it sits a frameless Silent Wings fan with a diameter of 135 mm. Together with the funnel-shaped air intake, this cools the power supply almost silently.

To achieve the maximum efficiency of an impressive 93.9 percent, only top-quality electronics are used. The high-end power supply employs high-quality Japanese capacitors, certified for operating temperatures of 105 °C. A fully digital control and Full-Bridge LLC technology ensure world-class regulation and ripple performance. The wireless internal design also contributes to improved cooling performance and longevity of the components.

Single-rail with excellent performance

In single-rail operation, the 12V line offers a combined current of 83.3 amperes at a total nominal power of 1,000 watts. The 12V-2×6 alone provides up to 600 watts.

The connection portfolio also leaves little to be desired. It is fully modular, guaranteeing maximum flexibility and minimal cable clutter. Even motherboards requiring two 8-pin EPS connectors pose no problem. For the graphics cards, in addition to a 12V 2×6 connector, there are four additional PCIe connectors with 6+2 pins available. The peripherals are generously supplied with nine SATA and two 4-pin Molex connectors.
