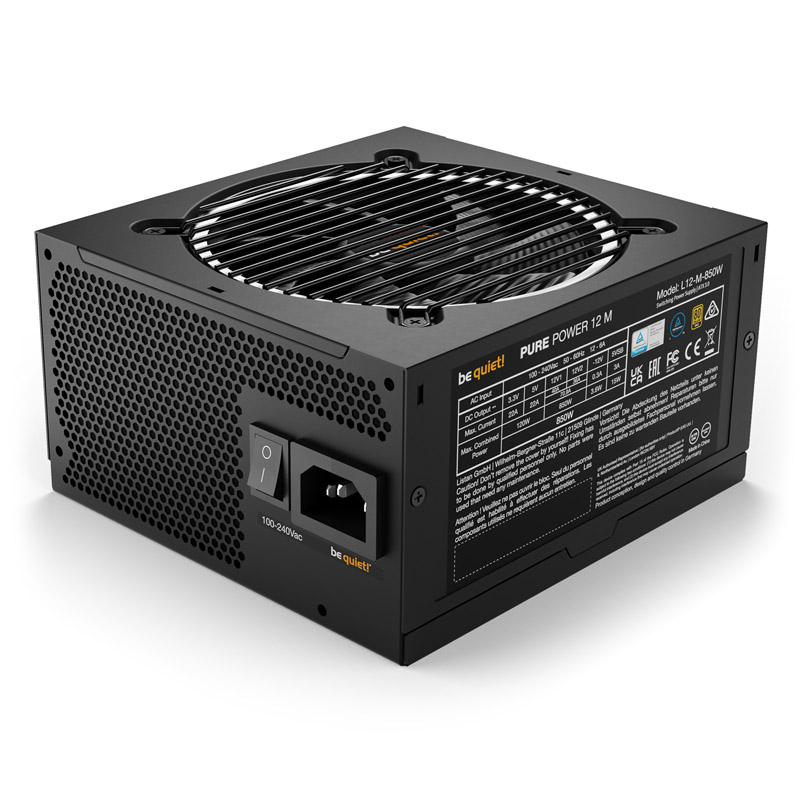

be quiet! Pure Power 12M 80 PLUS Gold power supply, ATX 3.1, PCIe 5.1 – 850 watts

• High-performance high-end ATX 3.1 power supply with 850 watts continuous power
• Highest efficiency level with 80 PLUS Gold (up to 93.1%)
• Two independent 12V rails for operation as a multi-rail
• Patented and frameless 120 mm fan
• Fully modular with 12V-2×6 connector (600 W) and four 6+2-pin PCIe connectors
• Elegant casing and individually sleeved cables

be quiet! Pure Power 12M: Highly efficient ATX 3.1 power supply for PCIe 5.1 GPUs

This high-end power supply with 80 PLUS Gold efficiency from be quiet! relies on top-notch technology and elegant design. The fully modular power supply with a stylish casing and individually sleeved cables is equally interesting for design enthusiasts, overclockers, and gaming enthusiasts. With its thoughtful construction, premium technology, and a efficiency rating of up to 93.1 percent, the Pure Power 12M with 850 watts achieves absolute peak values in efficiency and operates as a multi-rail power supply with two independent 12V rails.

The be quiet! Pure Power 12M with 850 watts in detail

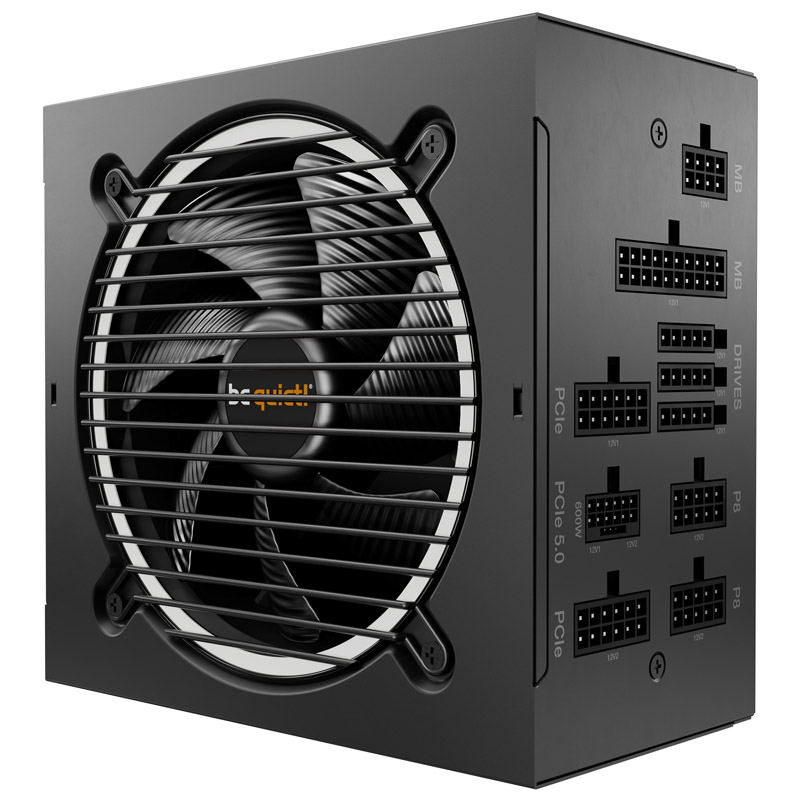

The discreet casing and individually sleeved cables of the Pure Power 12M provide a minimalistic and elegant appearance. A particularly eye-catching feature is the full-area, fine-meshed fan grill. The large grill facilitates air exchange. Directly behind it sits a frameless fan with a diameter of 120 mm. Together with the funnel-shaped air inlet, this cools the power supply almost silently.

To achieve the maximum efficiency of an impressive 93.1 percent, only top-quality electronics are used. The high-end power supply employs high-quality Japanese capacitors, certified for operating temperatures of 105 °C. A fully digital control and full-bridge LLC technology ensure regulation and ripple levels at a world-class standard. The cable-free internal design also contributes to improved cooling performance and component lifespan.

Multi-rail with outstanding performance

This version of the Pure Power 12M provides a solid 850 watts as continuous power. In multi-rail operation, each of the two individual lines supplies either 36 or 40 amperes.

The connection portfolio also leaves little to be desired. It is fully modular, guaranteeing maximum flexibility and minimal cable clutter. Even motherboards requiring two 8-pin EPS connectors are not a problem. For graphics cards, in addition to the 12V-2×6 connector, there are four additional 6+2-pin PCIe connectors. The peripherals are generously provided for with six SATA and two 4-pin Molex connectors.
