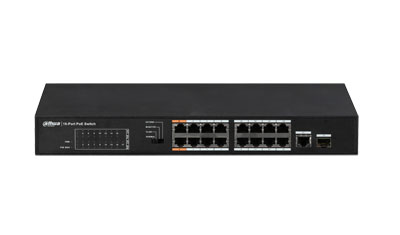

PoE šakotuvas 100Mbps 16portu+1G uplink + 1SFP, PoE iki 250, Hi-PoE

Aprašymas

Features:

• Compliant IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3x standards
• Supports IEEE802.3af, IEEE802.3at, Hi-PoE standards
• Supports normal working mode, port isolation (VLAN) mode, monitoring mode, network extend mode.
• Supports Store-and-Forward
• 16*10/100Mbps ports, 1*Gigabit Combo port, support port auto flipping (Auto MDI / MDIX)
• Port 1-2 support the maximum power of 60W, PoE output total power up to 135W
• Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
• 4K entry MAC address table with auto-learning and auto-aging
• LED indicators for monitoring power, link and activity

Technical Specifications:

Standards
• IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z,IEEE802.3x, IEEE802.3af, IEEE802.3at, Hi-PoE
• Interface 16 x 10/100Mbps RJ45
• 1 x Gigabit Combo (RJ45/SFP)
• Transfer Method Store-and-Forward
• Switching Capacity 5.2Gbps
• Packet Forwarding Rate 3.87Mpps
• Packet Buffer 2.75Mbit
• PoE Ports(RJ45) Port 1/2 : Hi-PoE/PoE+/PoE;
• Port 1-16 : PoE+/PoE
• Power Pin Assignment 1 to 2 port: 1/2/4/5 (+), 3/6/7/8 (-)
• Other PoE port: 4/5 (+), 7/8 (-)
• PoE Budget 135W
Mode
• Default mode All ports can communicat
• CCTV mode 1 to 8 ports support port priority, optimize port cache, switch all ports can communicate with each other
• Extender mode 1 to 8 port rate down to 10Mbps, the farthest transmission distance of up to 250 meters, all ports can communicate with each other

Indicators
• Per Device Power: Green MAX : Red
• Per Port Link/Act: Green PoE: Yellow
• Power Supply AC 100V~240V 50/60HZ
• Dimensions (W × D × H) 340*200*43 mm (13” metal case)
Environment
• Operating Temperature: 0°C ~ 45°C
• Storage Temperature: -40°C ~ 70°C
• Operating Humidity: 10%~90% RH No condensation
• Storage humidity: 5%~90% RH No condensation
