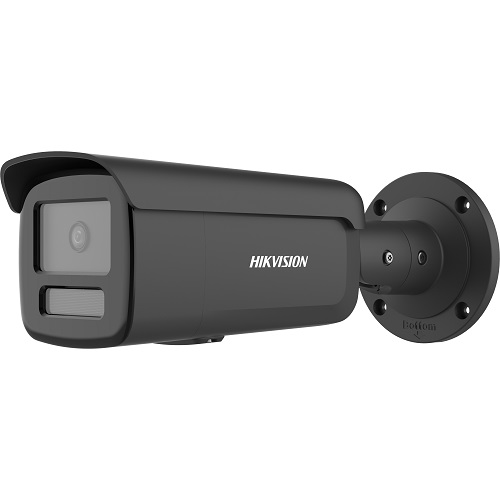

IP kamera Hikvision DS-2CD2T87G2H-LI 2.8mm, juoda

Aprašymas

Modelis: Hikvision Bullet DS-2CD2T87G2H-LIeF, 2.8mm, juodos spalvos
MP (MegaPixel): 8 MP
Objektyvas: 2.8 mm, horizontalus FOV: 105°
Technologija: AcuSense, hybrid Light, ColorVu
Integruotas mikrofonas: Ne, yra mikrofono įvestis
Naktinis pašvietimas: 60 m. IR; 60 m. LED
Vieta microSD talpai: Taip, 512GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67
Vaizdo suspaudimas: H.265+
WiFi: Ne
Laikiklis/bazė (papildomai): DS-1280ZJ-S
Lauko/vidaus: Lauko

Aprašymas:

Kamera
• Sensorius: 1/1.8″ Progressive Scan CMOS
• Maks. rezoliucija: 3840 × 2160
• Min. apšvietimas: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
• Užrakto greitis: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lęšis
• Lęšio tipas: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°
• Lęšio montavimas: M16
• Rainelės tipas: Fixed
• Diafragama: F1.0
• Ryškumo gylis: 2.8 mm: 3.3 m to infinite
DORI: 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m
Apšvietimas
• Papildomo apšviešimo tipas: IR,White Light
• Papildomo apšvietimo diapazonas: Up to 60 m
• Išmanus papildomas apšvietimas: Yes
• IR bangos ilgis: 850 nm
Vaizdas
• Pagrindinis srautas:
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Antrinis srautas:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Trečias srautas:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
• Vaizdo suspaudimas: Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
• Vaizdo bitų greitis: 32 Kbps to 16 Mbps
• H.264 tipas: Baseline Profile, Main Profile, High Profile
• H.265 tipas: Main Profile
• Bitų greičio kontrolė: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Internetas
• Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Tiesioginis vaizdo žiūrėjimas: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user
• Saugumas: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Vidinė atmintis: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Klientas: iVMS-4200, Hik-Connect, Hik-Central
• Naršyklė: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Nuotrauka
• Nuotraukos parametrų keitiklis: yes
• Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Diena/Naktis režimas: Day, Night, Auto, Schedule
• Nuotraukų pagražinimas: BLC, HLC, 3D DNR
• Wide Dynamic Range (WDR): 130 dB
• SNR: > /= 52 dB
• Privatumo kaukė: 4 programmable polygon privacy masks
Sąsaja
• Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Perkrovimo mygtukas: Yes
Funkcijos
• Pagrindinės funkcijos: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Sąsaja: Upload to FTP/ NAS/ memory card, notify surveillance center, trigger recording, trigger capture, send email
• Išmaniosios funkcijos: Scene change detection
Išmaniosios funkcijos
• Veido atpažinimas: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Pagrindinis
• Sistemos parametrai: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W
• Medžiaga: Front cover: Metal, body: Metal, bracket: Metal
• Dydis: 286.7 mm × 93.3 mm × 91.2 mm (11.3″ × 3.7″ × 3.6″)
• Pakuotės dydis: 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
• Svoris: Approx. 1085 g (2.4 lb.)
• Svoris su įpakavimu: Approx. 1639 g (3.6 lb.)
• Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Pagrindinės funkcijos: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
Patvirtinimai
• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
• Saugumas: UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Aplinkosauga: CE-RoHS: 2011/65/EU
• Apsauga: IP67: IEC 60529-2013
