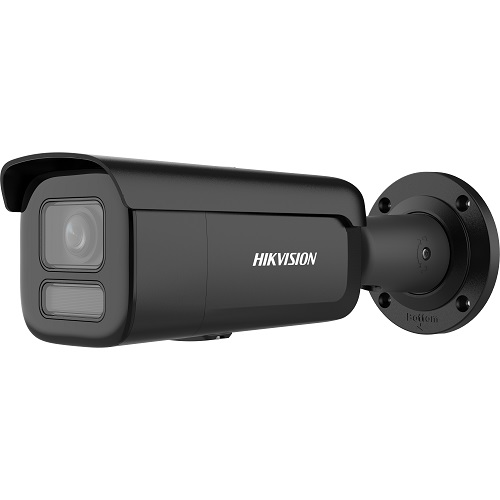

IP kamera Hikvision DS-2CD2647G2HT-LIZS, juoda

Aprašymas

Modelis: DS-2CD2647G2HT-LIZS, 2.8-12mm, Bullet, juodos spalvos
Rezoliucija: 4MP
Objektyvas: 2.8-12 mm, horizontalus FOV: 114.6
Technologija: Hybrid Light
Integruotas mikrofonas: Ne, yra mikrofono įvestis
Naktinis pašvietimas: 60 m. IR; 60 m. LED
Vieta microSD talpai: Taip, 512GB
Darbo sąlygos: -30 °C iki 60 °C
Saugos lygis: IP67
Vaizdo suspaudimas: H.265+
WiFi: Ne
Laikiklis/bazė (papildomai): DS-1280ZJ-S
Lauko/vidaus: Lauko

Aprašymas:

Kamera
• Sensorius: 1/1.8″ Progressive Scan CMOS
• Maks. rezoliucija: 2688 × 1520
• Min. apšvietimas: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light
• Užrakto greitis: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Kampo keitimas: Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lęšis
• Lęšio tipas: Varifocal lens, motorized lens, 2.8 to 12 mm
• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
• Lęšio montavimas: Integrated
• Rainelės tipas: Fixed
• Diafragama: F1.2
• Ryškumo gylis: 1m to infinite
DORI:
Wide: D: 60.0m, O: 23.8 m, R: 12.0 m, I: 6.0 m
Tele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
Apšvietimas
• Papildomo apšviešimo tipas: IR,White Light
• Papildomo apšvietimo diapazonas: Up to 60 m
• Išmanus papildomas apšvietimas: Yes
• IR bangos ilgis: 850 nm
Vaizdas
• Pagrindinis srautas:
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Antrinis srautas:
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Trečias srautas:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
• Vaizdo suspaudimas: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings.
• Vaizdo bitų greitis: 32 Kbps to 8 Mbps
• H.264 tipas: Baseline Profile, Main Profile, High Profile
• H.265 tipas: Main Profile
• Bitų greičio kontrolė: CBR/VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
Garsas
• Garso suspaudimas: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Garso bitų greitis: 64 Kbps (G.711ulaw/ G.711alaw)/ 16 Kbps (G.722.1)/ 16 Kbps (G.726)/ 16 Kbps to 64 Kbps (AAC-LC)/ 32 to 192 Kbps (MP2L2)/ 8 to 320 Kbps (MP3)
• Garso atrankos dažnis: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Pašalinių garsų šalinimas: Yes
Internetas
• Protokolai: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Tiesioginis vaizdo žiūrėjimas: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Saugumas: assword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Vidinė atmintis: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Klientas: iVMS-4200, Hik-Connect, Hik-Central
• Naršyklė: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Nuotrauka
• Nuotraukos parametrų keitiklis: yes
• Nuotraukos nustatymai: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Diena/Naktis režimas: Day, Night, Auto, Schedule
• Nuotraukų pagražinimas: BLC, HLC, 3D DNR
• SNR: > /= 52 dB
• Wide Dynamic Range (WDR): 130 dB
• Privatumo kaukė: 4 programmable polygon privacy masks
Sąsaja
• Interneto sąsaja: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Vidinė atmintis: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB
• Garsas: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KOhm, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium
• Signalizacija: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
• Perkrovimo mygtukas: Yes
Funkcijos
• Pagrindinės funkcijos: Motion detection (human and vehicle targets classification), video tampering alarm, exception
• Išmaniosios funkcijos: Scene change detection
• Sąsaja: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output
Išmaniosios funkcijos
• Veido atpažinimas: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
Pagrindinis
• Sistemos parametrai: 12 VDC ± 25%,1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
• Medžiaga: Front cover: Metal, body: Metal, bracket: Metal
• Dydis: 298 mm × 97.9 mm × 95.7 mm (11.8″ × 3.9″ × 3.8″)
• Pakuotės dydis: 386 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
• Svoris: Approx. 1085 g (2.4 lb.)
• Svoris su įpakavimu: Approx. 1639 g (3.6 lb.)
• Sandėliavimo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Darbo sąlygos: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Kalba: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Pagrindinės funkcijos: Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Patvirtinimai
• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
• Saugumas: UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
• Aplinkosauga: CE-RoHS (2011/65/EU)
• Apsauga: IP67: IEC 60529-2013
