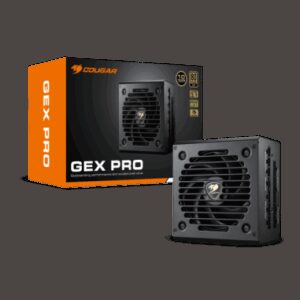

Power Supply Unit Cougar Gaming CGR GEXP-750 650W 80 PLUS Gold
Prekės kodas: @1776160
101,25 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-06*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
Aprašymas
The COUGAR Gaming CGR GEXP-750 power supply unit delivers a total power of 650 W with an 80 PLUS Gold certification, ensuring high efficiency. It features a 20+4 pin ATX motherboard connector, with a cable length of 61 cm, and SATA power cables of varying lengths (400, 520, 640, 760 mm). Designed for PCs, it operates on an AC input voltage of 100 – 240 V and frequency of 50/60 Hz. The active cooling system with a 12 cm fan ensures optimal performance. Compliance with CE, EAC, FCC, RoHS, and UKCA standards guarantees safety and reliability.
Description

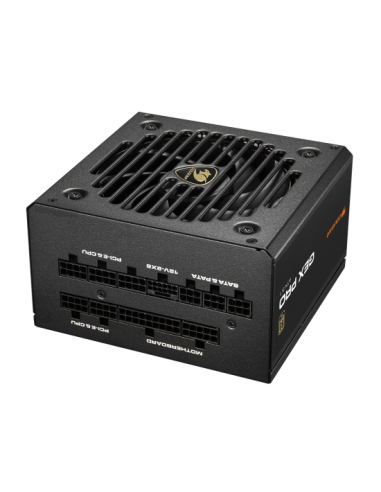

The COUGAR GEX PRO 650/750/850W power supply series delivers high-efficiency, ATX 3.1–compliant power for modern PC builds. With 80 PLUS Gold certification and up to 91% conversion efficiency, the unit supports next-generation graphics cards through a native PCIe 12V-2X6 (12+4 pin) connector and maintains stable power delivery even at 40°C ambient. The fully modular, compact 140 mm design and embossed black cables simplify installation and improve airflow in a wide range of cases.
Advantages
GEX PRO units combine 80 PLUS Gold efficiency with Cybenetics certifications (for selected wattages), advanced HDB 120 mm fan technology for low noise and long lifespan, and tight voltage regulation (±2%) using 105°C Japanese capacitors for reliable operation. The native PCIe 12V-2X6 connector supports PCIe 5.1 graphics cards without adaptors and the PSU passes ATX 3.1 power excursion tests for transient loads.
Suitable for
- Gaming PCs with next-generation PCIe 5.1 graphics cards
- Compact and mid-tower builds requiring a short 140 mm PSU
- Systems where quiet operation and long-term reliability are priorities
- DIY builds that benefit from fully modular cable management
Key specifications
- Total power: 650 W (model CGR GEXP-750 as provided)
- Efficiency: up to 91% — 80 PLUS Gold
- Motherboard connector: 20+4 pin ATX
- PCIe connector: native 12V-2X6 (12+4 pin) for PCIe 5.1 GPUs
- Fan: 120 mm HDB (hydro-dynamic bearing)
- Form factor length: 140 mm (compact, fully modular)
- Operating compliance: ATX 3.1, CE, EAC, FCC, RoHS, UKCA (per manufacturer)
- AC input: 100–240 V, 50/60 Hz
How to use
Install the PSU into your case following standard ATX mounting points and connect only the modular cables required for your configuration. Use the included 20+4 pin ATX cable for the motherboard and the native 12+4 PCIe cable to power supported graphics cards. Before connecting a PCIe 12+4 pin cable to a graphics card, verify the GPU manufacturer’s recommended power requirements on the graphics card website. Route cables to avoid obstructing airflow and secure them with ties or the case’s cable-management features.
Usage recommendations
For optimal performance, operate the power supply in environments up to 40°C and ensure adequate case ventilation. Choose the PSU wattage appropriate for your CPU and GPU power requirements and confirm connector compatibility with your graphics card before installation.
Specifications
Total power:
Efficiency:
Motherboard power connector:
80 PLUS certification:
Fan diameter:
Weight:
Product colour:
All features
Total power:
Efficiency:
Power protection features:
Combined power (+3.3V):
Combined power (+12V):
Combined power (+5V):
Combined power (-12V):
Combined power (+5Vsb):
Max output current (+3.3V):
Max output current (+12V):
Max output current (+5V):
Max output current (-12V):
Max output current (+5Vsb):
Input current:
AC input frequency:
AC input voltage:
Motherboard power connector:
PCI Express connector:
Number of SATA power connectors:
CPU power connector (4+4 pin):
PCI Express power connectors (6+2 pin):
Cabling type:
Number of PATA power connectors:
Motherboard power cable length:
SATA power cable length:
CPU power cable length:
PCI Express power connectors (12+4 pin):
PCI Express power connectors (12+4 pin) cable length:
Purpose:
80 PLUS certification:
Bearing technology:
ATX version:
Power supply unit (PSU) form factor:
Fan diameter:
Number of fans:
Cooling type:
Fan location:
On/off switch:
Product colour:
Compliance certificates:
Weight:
Height:
Width:
Depth:
Operating relative humidity (H-H):
Storage temperature (T-T):
Operating temperature (T-T):
Storage relative humidity (H-H):
Package weight:
Package depth:
Package height:
Package width:
Package type:
