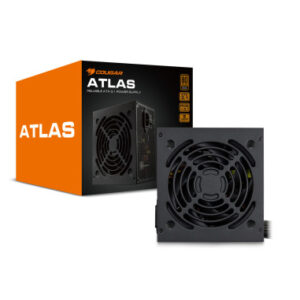

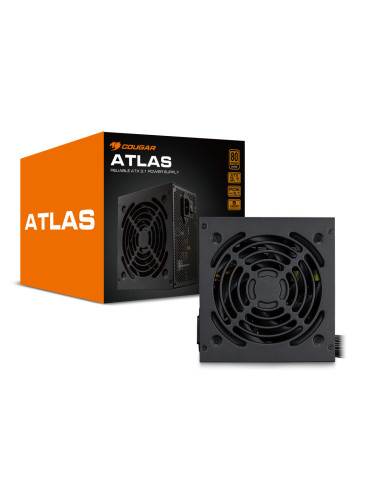

Maitinimo blokas Cougar Atlas 750W ATX / 80 Plus Bronze
Prekės kodas: @1776523
62,90 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-06*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
Aprašymas
The COUGAR Gaming ATLAS 750 power supply unit delivers a total power of 750 W, suitable for PCs and servers. It features a 20+4 pin ATX motherboard power connector with a 55 cm cable and a SATA power cable of 450 mm. With an active cooling system and a 12 cm fan, it ensures efficient heat dissipation. The unit is certified with 80 PLUS Bronze for energy efficiency and complies with various standards including CCC, CE, and RoHS.
Description
The COUGAR Gaming ATLAS 750 power supply unit provides 750 W of continuous power for desktop PCs and small servers. It is 80 PLUS Bronze certified, offering efficient energy conversion and features DC-DC regulation, high-temperature Japanese standby capacitors, and an automatic thermal-controlled 120 mm COUGAR fan. Full-black cables and two CPU connectors simplify tidy installations and compatibility with modern motherboards and CPUs.
Advantages
80 PLUS Bronze certification ensures up to 86% efficiency under standard conditions, reducing power waste. DC-DC technology maintains stable voltages with ±2% variation. High-quality 105°C Japanese standby capacitors increase durability and continuous performance. The 120 mm ultra-silent COUGAR fan with thermal speed control balances cooling and noise. Black sleeved cables and sufficient lengths (ATX 20+4 cable 55 cm, SATA 450 mm) improve cable management.
Suitable for (tasks / use cases)
- Mid-range gaming PCs and workstations requiring up to 750 W
- System builds that prioritize stable voltage and long-term reliability
- PCs where quiet operation and orderly cable routing are important
Key specifications
- Total power: 750 W
- Efficiency: 80 PLUS Bronze (about 86%)
- Motherboard connector: 20+4 pin ATX (cable length 55 cm)
- Fan diameter: 120 mm (thermal-controlled)
- Connectors: includes 2 CPU connectors and SATA power cable (450 mm)
- Product colour: Black
- Weight: 1.83 kg
How to use
Install the COUGAR ATLAS 750 into a compatible PC case following standard PSU mounting procedures and ensure the 20+4 pin ATX and CPU connectors are firmly attached to the motherboard and CPU power headers. Route and secure the black cables for optimal airflow and cable management. Connect storage and peripheral devices using the provided SATA and peripheral connectors. Power on the system and verify stable operation; the fan speed is managed automatically according to internal temperature.
Usage recommendations
Use the ATLAS 750 in systems whose combined component power draw does not exceed 750 W and allow adequate case ventilation. For long-term reliability, avoid extended operation in environments with ambient temperatures beyond typical desktop conditions.
Specifications
Total power:
Efficiency:
Motherboard power connector:
80 PLUS certification:
Fan diameter:
Weight:
Product colour:
All features
Total power:
Efficiency:
Power protection features:
Combined power (+3.3V):
Combined power (+12V):
Combined power (+5V):
Combined power (-12V):
Combined power (+5Vsb):
Max output current (+3.3V):
Max output current (+12V):
Max output current (+5V):
Max output current (-12V):
Max output current (+5Vsb):
Input current:
AC input frequency:
AC input voltage:
Maximum input current (@110V):
Maximum input current (@220V):
Motherboard power connector:
Number of SATA power connectors:
Cabling type:
Number of PATA power connectors:
Motherboard power cable length:
SATA power cable length:
Peripheral (Molex) power cable length:
Purpose:
80 PLUS certification:
Fan diameter:
Number of fans:
Cooling type:
Product colour:
Compliance certificates:
Weight:
Height:
Width:
Depth:
