Thermal Grizzly Intel 1851 Delid-Die-Mate V1
Prekės kodas: 1246158
TG-DDM-I1851-V1
66,10 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas

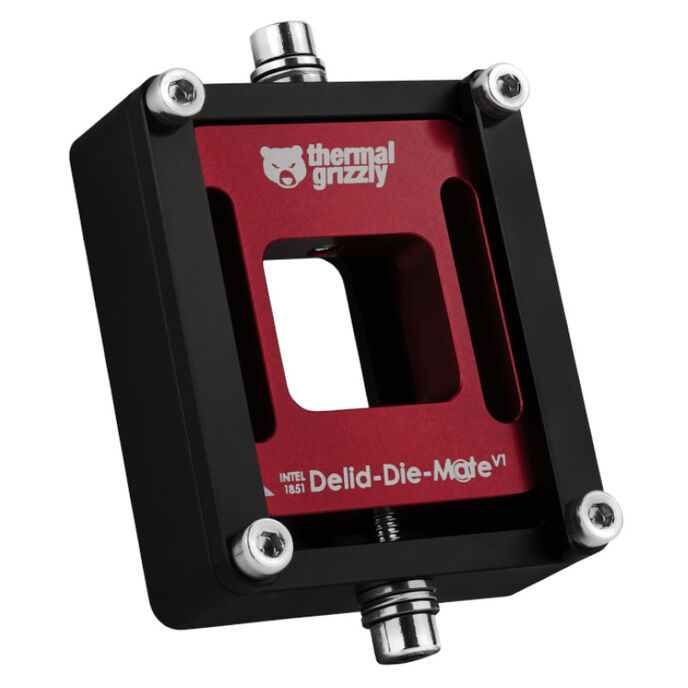

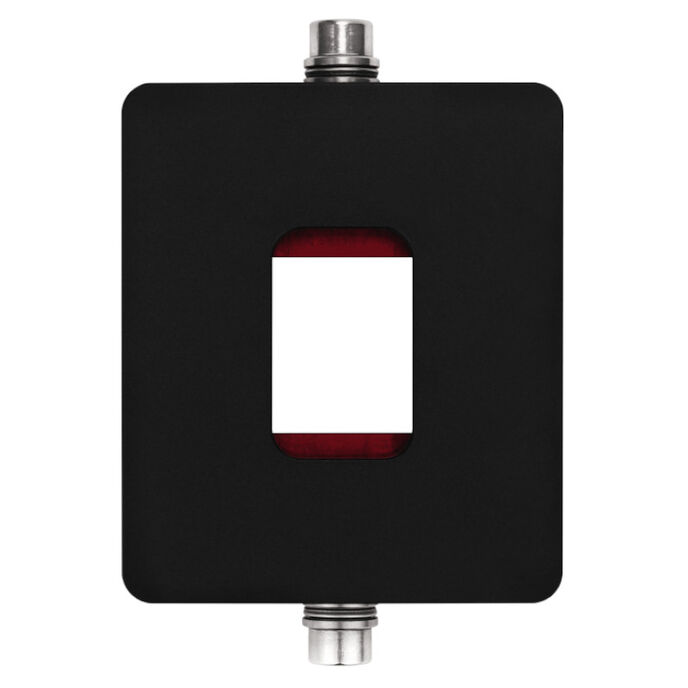

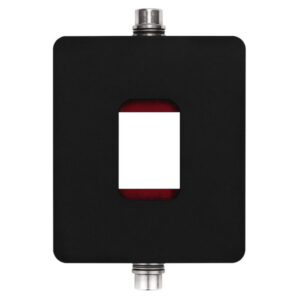

Delidding tool for Intel socket 1851, made of aluminium
- Delidding tool for Intel Core 200 CPUs (Socket LGA 1851)
- Made from black and red aluminium
The Thermal Grizzly Delid-Die-Mate Intel LGA 1851 in Detail
The Delid-Die-Mate Intel LGA 1851 from Thermal Grizzly is a tool for removing the heat spreader („delidding”) on Intel processors from the Intel Core Ultra 200 series. In the so-called „Direct Die” method, the CPU cooler is mounted directly on the processor chip. By omitting the heat spreader in the cooling circuit, a significantly optimised heat transfer from the dies to the CPU cooler is possible.
Why Delidding & Direct Die Method for Intel Processors?
During delidding, or „de-lidding”, the heat spreader of the processor is removed. For non-soldered processors, delidding is generally used to replace the thermal interface material (TIM) between the CPU die and the heat spreader with high-quality thermal paste or liquid metal before remounting the heat spreader. However, since the Intel Core processors of the 200 series are soldered, this is not an option, as removing the indium solder would create too large a gap between the IHS and the CPU dies.
Therefore, the Intel Core CPUs of the 200 series are primarily delidded for the possible mounting of the CPU cooler directly on the CPU dies. By omitting the heat spreader and mounting the CPU cooler directly on the dies, temperatures can typically be reduced by 10-15 °C when using liquid metal such as Conductonaut as TIM.
Colour | |
Primary Colour | Black |
Secondary Colour | Red |
CPU | |
CPU Socket | 1851 |
Display | |
Display Included | No |
Materials | |
Materials | Aluminium |
Lighting | |
Lighting / RGB | No |
