ASUS Prime B650-Plus WiFi pagrindinė plokštė, Sockel AM5, AMD B650, ATX, DDR5
Prekės kodas: 1241547
90MB1KP0-M0EAY0
192,39 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4) and 2x PCIe x1
- Supports max. 192 GB DDR5 RAM up to 7,600 MHz (OC)
- 1x M.2 PCIe 5.0, 1x M.2 PCIe 4.0 and 4x SATA 6G
- 1x USB-C 3.1, 3x USB-A 3.1, 2x USB-A 3.0 and 2x USB-A 2.0 on the I/O panel
- A total of 6x 4-pin PWM connectors

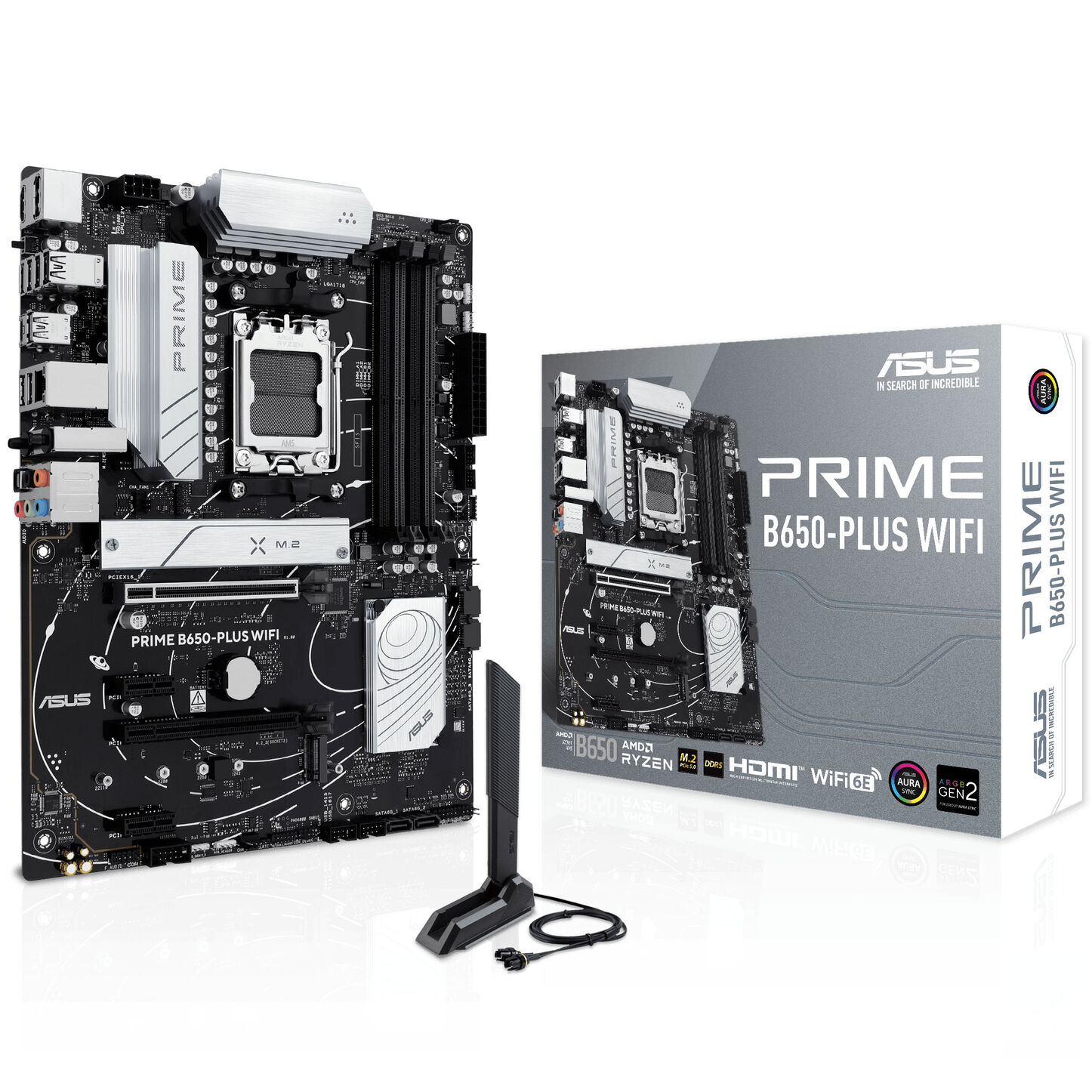

ASUS Prime B650-Plus WiFi: ATX Motherboard with AMD AM5
The ASUS Prime B650-Plus WiFi is equipped with the B650 chipset for AMD’s Ryzen processors of the 7000 and 8000 series and comes with numerous features for overclockers and gamers. As the Ryzen 7000 / 8000 processors require a new socket due to support for PCIe 5.0 and enhanced power delivery, the AM5 socket (LGA 1718) is used on the 600 series motherboards. Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for AM4 sockets to be mounted on the motherboard.
Colour | |
Primary Colour | Black |
Form Factor | |
Motherboard formfactor | ATX |
CPU | |
CPU Manufacturer | AMD |
CPU Socket | AM5 |
Motherboard | |
Motherboard Chipset | AMD B650 |
Memory | |
Max. Memory | 192 GB |
Memory Type | DDR5 |
Memory Form Factor | DIMM |
Max. Memory Speed (Standard) | 5200 MT/s |
Max. Memory Speed (OC) | 7600 MT/s |
EEC Support | Yes |
Memory slots | 4x |
Performance Profile | AMD EXPO |
Wi-Fi & LAN | |
LAN | Yes |
LAN Ports | 1x 2.5 Gbit/s |
Wi-Fi / Bluetooth | Yes |
Wi-Fi Standard | Wi-Fi 6E |
Bluetooth Standard | 5.3 |
Cooling | |
M.2 Heatsinks | Yes |
VRM Heatsinks | Yes |
Water Cooling | |
Watercooling | No |
Internal Ports | |
CPU Power Supply | 1x 8-Pin |
USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
USB 3.0 (internal) Header | 1 |
USB 3.0 (internal) Possible Ports | 2 |
USB 2.0 (internal) Header | 2 |
USB 2.0 (internal) Possible Ports | 4 |
RGB / LED connectors | 1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB) |
Front Panel Audio Header | Yes |
SPI TPM Header | Yes |
External Ports | |
USB 3.1 (external) Type C | 1 |
USB 3.1 (external) Type A | 3 |
USB 3.0 (external) Type A | 2 |
USB 2.0 (external) Type A | 2 |
Display Connectors | Display Port (1x), HDMI (1x) |
Storage Ports | |
M.2 PCIe 4.0 x4 | 1 |
M.2 PCIe 5.0 x4 | 1 |
SATA 6G (internal) | 4 |
Back Connect | |
Back Connect | No |
Expansion Slots | |
PCIe x16 slots (total) | 1 |
PCIe x4 slots (total) | 1 |
PCIe x1 slots (total) | 2 |
PCIe 4.0 x16 mechanical slot | 2 |
PCIe 4.0 x1 mechanical slot | 2 |
Fan Header | |
4 Pin Fan Connectors | 6 |
Lighting | |
Lighting / RGB | Yes |
