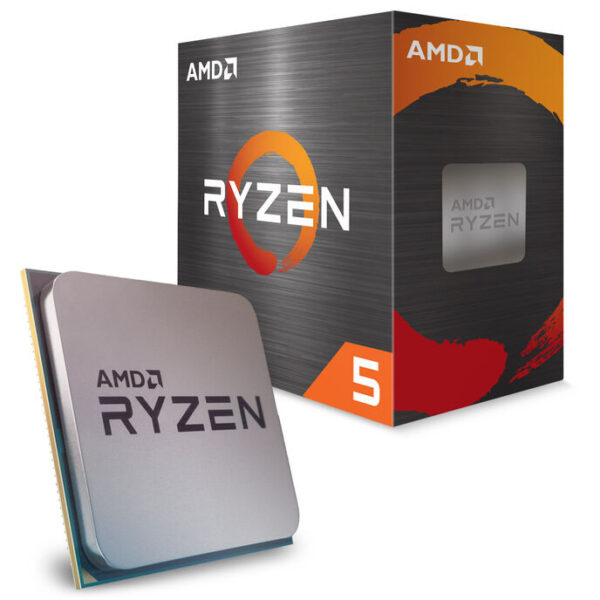

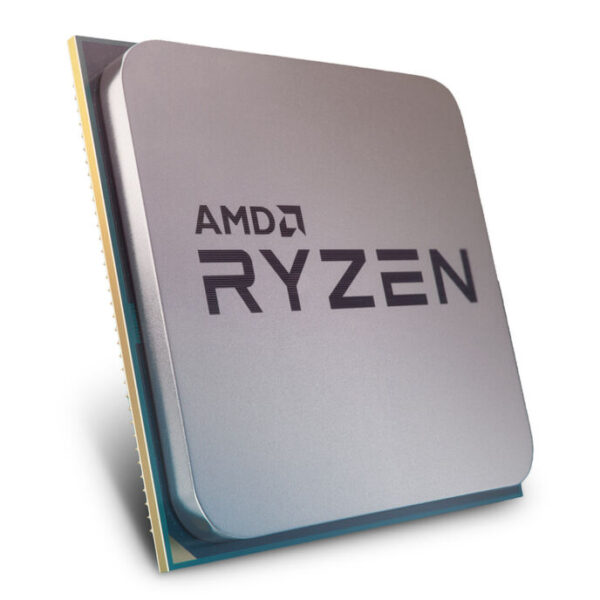

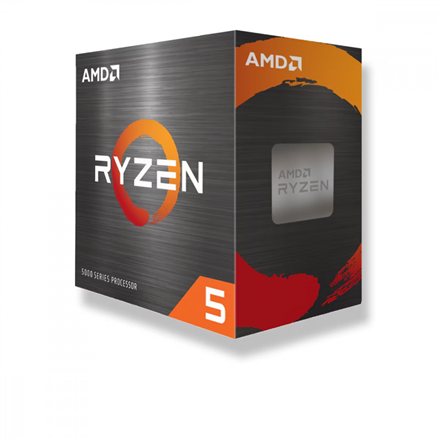

AMD Ryzen 5 5600XT CPU, 6 Cores, 4.7 GHz, AM4 (Vermeer) – Boxed with AMD Wraith Stealth Cooler

The AMD Ryzen 5 5600XT is part of the Vermeer family, based on the „Zen 3” architecture that offers high efficiency and performance. The processor features 6 cores and 12 threads, delivering a base clock speed of 3.8 GHz, which boosts up to 4.7 GHz in turbo mode. With 32 MB L3 cache and a TDP of 65 W, the 5600XT ensures stable performance for applications and gaming alike. Thanks to the Zen 3 architecture, each core has direct access to the entire L3 cache, providing noticeable performance gains in gaming. The 5600XT is also an economical option if you want to continue using the proven AM4 ecosystem while enjoying solid gaming performance.

Paired with an AMD X570 or B550 chipset, the AMD Ryzen 5 5600XT supports the PCI-Express 4.0 standard, which is twice as fast as PCIe 3.0. All Ryzen 5000 processors utilise the proven AM4 platform and are designed for use with compatible AMD chipsets. An update to BIOS version AGESA 1.0.8.0 or later is required.

The AMD Ryzen 5 5600XT at a Glance:

• 6 „Zen 3” cores with only 65 watts thermal design power (TDP)
• 12 threads thanks to simultaneous multithreading (SMT)
• Very high single- and multi-thread performance
• Base clock of 3.8 GHz & 4.7 GHz turbo with Precision Boost 2
• Extremely fast PCI-Express 4.0 interface (only with AMD X570 or B550)
• Auto-overclocking Precision Boost Overdrive (only with AMD X570 or B550)
• Unlocked multiplier for manual overclocking
• Large cache memory: 3 MB L2 & 32 MB L3
• Highly efficient non-planar 7-nanometre FinFET transistors
• AVX2 instruction set extension for complex vector calculations
• Two AES units for fast, reliable data encryption
• Compatible with the AMD AM4 processor socket
• Supports native DDR4 RAM at 3,200 MHz (dual-channel)
• Includes AMD Wraith Stealth CPU cooler!

The AMD Ryzen 5 5600XT 6-Core CPU with 4.7 GHz Precision Boost 2

The AMD Ryzen 5 5600XT has six physical CPU cores that, thanks to simultaneous multithreading (SMT), can process two threads simultaneously, effectively doubling the core count to 12 with an additional six virtual cores. This mid-range six-core model operates at a high base clock of 3.8 GHz per core, which adjusts in real-time via Precision Boost 2 to match the application needs and boosts up to 4.7 GHz turbo within a thermal design power (TDP) of 65 watts.

The CPU core silicon is manufactured using the advanced 7 nm FinFET process with stacked transistors (also called 3D transistors) using extreme ultraviolet lithography (EUV). The space saved on the processor die due to reduced feature sizes enables the integration of a total of 3 MB Level 2 cache and an impressive 32 MB Level 3 cache, which is particularly important for gaming.

The I/O chiplet in the CPU package, responsible for data lines, is produced using the 12-nanometre FinFET process and provides 24 PCIe lanes, of which four are reserved for the mainboard chipset connection and four for NVMe SSDs. This leaves 16 lanes for GPU communication, with additional PCIe lanes available for storage, expansion cards, and peripherals, depending on the motherboard chipset.

PCI-Express 4.0 with AMD X570 or B550 Chipset

In combination with an AMD X570 or B550 high-end chipset, the AMD Ryzen 5 5600XT supports PCI-Express 4.0. PCIe 4.0 is backward-compatible with all previous-generation expansion cards. Each PCIe 4.0 lane provides double the data transfer rate compared to PCIe 3.0, enabling NVMe SSDs connected via four PCIe 4.0 lanes to achieve theoretical read/write speeds of up to 7.8 GB/s.

The AM4 platform also supports modern external device connections like USB 3.1 Gen 2 with Type-A and/or Type-C ports, offering high data transfer rates of up to 10 Gbit/s. The CPU’s integrated memory controller supports fast and energy-efficient DDR4 memory in dual-channel mode with or without ECC error correction, natively clocked at 3,200 MHz, with significantly higher clock rates possible through overclocking.

Automatic Overclocking with Precision Boost Overdrive

With AMD Zen 3, overclocking is no longer a headache, as the CPU manages it automatically. The AMD Ryzen 5 5600XT is equipped with the auto-OC feature Precision Boost Overdrive, which can increase the processor clock beyond the factory-set maximum boost if used with an AMD X570 or B550 motherboard and adequate CPU cooling.

High-end motherboards with AMD X570 or B550 chipsets typically have additional voltage regulators (VRMs), enabling the Ryzen 5 processor to communicate with the X570 chipset, potentially utilising unused power reserves from the motherboard to independently increase clock speeds depending on CPU temperatures.

Unlocked CPU: Manual Overclocking with an Unlocked Multiplier

Notes: PCI-Express 4.0 and Precision Boost Overdrive require an AM4 motherboard with AMD X570 or B550 chipset and BIOS update AGESA 1.0.8.0.
