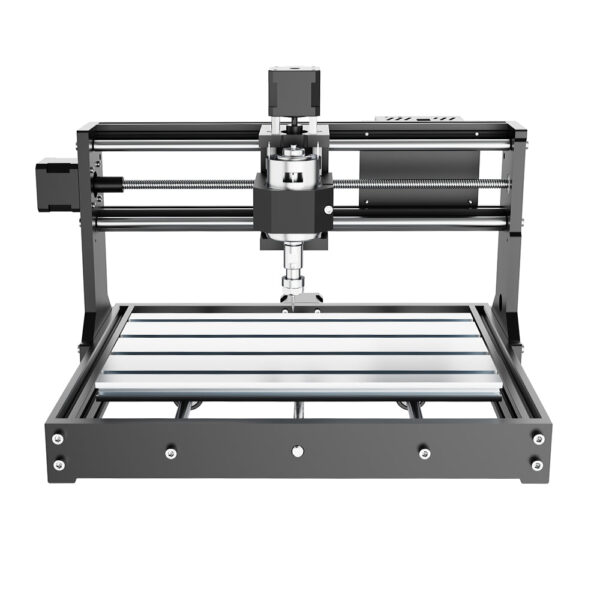

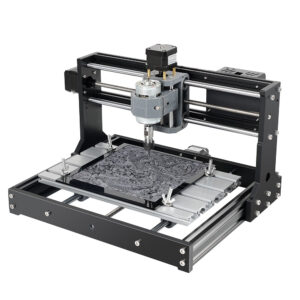

TwoTrees TTC3018S CNC Machine

Aprašymas

The TwoTrees TTC3018S is a compact and versatile CNC machine that combines high precision with user-friendly operation. Its sturdy construction and compatibility with various soft materials make it ideal for beginners and experienced users alike, whether for crafting, prototyping, or small-scale production.

Key Features

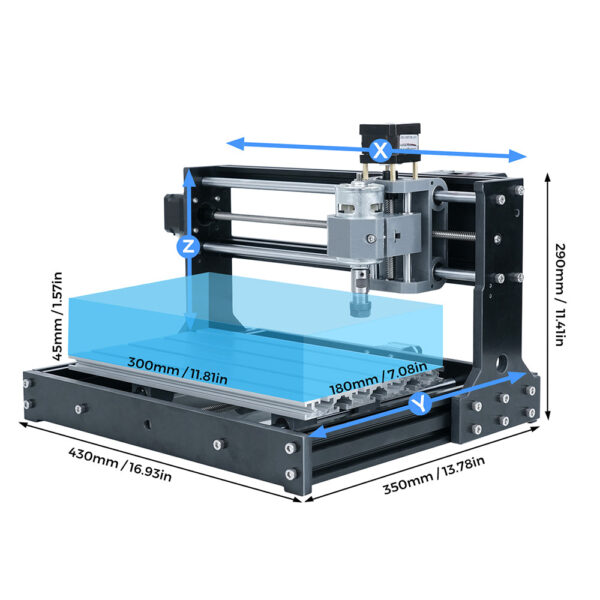

• Working area: 300 × 180 × 40 mm
• Compatible with soft materials such as wood, plastic, acrylic, PVC, and PCB
• Control software: Candle (compatible with Windows XP/7/8/10 and Linux)
• Rigid frame with pre-threaded mounting holes for easy assembly
• Equipped with emergency stop switch and safety cover
• Optional laser engraving module available separately

Precision and Stability in a Compact Format

The TTC3018S features a 775 spindle motor capable of speeds up to 8000 rpm, delivering detailed engraving and cutting performance. The machine uses a coupling and double-nut design that ensures stability, reduces vibrations, and maintains tight machining tolerances throughout the job.

User-Friendly Assembly and Interface

The aluminum profile frame includes pre-threaded holes that eliminate the need for T-nuts, simplifying the assembly process. The semi-assembled kit, along with clear instructions, allows for a smooth setup even for first-time users. Candle software provides an intuitive interface for real-time control and monitoring of operations.

Material Versatility for a Wide Range of Projects

Designed for engraving and milling soft materials, the TTC3018S handles wood, acrylic, PVC, plastic, and PCB with ease. It’s an excellent choice for making signage, circuit boards, prototypes, and custom parts. For expanded capability, users can upgrade the machine with a compatible laser module (sold separately).

Safety and Reliability Built In

For enhanced safety, the machine includes a protective shield over the spindle area and an emergency stop switch, allowing users to halt operations instantly if needed. Its robust build and reliable components ensure consistent performance and long-term durability.
