Thrustmaster Raceline LC Upgrade for PC and Thrustmaster Racing Wheels (4060385)

Aprašymas

Professional Thrustmaster Load Cell upgrade for the Thrustmaster Raceline pedal set.

The Thrustmaster Raceline LC Upgrade is a complete upgrade package designed to transform your Raceline pedal set into the advanced Raceline Pedals III LC configuration.
It includes a new brake pedal with Load Cell sensor, metal pedal heads, adjustable springs and a complete set of wiring for connection.
Load Cell technology measures pressure instead of pedal movement, which delivers significantly more realistic and precise braking in racing.
Thanks to the fully modular metal construction, the pedals can be customized in detail to each rider’s style.

• Load Cell brake pedal with a load capacity of up to 100 kg
• 24-bit sensor resolution
• Complete upgrade for Raceline pedals
• 3 springs and elastomer damper
• Adjustable pressure force 25-100 kg
• Metal construction
• Modular pedal configuration
• Advanced settings via software
• USB, RJ45 and RJ12 connections
• Compatible with PC and Thrustmaster steering wheels


LOAD CELL BRAKE WITH HIGH PRECISION
The brake pedal uses a modern Load Cell sensor with a maximum force of up to 100 kg.
24-bit resolution allows for extremely sensitive registration of every gram of pressure during braking.
Pressure measurement technology instead of movement brings more realistic response and better control of the car.
The brake operates in an angle range of 11° for precise dosing of the braking effect.

EXTENSIVE ADJUSTMENT OPTIONS
The upgrade kit includes 3 springs and 1 elastomer damper for various brake resistance configurations.
The downforce can be adjusted from 25-100 kg without the need for tools.
There is also a fine-tuning knob in ±5 kg increments.
Advanced settings for response, dead zone and curves can be made via the My Thrustmaster Panel software or the T598 Race Dash display.

MODULAR METAL CONSTRUCTION
The kit includes a metal top plate for a three-pedal configuration as well as metal throttle and clutch pedal heads.
The user can adjust the distance between the pedals and their height according to their preferences.
The pedals are suitable for use on a table, racing stand or in the cockpit.
Anti-slip pads ensure better stability on various types of surfaces.

WIDE COMPATIBILITY
The pedals support direct USB connection to a PC.
Compatibility with Thrustmaster Force Feedback wheels is ensured via the included 3.5 mm jack to RJ12 cable.
Advanced settings can be used via the T598 Race Dash via the RJ45 connector.
The upgrade is compatible with multiple Thrustmaster racing bases.

TECHNICAL SPECIFICATIONS

Model: Raceline LC Upgrade WW
Product number: 4060385
Brake sensor type: Load Cell
Maximum brake pressure: 100 kg
Sensor resolution: 24bit
Pressure adjustment: 25–100 kg
Construction: metal
Connection: USB-C, RJ45, RJ12
Compatibility: PC and Thrustmaster racing wheels

COMPATIBILITY

• PC
• Thrustmaster T128 (X and P)
• Thrustmaster T248 (X and P)
• Thrustmaster TX
• Thrustmaster T300
• Thrustmaster T-GT
• Thrustmaster T-GT II
• Thrustmaster TS-XW
• Wheel Stand Pro
• racing cockpits

Note: Wheel Stand Pro and cockpit are not included.

DIMENSIONS AND WEIGHT

Product: 350 × 360 × 210 mm/ 2320 g
Package: 410 × 255 × 128 mm/ 3100 g

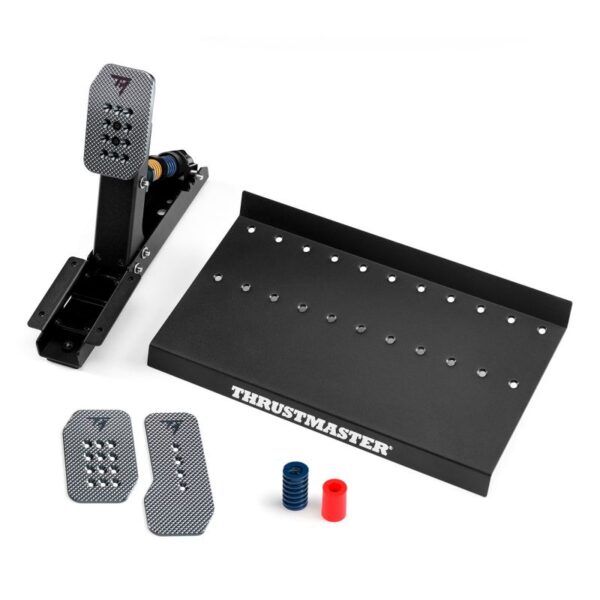

PACKAGE CONTENTS

• Brake Pedal LC
• Carpet Grip anti-slip pad
• Metal top plate for 3 pedals
• Metal accelerator pedal head
• Metal clutch pedal head
• Clutch spring
• 2× 2.5 mm jack to 3.5 mm jack cable between pedals
• RJ45 pedal set cable
• 3.5 mm jack (3) to RJ12 cable
• USB-C pedal set cable
• Torx key for pedal adjustment
• Warranty information
• Instruction leaflet
