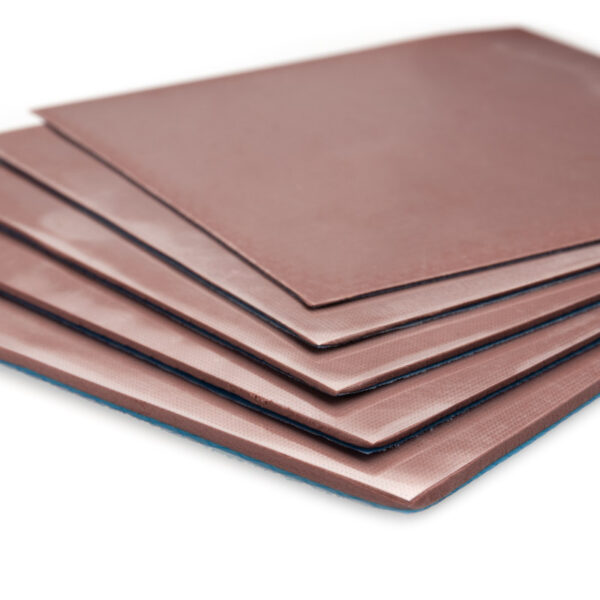

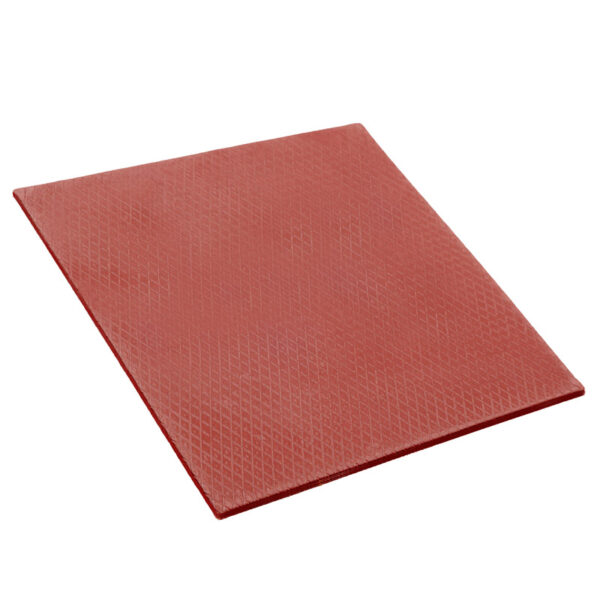

Thermal Grizzly Minus Pad Extreme – 100 × 100 × 2 mm
Prekės kodas: @1236055
TG-MPE-100-100-20-R
113,82 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-02*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
This allows for an ideal surface design with maximum possible compression. The thermal conductivity has been improved by approximately 260% compared to the Minus Pad 8, which enables the best performance for challenging cooling processes such as voltage regulators and memory ICs.
The Minus Pad Extreme is available in various sizes and thicknesses – here 100 x 100 x 2 mm. The pads already perform excellently with very low contact pressure, and the thermal conductivity is only slightly affected by the thickness. The choice of thickness should therefore depend entirely on the gap to be bridged. The Minus Pad Extreme is electrically insulating. Due to its consistency, only single-use is recommended.
Attention! This product comes with a protective film that must be removed before installation. We do not accept liability for damage caused by incorrect or improper installation and misuse!
Technical Details:
- Dimensions: 100 x 100 x 2 mm
- Quantity: 1
- Density: 3.38 g/cm³
- Hardness: 65 Shore 00
- Dielectric strength: 8 KV/mm ASTM D149
- Operating temperature: -100 to +250 °C
- Flammability: V-0
- Colour: Rust brown
|
Colour
|
|
|
Primary Colour
|
Brown
|
|
Secondary Colour
|
Blue
|
|
Dimensions
|
|
|
Length / Depth
|
100 mm
|
|
Width
|
100 mm
|
|
Height
|
2 mm
|
|
Thermal Specifications
|
|
|
Min. Operating Temperature
|
-100 °C
|
|
Max. Operating Temperature
|
250 °C
|
|
Density
|
3.38 g/cm³
|
