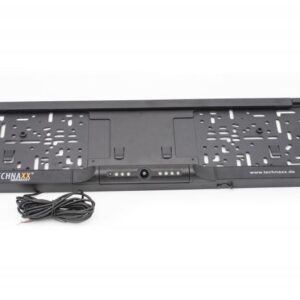

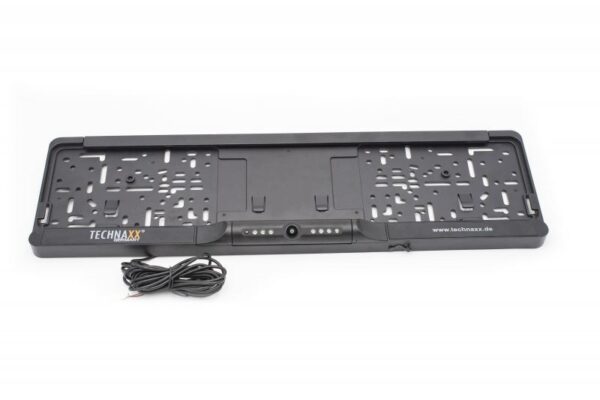

Technaxx Wireless Rear Camera System (TX-170)

Aprašymas

Inconspicuous reversing camera in license plate holder, suitable for most vehicles as assistance for reverse parking

• Wireless video transmission up to 15m
• IR LED for night vision ~2m
• Adjustable camera alignments & 135° viewing angle
• IP67 camera protection class
• (dustproof & protection against temporary immersion)
• 4.3″ (10.9cm) TFT LCD monitor with 480×272 pixel
• License plate holder suitable for single-line registration (52x11cm)

Technical specifications of license plate with camera and wireless module
Image sensor: 1MP CMOS
Camera resolution / fps: 640×480 pixel / 30
Viewing angle: 135° (V90° / D165°)
Min. illumination: 0.5Lux / automatic white balance
IR night vision distance: ~2m
Power supply: DC12-24V
Power wire length: approx. 2.6m
Transmission frequency: 2.400-2485.5MHz
Transmission distance: ~15m open space (no interferences)
Max. radiated output power: 200mW
Operating temperature: -10°C up to +60°C
Weight / Dimensions: 560g / (L) 52.9 x (W) 3.5 x (H) 15.0cm

Technical specifications of monitor
Display / Resolution: LCD Color 10.9cm (4.3”) / 480×272 pixel
Transmission frequency: 2400-2485.5MHz
Input voltage: DC9V/1A / DC5V/2.1A
Power adapter cable length: approx. 3.5m
Operating temperature: -10°C up to +50°C
Weight / Dimensions: 107g / (L) 11.7 x (W) 3.5 x (H) 8.8cm

Package contents
Wireless Rear Camera System TX-170:
1x License plate holder with camera and wireless module,
1x Monitor, 1x Suction cup holder, 1x stand with adhesive,
1x monitor power adapter for cigarette lighter socket,
Mounting material, User Manual
