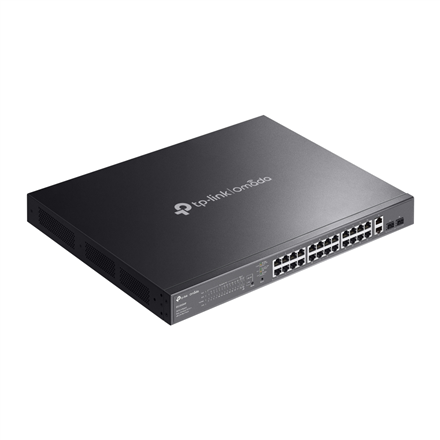

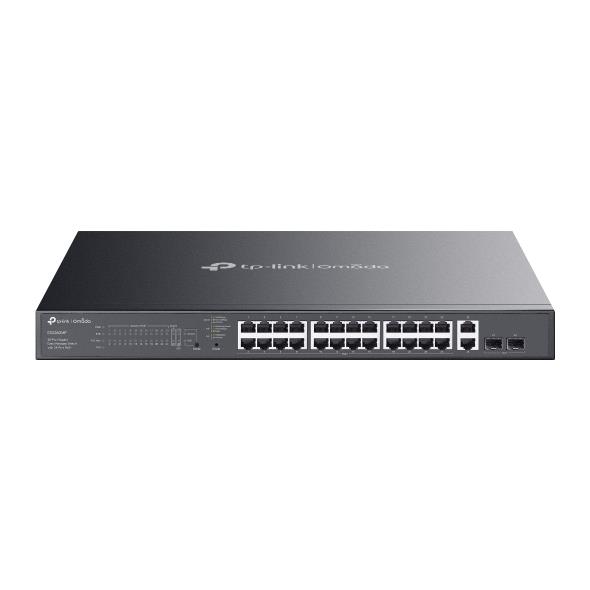

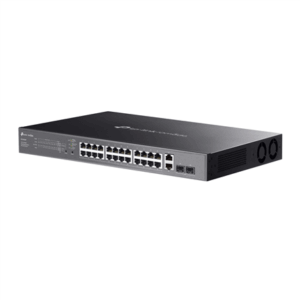

Switch|TP-LINK|Omada|SG2428P|Type L2+|384 Watts|ES228GMP

Prekės kodas: @1963988

0 out of 5

( Atsiliepimų dar nėra. )

296,05 €

Užsakomoji prekė.

Numatoma atsiėmimo*/išsiuntimo** data:

2026-03-18

*atsiėmimo taške Ozo g. 20, Vilnius

**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo

PRATĘSTA GARANTIJA

Aprašymas
Atsiliepimai (0)

Aprašymas

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

26× 10/100/1000Mbps RJ45 ports (24× 802.3af/at-compliant PoE+)
2× Gigabit SFP port
384W Power Budget, with up to 30W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Up to 250m PoE, QoS△, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
Automatic Loop Prevention, VLAN, and IGMP Snooping
Durable metal casing and rack-mountable design

Specifikacija

Summary	TP-Link Omada ES228GMP. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i,…. Power over Ethernet (PoE). Rack mounting
Vendor Homepage	https://www.omadanetworks.com/en/business-networking/omada-switch-agile/es228gmp/
Category Code	SWI
CnCode	85176200
Unit Box Height	0.47
Unit Box Length	0.53
Unit Box Width	0.1
Cloud-managed	Yes
Quality of Service (QoS) support	Yes
Switch layer	L2
Switch type	Managed
Unified static configuration	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	26
SFP module slots quantity	2
10G support	No
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
Copper ethernet cabling technology	1000BASE-T/1000BASE-X/100BASE-X/10BASE-T
Ethernet LAN data rates	10,100,1000
Fast leave	Yes
Flow control support	Yes
Link aggregation	Yes
Networking standards	IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs	32
Port mirroring	Yes
Virtual LAN features	MTU VLAN/Port-based VLAN/Tagged VLAN
VLAN support	Yes
Forwarding rate	41.66
Jumbo frames	15000
Jumbo frames support	Yes
MAC address table	8000
Packet buffer memory	4
Store-and-forward	Yes
Switching capacity	56
DHCP features	DHCP client
IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)
Multicast support	Yes
Housing material	Metal
LED indicators	Yes
Number of fans	2
Product colour	Black
Rack mounting	Yes
Fanless	No
Firmware upgradeable	Yes
Flash memory	64
Mean time between failures (MTBF)	224143
Noise level	46.2
AC input frequency	50/60
AC input voltage	100 – 240
Power consumption (max)	454.8
Power source	AC
Power supply included	Yes
Surge protection	Yes
Surge protection voltage	6
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) power per port	30
Power over Ethernet (PoE) type supported	PoE+
Power over Ethernet plus (PoE+) ports quantity	24
Total Power over Ethernet (PoE) budget	384
Heat dissipation	1546.15
Operating relative humidity (H-H)	10 – 90
Operating temperature (T-T)	-5 – 45
Storage relative humidity (H-H)	5 – 90
Storage temperature (T-T)	-40 – 70
Depth	330
Height	44
Width	440
Cables included	AC
Manual	Yes
Quick start guide	Yes
Rack mount kit	Yes
Certification	FCC, CE, RoHS
Compliance certificates	CE/Federal Communications Commission (FCC)/RoHS
Series	Omada
Model name	SG2428P
Units per Shipping Box	1
Unit Calculated Volume	0.02491
Unit Calculated Weight	6.125
