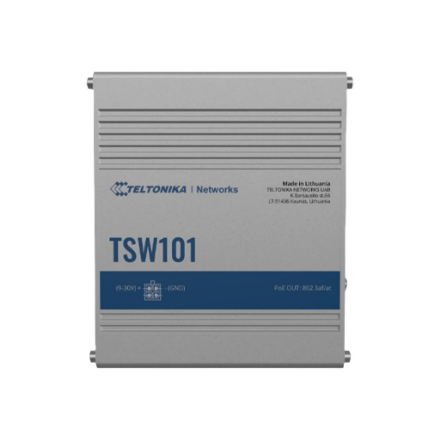

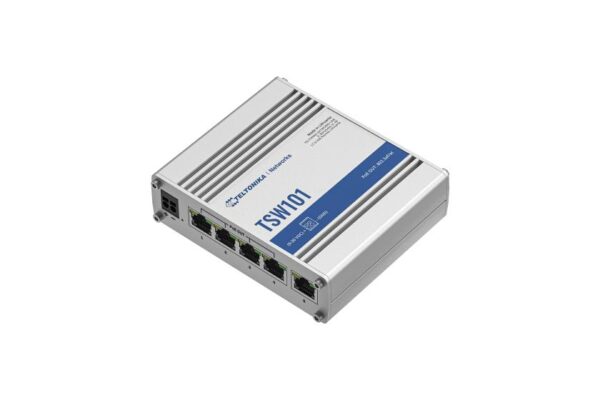

Switch|TELTONIKA|TSW101000000|PoE ports 4|60 Watts|TSW101
Prekės kodas: @1961104
63,12 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
AUTOMOTIVE POE+ SWITCH
Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
Specifikacija
| Summary | Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Power connector: Terminal block (2-pin). Power over Ethernet (PoE) |
| Vendor Homepage | https://teltonika-networks.com/products/switches/tsw101 |
| Category Code | SWI |
| CnCode | 85176200 |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.035 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | Terminal block (2-pin) |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 |
| Switching capacity | 10 |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Power/Status |
| Product colour | Metallic |
| Input voltage | 9 – 30 |
| Power consumption (max) | 2.31 |
| Power consumption (typical) | 0.64 |
| Power source | DC |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Total Power over Ethernet (PoE) budget | 120 |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | -40 – 75 |
| Depth | 32 |
| Height | 95 |
| Weight | 354 |
| Width | 115 |
| Certification | CE, REACH, RoHS, WEEE
TSW101 CE TSW101 UKCA TSW101 FCC TSW101 IC TSW101 CB TSW101 RCM E-Mark |
| Harmonized System (HS) code | 851762 |
| Model | TSW101 |
| Model name | TSW101000000 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0008925 |
| Unit Calculated Weight | 0.44 |
