Switch|DAHUA|PoE ports 4|60 Watts|SF1005P
30,22 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-17*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

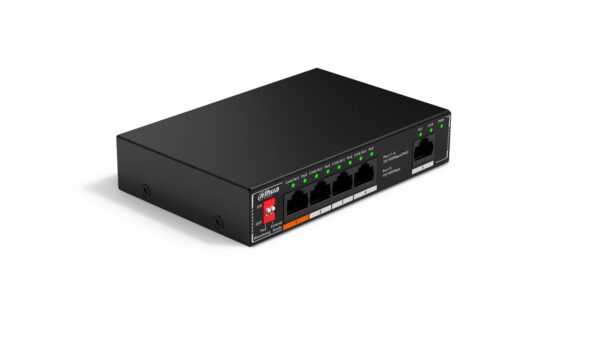

DH-SF1005P is an unmanaged desktop switch with 4 × 10/100 Mbps PoE Ports. It provides 4 × 10/100 Mbps Ethernet ports and 1 × 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On and Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The 8-pin Ethernet port supports power supply, to enhance front-end and rear-end compatibility.
Reduce cable loss and promote loading capacity.
- Intelligent PoE
- Hi-PoE 60W (orange port)
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- Wide working temperature
Specifikacija
| Summary | Dahua Technology PoE SF1005P. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 – 57 V. Power over Ethernet (PoE). Wall mountable |
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/PoE-Switch/SF1005P |
| Category Code | SWI |
| CnCode | 85176200 |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.24 |
| Switch layer | L2 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 5 |
| Uplink ports quantity | 1 |
| 10G support | No |
| Cable types supported | Cat5e/Cat6 |
| Copper ethernet cabling technology | 100BASE-TX/10BASE-T |
| Ethernet LAN data rates | 10,100 |
| Flow control support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 0.744 |
| Packet buffer memory | 0.125 |
| Switching capacity | 1.8 |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | No |
| Wall mountable | Yes |
| DC input voltage | 48 – 57 |
| Power consumption (max) | 60 |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 60 |
| Operating relative humidity (H-H) | 5 – 95 |
| Operating temperature (T-T) | -10 – 55 |
| Depth | 85 |
| Height | 26 |
| Weight | 300 |
| Width | 130 |
| Model | SF1005P |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005184 |
| Unit Calculated Weight | 0.94 |
