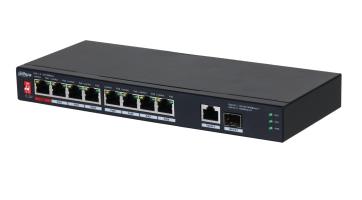

Switch|DAHUA|PFS3110-8ET1GT1GF-96|Desktop/pedestal|8x10Base-T / 100Base-TX|1x10Base-T / 100Base-TX / 1000Base-T|2x1000Base-T|PoE ports 8|96 Watts|DH-PFS3110-8ET1GT1GF-96
78,82 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
Intelligent PoEP
rovides power consumption control and real-time monitoring toguarantee priority of power supply for important ports and preventmalfunctioning caused by power consumption change. Supports ultrawide power supply, able to adapt to IPC power fluctuation.
Red Port 90 W
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoEstandards, with a maximum output power consumption of 90W perport. Suitable for powering high-power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switchedon by dialing/turning on the WEB page switch. It enables the switch toautomatically detect port status and restart the failed ports to recoverconnection in case of IPC connection exception. This enables intelligentoperation and maintenance management in its true sense andeffectively reduces manual maintenance costs.
Long Distance PoEB
y dialing or enabling long-range transmission on the WEB interface,the transmission distance of a PoE port can be up to 250 m, meeting therequirement of wired transmission (bandwidth reduced to 10 Mbps).
- 100 Mbps PoE ports and gigabit uplink ports
- The red port meets the IEEE 802.3bt standard
- Power supply supports up to 90 W
- PoE watchdog monitors the status of terminals in real-time
- Supports 250 m long-distance power supply
- Supports the power management policy
- 8-pin PoE offers better compatibility and reduces cable loss
- Durable full-metal housing provides great heat dissipation
Specifikacija
| Summary | Dahua Technology PoE PFS3110-8ET1GT1GF-96. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53 V. Power over Ethernet (PoE) |
| Vendor Homepage | https://www.dahuasecurity.com/search/products?keyword=DH-PFS3110-8ET1GT1GF-96 |
| Category Code | SWI |
| CnCode | 85176200 |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.285 |
| Unit Box Width | 0.24 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 1 |
| 10G support | No |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x |
| Forwarding rate | 4.17 |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 8000 |
| Packet buffer memory | 0.5 |
| Switching capacity | 5.6 |
| Housing material | Metal |
| Product colour | Black |
| DC input voltage | 53 |
| Input current | 1.81 |
| Power consumption (max) | 96 |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 96 |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | -10 – 55 |
| Storage relative humidity (H-H) | 5 – 95 |
| Storage temperature (T-T) | -40 – 70 |
| Depth | 105 |
| Height | 28 |
| Weight | 650 |
| Width | 240 |
| Package depth | 239 |
| Package height | 89 |
| Package weight | 1400 |
| Package width | 279 |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Model name | PFS3110-8ET1GT1GF-96 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006156 |
| Unit Calculated Weight | 1.38 |
