Submersible fuel pump diam. 50mm 24V with strainer

Aprašymas

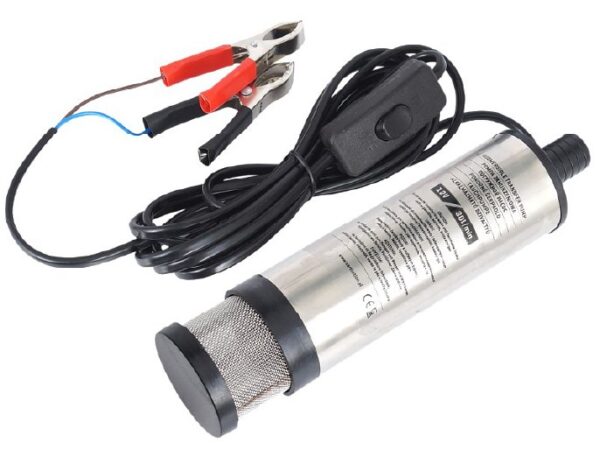

A 12V submersible pump with a diam. of O50 mm is designed for pumping diesel oil, heating oil and other liquids of similar density. Very handy and convenient to use. A special filter made of metal mesh at the pump inlet (bottom) prevents suction of elements that may damage Device and contaminate the liquid. The throughput is approx. 15L / min when powered by 24V DC. Usage: The temperature of the pumped liquid should not exceed 30 ° C, and the maximum ambient temperature should not be higher than 40 ° C.
Use:
Connect a hose with an inner diam. of 16 mm (max. length 3 m) to the pump and fix it firmly with a hose clamp.
Immerse the pump in the liquid.
Connect the red clamp to the positive „+” pole and the black clamp to the negative „-” pole.
Start the pump with the switch on the cable.
After 30 minutes of continuous operation, turn off the pump and wait 15-20 minutes . Restart after it is completely cool.
Make sure the pump is completely empty and free from liquid after pumping.
Clean the filter if necessary.

Important safety rules:

Do not use the pump to pump alcohol and other flammable liquids, such as: gasoline, solvents, acids, gas.
Do not start the pump before connecting the hose.
Do not change the anode and cathode connections on the battery terminals.
Never go near the pump with a fire source.
