Submersible fuel pump diam. 38 mm 24V with strainer

Aprašymas

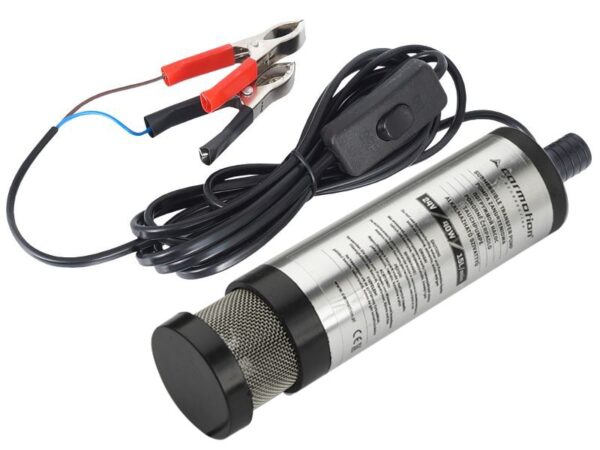

24V submersible pump with a diam. of O38 mm for pumping diesel oil, heating oil and other liquids of similar density. due to the reduced diam., it is very handy and convenient to use when pumping liquids in cars, tractors, construction machines, combines, boats, etc. A special filter made of metal mesh at the pump inlet (at the bottom) prevents suction of elements that can damage Device and liquid contamination. The throughput is approx. 15L / min when powered by 24V DC. Usage: The temperature of the pumped liquid should not exceed 30 ° C, and the maximum ambient temperature should not be higher than 40 ° C.
Use: Connect a hose with an inner diam. of 16 mm (max. length 3 m) to the pump and fix it firmly with a hose clamp.
Immerse the pump in the liquid.
Connect the red clamp to the positive „+” pole and the black clamp to the negative „-” pole.
Start the pump with the switch on the cable
After 30 minutes of continuous operation, turn off the pump and wait 15-20 minutes . Restart after it is completely cool.
Make sure the pump is completely empty and free from liquid after pumping.
Clean the filter if necessary.

Important safety rules:

Do not use the pump to pump alcohol and other flammable liquids, such as: gasoline, solvents, acids, gas.
Do not start the pump before connecting the hose.
Do not change the anode and cathode connections on the battery terminals.
Never go near the pump with a fire source.
