Name: Sonoff WS01STPF-E Traditional Wall Outlet (Type F)
Brand: Sonoff
SKU: 6979033600195
Availability: InStock

NAUJIENA!

Sonoff WS01STPF-E Traditional Wall Outlet (Type F) - Image 1

Sonoff WS01STPF-E Traditional Wall Outlet (Type F) - Image 2

Sonoff WS01STPF-E Traditional Wall Outlet (Type F)

Prekės kodas: @2215302

0 out of 5

( Atsiliepimų dar nėra. )

6,62 €

Užsakomoji prekė.

Numatoma atsiėmimo*/išsiuntimo** data:

2026-03-27

*atsiėmimo taške Ozo g. 20, Vilnius

**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo

Aprašymas
Atsiliepimai (0)

Aprašymas

Sonoff WS01STPF-E Traditional Wall Socket (Type F)

Choose a proven solution that ensures a stable and safe power supply every day. The Sonoff WS01STPF-E is a classic Type F (Schuko) wall socket, rated for a load of up to 4000 W and a maximum current of 16 A. Its robust construction, wear resistance, and compatibility with popular mounting standards make it ideal for any home electrical installation. The product is also compatible with Sonoff Fusion series devices.

A white traditional wall socket mounted above a wooden dresser in a bright room

Robust construction and durable materials

The outlet is made of high-quality PC plastic, which is distinguished by its resistance to high temperatures and harsh operating conditions. This solution effectively reduces the risk of overheating and increases installation safety. Additionally, the conductive components used ensure high conductivity and resistance to oxidation and wear, which translates to long and trouble-free operation.

Graphics illustrating the socket’s fire resistance and maximum current rating of 16A

Safety and reliability every day

The WS01STPF-E model was designed for safe use in every home. It supports a continuous load of 16 A, allowing you to safely connect demanding appliances such as kettles or other household appliances. The built-in child lock protects the youngest from accidental contact with the electrical system, and the relay’s durability (up to 20,000 cycles) and corrosion resistance, confirmed by salt spray chamber tests, ensure reliability over a long service life.

A child sitting on the floor next to a socket featuring a graphic of a shield, symbolizing child safety

Compatibility and Versatile Use

The outlet is compatible with popular F, C, and F & E (CEE 7/7) plugs, allowing you to easily connect most devices used in Europe. The product is designed for indoor use and fits standard 86-type mounting boxes as well as European 60 mm diameter boxes, making installation easy.

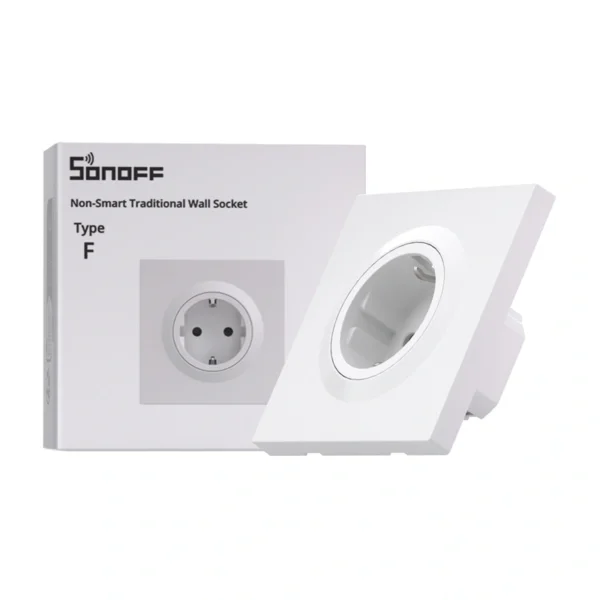

A traditional Sonoff Type F outlet next to the manufacturer’s white packaging

Well-thought-out design and easy installation

Its compact dimensions (86 × 86 mm) and depth of approximately 39.6 mm ensure that the outlet fits flush against the wall and does not take up much space. In addition, clear terminal markings (L, N, and ground) facilitate proper wire connection, which speeds up installation and minimizes the risk of installation errors.

A diagram of the outlet’s construction showing the internal copper contact elements and white housing

Manufacturer	Sonoff
Model	WS01STPF-E
Type	Type F (Schuko)
Rated voltage	100–250 V ~ 50/60 Hz
Maximum load	4000 W
Maximum current	16 A
Housing material	PC
Operating temperature	From -10°C to 40°C
Operating humidity	5–95% RH (non-condensing)
Application	For indoor use
Dimensions	86 × 86 × 39.6 mm
Compatible mounting boxes	Standard 86-type mounting boxes, European mounting boxes with a diameter of 60 mm
Compatible plugs	F, C, F & E (CEE 7/7)
