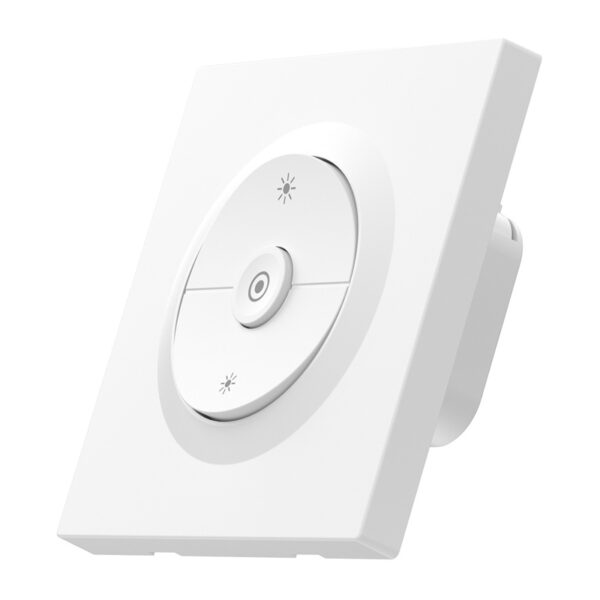

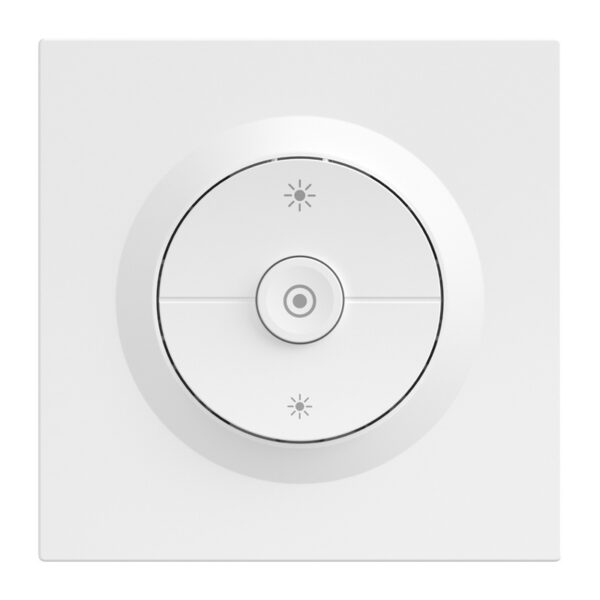

SONOFF MINI-ZBDIM-E ZigBee smart wall switch/dimmer

Aprašymas

SONOFF MINI-ZBDIM-E ZigBee smart wall switch/dimmer

SONOFF MINI-ZBDIM-E is a smart switch operating in the ZigBee 3.0 standard, designed for smooth lighting control in the range of 0–100%. It allows you to create scenes, schedules, and monitor energy consumption. Thanks to the ZigBee router function, it not only controls the light, but also amplifies the signal throughout the smart home network, improving its stability.

Stable ZigBee 3.0 communication and router role

The device operates in the IEEE 802.15.4 (ZigBee 3.0) standard and acts as a router in the network. This means that it transmits the signal further, increasing the range and reliability of communication between devices. This is especially important in larger apartments and houses, where the signal has to pass through several rooms. The switch works with eWeLink gateways such as ZBBridge-P, ZBBridge-U, NSPanel Pro, and iHost. It can also be integrated with Home Assistant via ZHA or Zigbee2MQTT using SONOFF series dongles.

Smooth dimming and comfort of use

MINI-ZBDIM-E allows you to adjust the brightness in the full range from 0 to 100%, allowing you to precisely adjust the light to the situation. In addition, the trailing-edge dimming increases compatibility with modern light sources and reduces flickering. The device also supports automatic calibration, making it easier to adjust to a specific load.

Wide lighting compatibility

The dimmer works with various types of light sources. It supports dimmable LEDs up to 200 VA, traditional and halogen bulbs up to 400 W, and dimmable electronic transformers up to 200 W. This makes it suitable for use in most home lighting installations. Note: the product is not intended for fluorescent lamps, LED strips, or inductive loads such as fans.

Energy consumption monitoring

The built-in power measurement function allows you to control the current energy consumption of the connected lighting. In the app, you can check the current operating parameters, which facilitates conscious energy management and adjustment of the brightness level to real needs.

Scenes, schedules, and voice control

The device allows you to create smart scenes and schedules that automatically adjust lighting to the time of day or other events in the system. You can set the lights to dim automatically in the evening or turn on at a specific time. Voice control is also possible using Amazon Alexa or Google Assistant, as well as remote management from the eWeLink app.

Safety and durability

The device is equipped with protection against overheating, overload, and overcurrent. The housing is made of flame-retardant PC material, and the entire device complies with CE and RoHS standards. The relay used is designed for long and stable operation, which translates into greater reliability in everyday use.

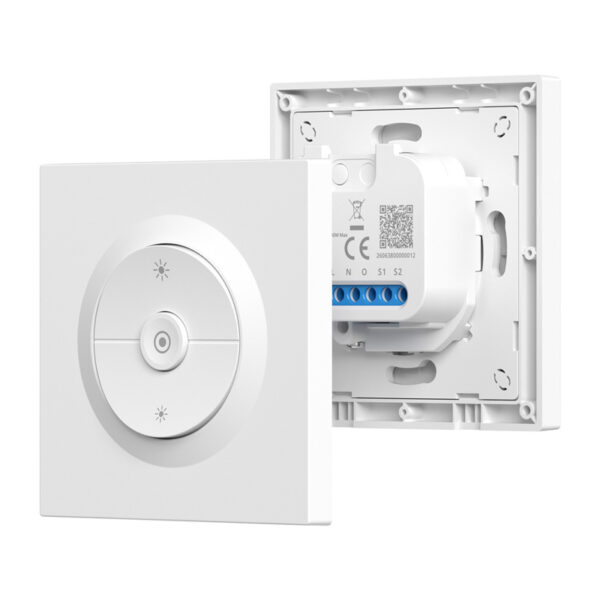

Standard installation and compact dimensions

The dimmer is designed for use in 220-240 V ~ 50 Hz installations and requires a neutral wire. It fits 86-type boxes and European round boxes with a diameter of 60 mm. The compact design facilitates installation in both new installations and when upgrading existing equipment.

Included in the set

• smart switch
• 4 screws
• user manual
