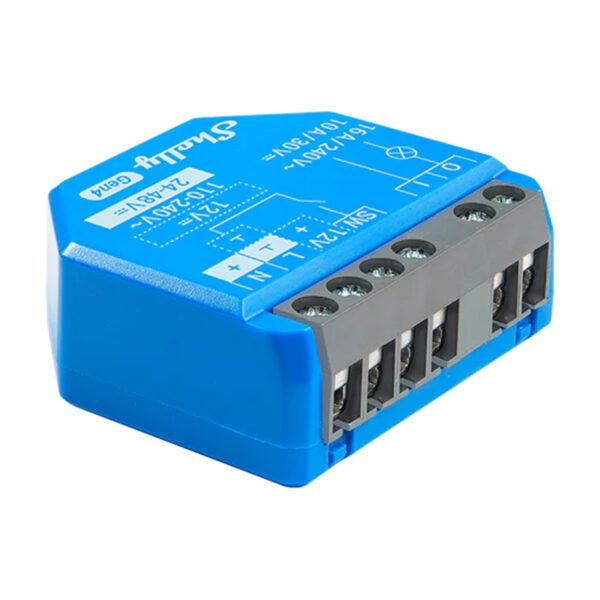

Shelly 1 Gen4 Controller Zigbee/Matter

The Shelly 1 Gen4 Zigbee/Matter controller is a compact, backplane controller with potential-free contacts that allows you to remotely control a variety of electrical devices – either via the local network or the Internet. The device supports multiple communication protocols (Wi-Fi, Bluetooth, Zigbee, Matter), so you can easily adapt it to your preferred home automation system. It can be integrated with popular platforms such as Google Home, Alexa and SmartThings. The controller will work well in residential, office, hotel and other installations.

Integration with any system

The Shelly 1 Gen4 controller supports four major wireless communication protocols: Zigbee (802.15.4), Wi-Fi (802.11 b/g/n), Bluetooth 4.2 and Matter. This allows you to choose for yourself which medium you want to use depending on your installation capabilities and smart home ecosystem. The product also acts as a Zigbee repeater, which extends the network’s range. In case of a weak Wi-Fi signal, it can act as its repeater, increasing the stability of the connection.

Remote access and schedules

The device can operate over both local Wi-Fi and the Internet, allowing remote access regardless of the user’s location. A built-in web interface allows configuration and control without installing additional applications. An advanced scheduling system provides the ability to define detailed scenarios taking into account the day of the week, the hour and even the second, which works well for automation of lighting, ventilation or garden watering, among others.

Cooperation with applications and systems

The Shelly 1 Gen4 model works with many home automation systems. It supports HTTP APIs, MQTT(S), WebHooks, UDP protocol and virtual components. In addition, it offers KNX net/IP compatibility. With ShellyScript scripting support, it is possible to create custom rules and operation logic.

General

Manufacturer	Shelly
Model	1Gen4

Physical parameters

Dimensions	37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
Weight	26 g / 0.92 ounces
Maximum tightening torque of screw terminals	0.4 Nm / 3.5 lbin
Cable cross section	0.2 to 2.5 mm² / 24 to 14 AWG (solid, multi-stranded and sleeved wires)
Length of stripped wire	6 to 7 mm / 0.24 to 0.28 in.
Mounting	Wall console
Housing material	Plastic
Housing color	Blue
Clamp color	Gray

Environmental conditions

Operating temperature	-20°C to 40°C / -5°F to 105°F
Operating humidity	30% to 70% RH
Maximum altitude.	2000 m / 6562 ft

Electrical parameters

Power supply	110-240 V~ ; 24-48 V= ; 12 V=
Power consumption	< 1 W
Neutral wire required	No
External protection	Overcurrent circuit breaker according to EN60898-1 (trip characteristic B or C, rated current max. 16 A, minimum breaking capacity 6 kA, energy limitation class 3)

Output circuit parameters

Maximum switching voltage	240 V~ ; 30 V=
Maximum switching current	16 A / 240 V~ ; 10 A / 30 V=

Sensors and measurements

Built-in temperature sensor	Yes

Wi-Fi

Protocol	802.11 b/g/n
RF bandwidth	2412 – 2472 MHz
Maximum RF transmit power	< 20 dBm
Range	Up to 30 m indoors / 100 feet and up to 50 m outdoors / 160 feet (depending on local conditions)

Bluetooth

Protocol	4.2
RF band	2402 – 2480 MHz
Maximum RF transmit power	< 4 dBm
Range	Up to 10 m indoors / 33 feet and up to 30 m outdoors / 100 feet (depending on local conditions)

Zigbee

Protocol	802.15.4
Zigbee repeater function	Yes
RF band	2400 – 2483.5 MHz
Maximum RF transmit power	< 20 dBm
Range	Up to 100 m indoors / 328 feet and up to 300 m outdoors / 984 feet (depending on local conditions)
