Name: Set of 4 Shelly 1 PM Gen4 Zigbee/Matter Controllers
Brand: Shelly
SKU: 3800238070731
Availability: OutOfStock

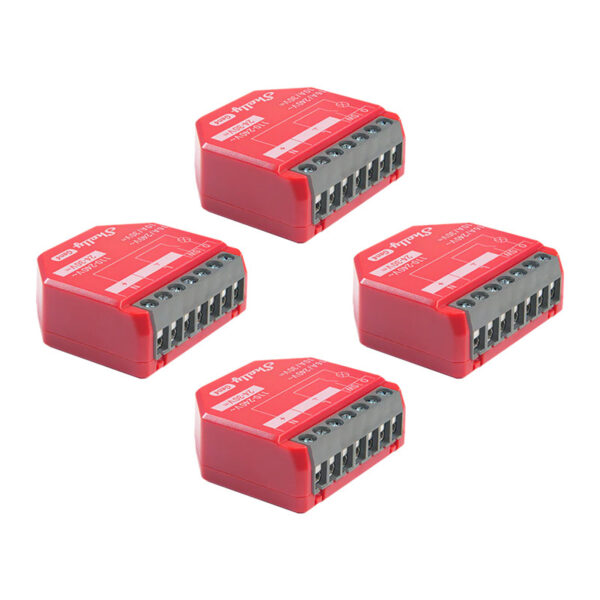

Set of 4 Shelly 1 PM Gen4 Zigbee/Matter Controllers

Prekės kodas: @1286178

0 out of 5

( Atsiliepimų dar nėra. )

78,25 €

Užsakomoji prekė.

Numatoma atsiėmimo*/išsiuntimo** data:

*atsiėmimo taške Ozo g. 20, Vilnius

**kurjeris įprastai pristato per 1-2 darbo dienas

Aprašymas
Atsiliepimai (0)

Aprašymas

Shelly 1 PM Gen4 Zigbee/Matter set of 4 controllers

Shelly 1PM Gen4 is a compact built-in switch with power metering that combines several wireless communication standards – Zigbee, Wi-Fi, Bluetooth and Matter. The device allows you to remotely control connected power consumers, and with accurate power measurement it allows you to analyze energy consumption in real time. Thanks to its small size, it can be successfully installed in flush-mounted boxes, behind sockets or light switches. In the set you will find four pieces of the product.

A hand holds a small red Shelly Gen4 controller module with visible connector and technical parameter markings

Full control in your hands

The controller can be operated locally via Wi-Fi or remotely via the Shelly app, a web browser or integration with home automation systems. The built-in web interface allows you not only to remotely turn appliances on and off, but also to configure settings and read power consumption data. Remote access works anywhere the device has an Internet connection – no central hub is required. Shelly 1PM Gen4 offers extensive integration with external systems – it supports MQTT, HTTPS, Web Hooks, KNXnet/IP and scripts written in ShellyScript, among others. You can create schedules (up to 20 tasks) and scenes to automate devices based on time, days of the week or weather conditions.

The hand holds a smartphone with the Shelly 1PM Gen4 app showing energy consumption data, with the module mounted in the wall box in the background

Multi-standard communication

The Shelly 1PM Gen4 supports 4 major communication standards – Wi-Fi (802.11 b/g/n), Bluetooth 5.0, Zigbee (802.15.4) and Matter. This makes it seamlessly integrate with popular platforms such as Alexa, Google Assistant, Samsung SmartThings and Home Assistant. The controller can also act as a Zigbee and Wi-Fi signal repeater, strengthening the coverage of these networks in IoT installations.

Red Shelly Gen4 module mounted in a flush-mounted box behind a partially offset electrical outlet

Measuring energy consumption and protecting the installation

The device features a built-in wattmeter and ammeter, allowing real-time monitoring of power consumption by connected devices. In addition, the data record can be analyzed in the app. Measuring energy consumption makes it easier to optimize power consumption in the home or office. An integrated internal temperature sensor takes care of safety, protecting the device from overheating.

Shelly module mounted in open wall box with wiring visible and switch cover partially offset

Included:

Shelly 1 PM Gen4 Zigbee/Matter controller x4

General

Manufacturer	Shelly
Model	1PMGen4-4pack

Physical characteristicsDimensions	37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inches
Weight	27 g / 0.95 oz
Maximum terminal tightening torque	0.4 Nm / 3.5 lbin
Cable cross section	0.2 to 2.5 mm² / 24 to 14 AWG (wire, wire, sleeve)
Wire stripping length	6 to 7 mm / 0.24 to 0.28 in.
Mounting	Wall console
Housing material	Plastic
Housing color	Red
Clamp color	Gray

Environmental conditions

Operating temperature	-20 °C to 40 °C / -5 °F to 105 °F
Operating humidity	30% to 70% RH
Maximum altitude	2000 m / 6562 ft

Electrical parameters

Power supply	110-240 V~ ; 24-30 V⎓
Power consumption	< 1 W
Neutral wire required	Yes
External protection	Overcurrent circuit breaker according to EN60898-1 (characteristics B or C, rated current max. 16 A, breaking capacity min. 6 kA, energy limitation class 3)
