Server Memory Module|KINGSTON|DDR5| 64 GB|Registered (buffered)|CL 52|1.1 V|288-pin DIMM|KSM64R52BD4-64MD
Prekės kodas: @1965509
999,00 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

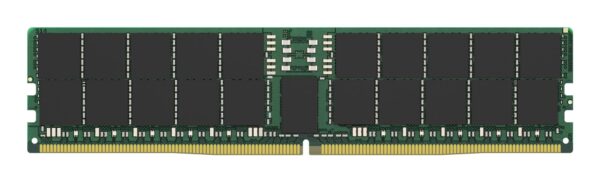

Kingston Technology KSM64R52BD4-64MD
Kingston’s KSM64R52BD4-64MD is a 8G x 80-bit (64GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 4G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
- On-Die ECC
- x80 ECC (x40, 2 independent I/O sub channels)
- 32 internal banks
- Hard/Soft Post Package Repair
- Sideband access with I3C/I2C
- RoHS Compliant and Halogen-Free
Specifikacija
| Summary | Kingston Technology KSM64R52BD4-64MD. Component for: PC/Server, Internal memory: 64 GB, Memory layout (modules x size): 1 x 64 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52 |
| Vendor Homepage | https://www.kingston.com/en/memory/search?partid=KSM64R52BD4-64MD |
| Category Code | MES |
| CnCode | 84733020 |
| Unit Box Height | 0.008 |
| Unit Box Length | 0.16 |
| Unit Box Width | 0.045 |
| Buffered memory type | Registered (buffered) |
| CAS latency | 52 |
| Component for | PC/Server |
| ECC | No |
| Internal memory | 64 |
| Internal memory type | DDR5 |
| JEDEC standard | Yes |
| Lead plating | Gold |
| Memory data transfer rate | 6400 |
| Memory form factor | 288-pin DIMM |
| Memory layout (modules x size) | 1 x 64 |
| Memory ranking | 2 |
| Memory voltage | 1.1 |
| Module configuration | 8192M x 80 |
| On-Die ECC | Yes |
| Programming power voltage (VPP) | 1.8 |
| Refresh row cycle time | 295 |
| Row active time | 32 |
| Row cycle time | 48 |
| SPD profile | Yes |
| Operating temperature (T-T) | 0 – 95 |
| Storage temperature (T-T) | -55 – 100 |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Height | 31.25 |
| Width | 133.35 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 5.76E-05 |
| Unit Calculated Weight | 0.033 |
