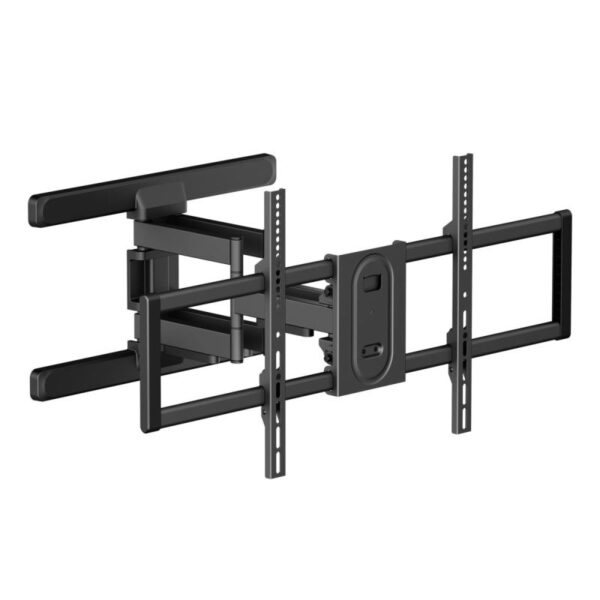

SBOX Wall Mount 43"-100", Tilting and Swivel, juodos spalvos (PLB-8148)

Aprašymas

The SBOX PLB-8148 wall mount is the ideal solution for large TVs that require a rigid and flexible mounting, with a load capacity of up to 60 kg.

Experience maximum flexibility and convenience with the SBOX PLB-8148 wall mount.
This robust mount is designed to handle a wide range of screen sizes from 43″ to 100″, offering unmatched versatility.
With the option of tilting the TV up to 5° up or 10° down and turning it a full 120°, you will always find the right viewing angle.

• Maximum load capacity: Up to 60 kg.
• Tilt range: 5° up, 10° down.
• Rotation: Up to 120°.
• Supported screen sizes: 43″ to 100″.

FLEXIBLE TILT AND SWIVEL ADJUSTMENTS
The PLB-8148 mount allows the screen to be tilted 5° upwards and 10° downwards. Thanks to the 120° swivel mechanism, you can adjust the TV to suit your space.

DURABLE CONSTRUCTION AND EASY INSTALLATION
Made of quality steel with a powder coating finish, the SBOX PLB-8148 is strong and reliable. Easy installation allows fast and secure mounting of the TV to the wall.

EXCELLENT COMPATIBILITY
It supports VESA standards from 200×200 to 800×400, which ensures compatibility with a wide range of TVs from different manufacturers. The maximum load capacity of the bracket is 60 kg, which makes it ideal for large TVs up to 100″ (254 cm).

CABLE WITHOUT THE MESS
An integrated cable management system helps you stay organized and keeps cables out of the way.

TECHNICAL SPECIFICATION

Holder type: Tilt and turn
Minimum VESA: 200×200
Maximum VESA: 800×400
Maximum load: 60 kg
Minimum screen size: 43” (109 cm)
Maximum screen size: 100” (254 cm)
Minimum distance from the wall: 65 mm
Maximum distance from the wall: 480 mm
Vertical tilt: 5°/ -10°
Rotation: +60°/ -60°
Level: No
For curved screens: No
Cable Management: Yes
Removable VESA plate: No
Installation: On the wall
Color: Black
Material: Steel
Surface treatment: Powder coating

DIMENSIONS AND WEIGHT

Dimensions: 480 x 906 x 430 mm
Weight: 9000 g

PACKAGE CONTENTS

• SBOX wall bracket 43″-100″, tilting and rotating, load capacity up to 60kg, black (PLB-8148)
• Mounting material
• User manual

Note: When mounting, pay attention to VESA standards and the type of screws used by TV manufacturers.
