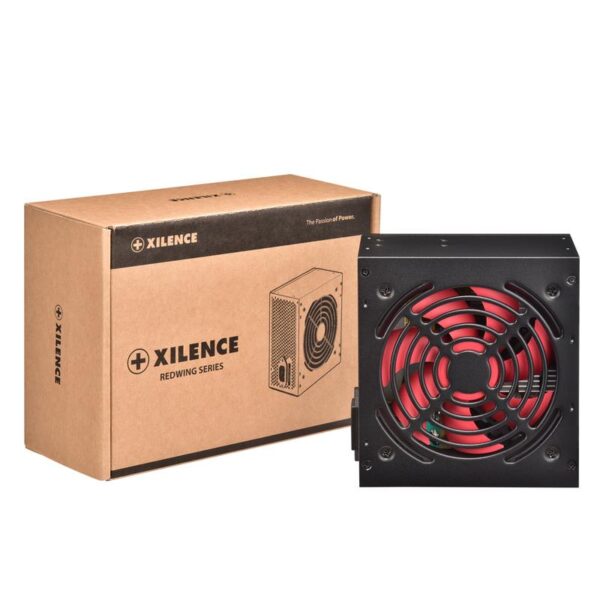

Power Supply|XILENCE|700 Watts|PFC Active|XN054
Prekės kodas: @1960312
38,67 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today’s computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation.
Specifikacija
| Summary | Xilence Performance A+ XN054. Total power: 700 W, AC input voltage: 200 – 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Bearing technology: FDB. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE |
| Vendor Homepage | https://www.xilence.net/en/power-supplies/25 |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.165 |
| AC input frequency | 50 |
| AC input voltage | 200 – 240 |
| Combined power (+12V) | 648 |
| Combined power (+3.3V) | 120 |
| Combined power (+5V) | 120 |
| Input current | 8 |
| Max output current (+12V) | 54 |
| Max output current (+3.3V) | 24 |
| Max output current (+5V) | 18 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.5 |
| Power Factor Correction (PFC) type | Passive |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 700 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 550 |
| Motherboard power cable length | 450 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power cable length | 500 |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power connectors (6-pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX version | 2.31 |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Black |
| Compliance certificates | RoHS/WEEE |
| Package depth | 165 |
| Package height | 100 |
| Package type | Box |
| Package weight | 1840 |
| Package width | 225 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003795 |
| Unit Calculated Weight | 1.51 |
