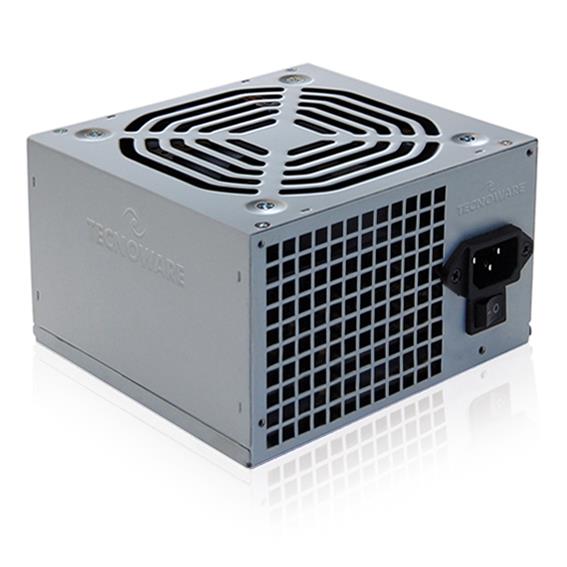

Power Supply|TECNOWARE|FREE SILENT 500W|ATX|PC|180 – 264 V|500 W|FAL506FS12B
Prekės kodas: @1959063
20,27 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
- Inner power supply for Computer
- Input voltage 230 Vac 50Hz
- 12 cm silent cooling fan
- Fan speed temperature control
- Overvoltage protection
- Overload protection
- Short-circuit protection
- High MTBF ( >100.000 hours)
- High reliability
- High efficiency
Specifikacija
| Summary | Tecnoware Free Silent. Total power: 500 W, AC input voltage: 180 – 264 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Grey, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE (2014/35/UE; EMC 2014/30/UE) |
| Vendor Homepage | https://www.tecnoware.com/Prodotti/FAL506FS12B/free-silent-500w-12-cm-psu-bulk.aspx |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.098 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.155 |
| AC input frequency | 47 – 63 |
| AC input voltage | 180 – 264 |
| Efficiency | 86 |
| Input current | 5 |
| Max output current (+12V) | 28 |
| Max output current (+3.3V) | 22 |
| Max output current (+5V) | 22 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.8 |
| Power protection features | Over voltage/Overload/Short circuit |
| Total power | 500 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX version | 2.01 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Grey |
| Operating relative humidity (H-H) | 0 – 95 |
| Operating temperature (T-T) | 0 – 40 |
| Storage temperature (T-T) | -15 – 40 |
| Certification | CE (2014/35/UE; EMC 2014/30/UE) |
| Compliance certificates | RoHS |
| Depth | 140 |
| Height | 85 |
| Weight | 1000 |
| Width | 150 |
| Operating altitude | 0 – 3000 |
| Model name | FREE SILENT 500W |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003038 |
| Unit Calculated Weight | 0.9 |
