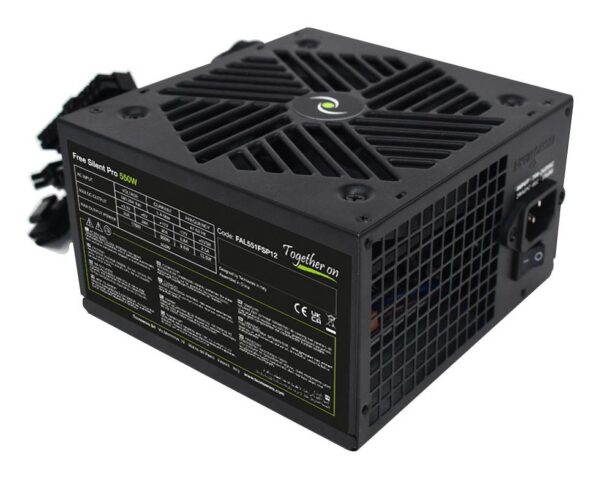

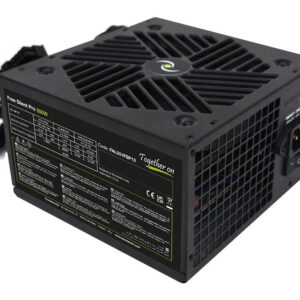

Power Supply|TECNOWARE|FAL551FSP12|ATX|550 W|FAL551FSP12
24,84 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
Internal power supply for personal computer, 550W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 1 x 6+2 PCI-E connector, 2 x Molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, RoHS.
- Internal Power Supply for Computers
- High Efficiency (>85%) and High Operation Noise
- Active PFC >0.9
- Dimensions: 140x86x150 mm (WxHxD)
- Input voltage 230 Vac 50Hz
- Temperature control of the fan speed
- Flat connection cables from 500mm to 800mm
- Surge protection
- Overload protection
- Short circuit protection
Specifikacija
| Summary | Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 – 264 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CE, RoHS |
| Vendor Homepage | https://www.tecnoware.com/en-US/Dettaglio/Articolo/883 |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.16 |
| AC input frequency | 47 – 63 |
| AC input voltage | 180 – 264 |
| Combined power (+12V) | 360 |
| Combined power (+3.3V) | 170 |
| Combined power (+5V) | 170 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 9.6 |
| Efficiency | 85 |
| Input current | 5 |
| Max output current (+12V) | 30 |
| Max output current (+3.3V) | 23 |
| Max output current (+5V) | 24 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.8 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Overload/Short circuit/Surge protection |
| Total power | 550 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power cable length | 550 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 500 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power cable length | 500 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| 80 PLUS certification | No |
| ATX version | 2.31 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Fan diameter | 120 |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 |
| Storage temperature (T-T) | -15 – 40 |
| Compliance certificates | CE/RoHS |
| Depth | 150 |
| Height | 86 |
| Weight | 1000 |
| Width | 140 |
| Package type | Box |
| Model name | FAL551FSP12 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0032 |
| Unit Calculated Weight | 1 |
