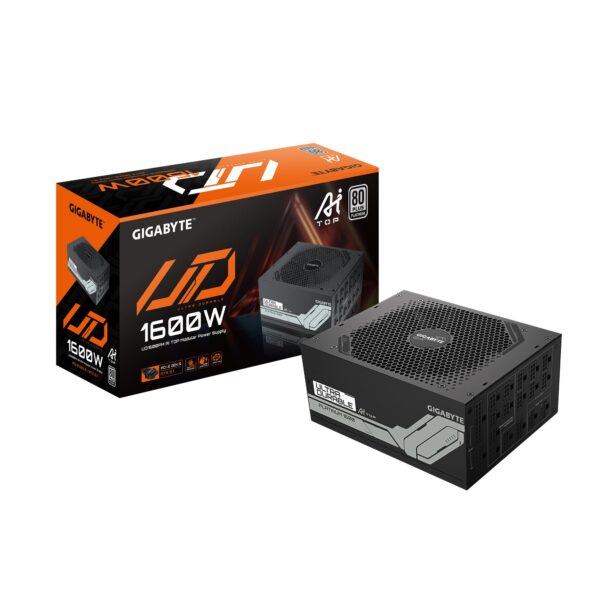

Power Supply|GIGABYTE|GP-UD1600PM PG5|1600 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|GP-UD1600PMPG5
Prekės kodas: @1964112
328,50 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- 16-pin PCIe cable * 4 support PCIe Gen 5.0 graphic cards
- ATX 3.1 and PCIe Gen 5.0 ready
- Server-grade Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 140mm smart double ball bearing fan, OVP/OPP/SCP/UVP/OCP/OTP protection
- 80 PLUS Platinum certified
- Fully modular design
- Powerful single +12V rail
Specifikacija
| Summary | GIGABYTE UD1600PM PG5 AI TOP Power Supply – PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm |
| Vendor Homepage | https://www.gigabyte.com/ |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.6 |
| Unit Box Width | 0.11 |
| AC input frequency | 50/60 |
| AC input voltage | 100 – 240 |
| Combined power (+12V) | 1600 |
| Combined power (+3.3V) | 150 |
| Combined power (+5V) | 150 |
| Combined power (+5Vsb) | 17.5 |
| Combined power (-12V) | 9.6 |
| Efficiency | 92 |
| Hold time | 16 |
| Input current | 15 – 7.5 |
| Max output current (+12V) | 133.3 |
| Max output current (+3.3V) | 30 |
| Max output current (+5V) | 30 |
| Max output current (+5Vsb) | 3.5 |
| Max output current (-12V) | 0.8 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 – 150 |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 1600 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power cable length | 610 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 16 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| SATA power cable length | 150/650 |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 100000 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Black |
| Depth | 190 |
| Height | 86 |
| Weight | 5300 |
| Width | 150 |
| Package depth | 219 |
| Package height | 145 |
| Package type | Box |
| Package weight | 5575 |
| Package width | 410 |
| Warranty period | 10 |
| Model name | GP-UD1600PM PG5 |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.0165 |
| Unit Calculated Weight | 5.99 |
