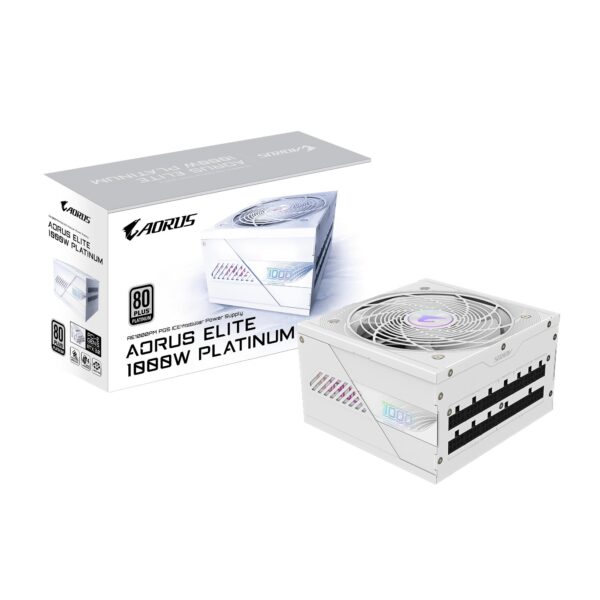

Power Supply|GIGABYTE|GP-AE1000PM PG5 ICE|1000 Watts|Efficiency 80 PLUS PLATINIUM|PFC Active|MTBF 100000 hours|GP-AE1000PMPG5ICE
Prekės kodas: @1963029
168,76 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- 10 years warranty
Specifikacija
| Summary | GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit – PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, EU Plug. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| Vendor Homepage | https://www.gigabyte.com/uk/Power-Supply/GP-AE1000PM-PG5-ICE-rev-10#kf |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.205 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.12 |
| AC input frequency | 50/60 |
| AC input voltage | 100 – 240 |
| Combined power (+12V) | 999.6 |
| Combined power (+3.3V) | 125 |
| Combined power (+5V) | 125 |
| Combined power (+5Vsb) | 15 |
| Combined power (-12V) | 3.6 |
| Efficiency | 92 |
| Hold time | 16 |
| Input current | 15 – 6.5 |
| Max output current (+12V) | 83.3 |
| Max output current (+3.3V) | 25 |
| Max output current (+5V) | 25 |
| Max output current (+5Vsb) | 3 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 – 150 |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 1000 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| Motherboard power cable length | 650 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 100000 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Fan location | Top |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | White |
| Depth | 140 |
| Height | 86 |
| Weight | 3102 |
| Width | 150 |
| Package depth | 206 |
| Package height | 120 |
| Package type | Box |
| Package weight | 3732 |
| Package width | 340 |
| Warranty period | 10 |
| Model name | GP-AE1000PM PG5 ICE |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.01086 |
| Unit Calculated Weight | 3.73 |
