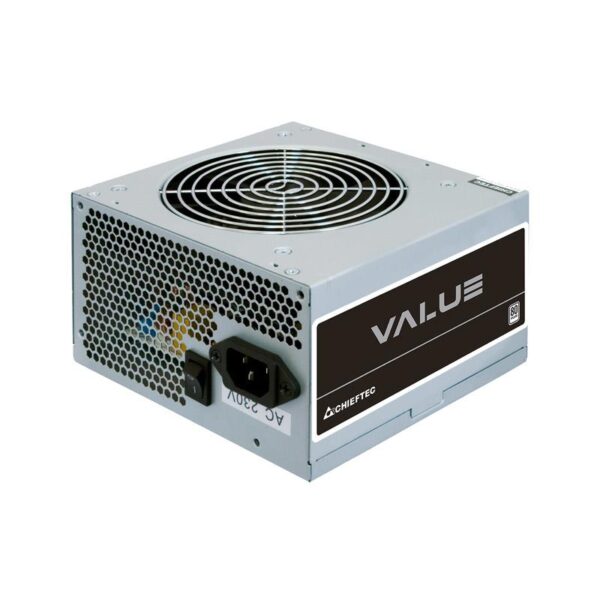

Power Supply|CHIEFTEC|500 Watts|PFC Active|APB-500B8
Prekės kodas: @2399867
30,90 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-05*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
The APB-500B8 of the new VALUE SERIES offers both quality and efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with
installed thermal board, the PSU runs quietly on full load and provides REAL power, thereby providing all security features. Certified by CE, CB TÜV, EAC amongst many others, it’s the VALUE choice!
Specifikacija
| Summary | Chieftec Value APB-500B8. Total power: 500 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE, CB, TÜV, EAC |
| Vendor Homepage | https://www.chieftec.eu/products-detail/181/VALUE_SERIES/250/APB-500B8 |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.09 |
| AC input frequency | 50 |
| AC input voltage | 230 |
| Combined power (+3.3V) | 130 |
| Combined power (+5V) | 130 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Efficiency | 80 |
| Input current | 4 |
| Max output current (+12V1) | 24 |
| Max output current (+12V2) | 21 |
| Max output current (+3.3V) | 22 |
| Max output current (+5V) | 19 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 500 |
| Cabling type | Non-Modular |
| EPS power connector (8-pin) | No |
| Floppy disk drive connector | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Silver |
| Certification | CE, CB, TÜV, EAC |
| Compliance certificates | RoHS |
| Depth | 140 |
| Height | 87 |
| Width | 150 |
| Harmonized System (HS) code | 84733020 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004455 |
| Unit Calculated Weight | 1.35 |
