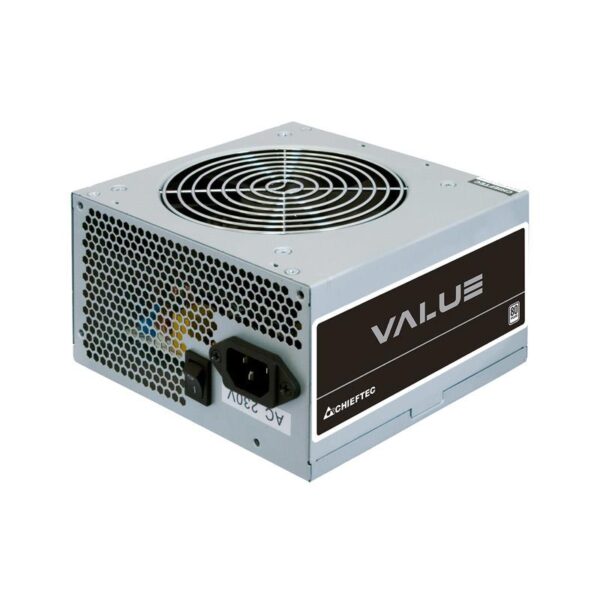

Power Supply|CHIEFTEC|400 Watts|PFC Active|APB-400B8
Prekės kodas: @2399853
29,27 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-05-04*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!
- 80PLUS 230V EU
Specifikacija
| Summary | Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 – 240 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: 80PLUS 230V EU |
| Vendor Homepage | https://www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8 |
| Category Code | PSU |
| CnCode | 85044095 |
| Unit Box Height | 0.16 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.09 |
| AC input frequency | 47 – 63 |
| AC input voltage | 200 – 240 |
| Combined power (+12V) | 360 |
| Combined power (+3.3V) | 100 |
| Combined power (+5V) | 100 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Input current | 3 |
| Max output current (+12V) | 30 |
| Max output current (+3.3V) | 17 |
| Max output current (+5V) | 16 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.3 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 400 |
| Cabling type | Non-Modular |
| CPU power cable length | 350 |
| CPU power connector (4+4 pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Motherboard power cable length | 350 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power cable length | 350 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 150/350 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| SATA power cable length | 150/350 |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | PS/2 |
| Purpose | PC/Server |
| Fan diameter | 120 |
| Number of fans | 1 |
| Product colour | Silver |
| Certification | 80PLUS 230V EU |
| Depth | 150 |
| Height | 87 |
| Width | 140 |
| Harmonized System (HS) code | 84733020 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004825 |
| Unit Calculated Weight | 1.28 |
