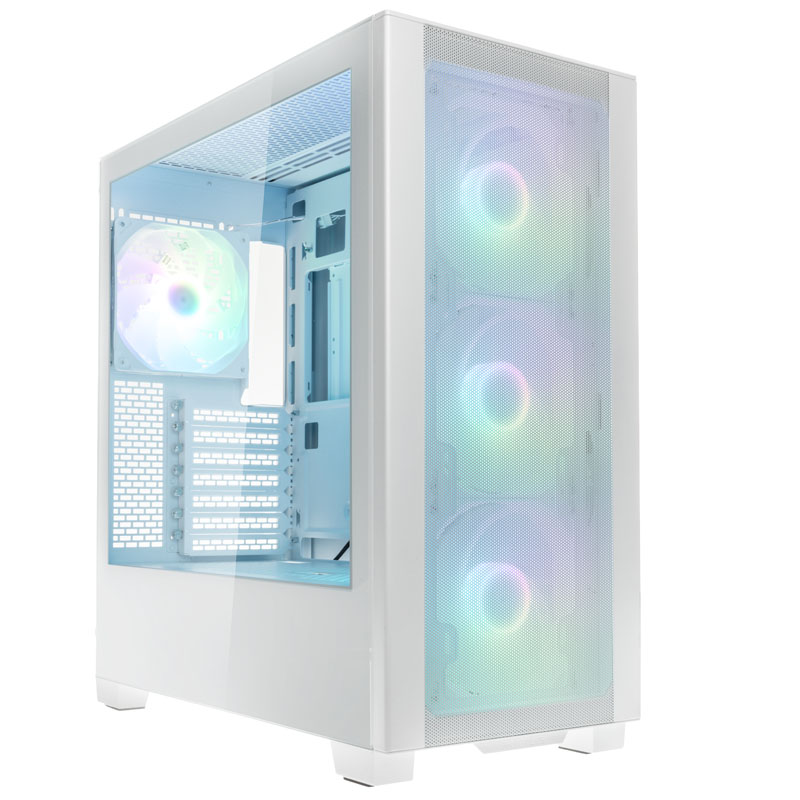

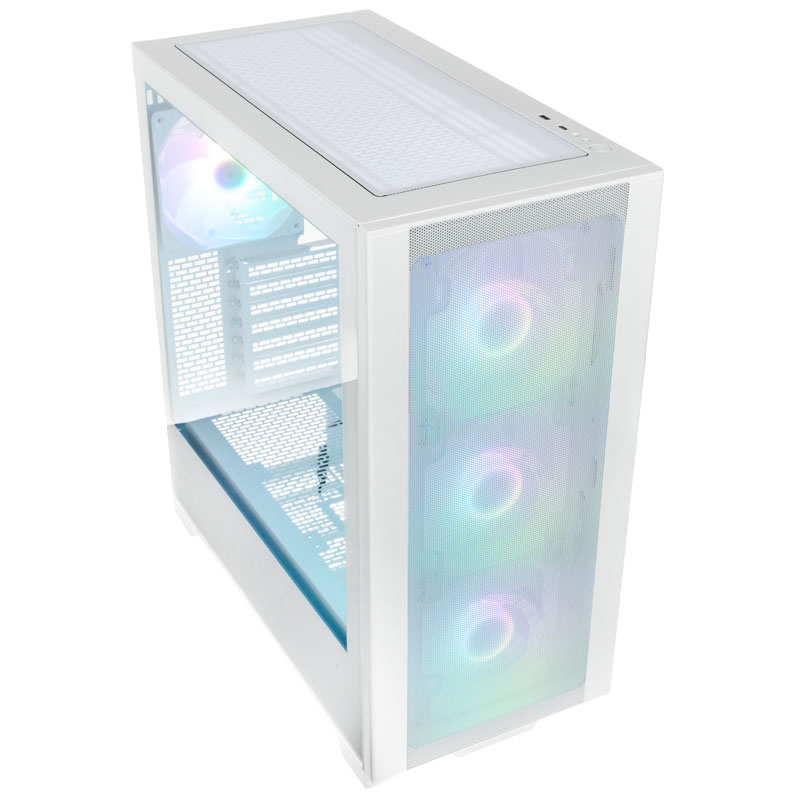

PHANTEKS XT Pro Ultra Tempered Glass Windows, D-RGB – baltos spalvos
Prekės kodas: 1241434
PH-XT523P1_DWT01
88,35 €
- Aprašymas
- Atsiliepimai (0)
Aprašymas
- Classic midi tower with many cooling options
- Four D-RGB fans pre-installed
- Supports „MSI Project Zero” and „ASUS BTF” motherboards
- Tempered glass side panel for an impressive view of your hardware
- Optimal cooling thanks to space for up to ten fans
- 360 mm radiators possible on the top
- Graphics cards up to a length of 415 mm possible
- Maximum CPU cooler height of 184 mm
PHANTEKS XT Pro Ultra: Top airflow with four fans pre-installed
The XT series from PHANTEKS is designed for optimal airflow and offers you various options to cool your hardware. The Phanteks XT Pro Ultra is a classic midi tower with plenty of space for fans, radiators, and full-sized gaming graphics cards. The case comes with four pre-installed 140 mm D-RGB fans and features a tempered glass side panel that provides a view of your installed hardware. The mesh front panel protects your valuable hardware from dust and dirt while allowing good airflow. Additionally, the XT series supports modern motherboards with rear connections such as Project Zero from MSI or ASUS BTF.
Diverse cooling options and space for large graphics cards
In designing the PHANTEKS XT Pro Ultra, great emphasis was placed on diverse cooling options. In the XT Pro Ultra, you can install up to 10 fans. Four D-RGB fans are already installed by default (front and rear). You can optionally install three 120 mm fans/two 140 mm fans or a radiator up to 360 mm in size on the top. The front also has space for three 140 mm fans or a 240 mm radiator. If you use a small 120 mm radiator, it can also replace the rear fan. The midplate mounting also provides space for three additional 120 mm fans, which can directly cool your graphics card.
If you use an air cooler for your CPU, your CPU cooler should not exceed a height of 184 mm. Your graphics card of choice can be a proud 415 mm long and 184 mm high – generous space for powerful gaming graphics cards. With a separately available GPU bracket, you can even install your graphics card vertically.
Space for drives and modern I/O panel
There is also plenty of storage space available. In the PHANTEKS XT Pro Ultra, you can accommodate up to two 3.5-inch and five 2.5-inch drives. With the included triple SSD bracket, you can further customise your storage space to suit your needs. For power-hungry hardware, ATX power supplies up to a size of 270 mm can be placed under the cover. Additionally, the case offers seven PCI slots for additional drives or other expansions.
In the XT Pro Ultra, you can use motherboards up to the ATX form factor. Under certain conditions, E-ATX boards can even fit in the case. The widely used ATX standard gives you enough freedom to realise your dream system. The sturdy case frame is made of steel. The modern I/O panel features power and reset buttons, as well as LED lights for power and HDD, and a combined audio jack, along with one USB 3.0 Type A port and one USB 3.1 Type C port.
Technical details:
- Dimensions: 230 x 500 x 450 mm (W x H x D)
- Weight: approx. 8.17 kg
- Colour: White
- Material: Steel, Tempered Glass
- Form factor: Micro-ATX, Mini-ITX, ATX, E-ATX (280 mm without GPU support bracket)
- Total fans possible:
3x 120 mm / 3x 140 mm (front)
3x 120 mm / 2x 140 mm (top)
1x 120 mm / 1x 140 mm (rear)
3x 120 mm (midplate) - Pre-installed:
1x 140 mm (rear)
3x 140 mm (front) - Radiator mountings:
1x max. 240 mm (front)
1x max. 360 mm (top)
1x max. 120 mm (rear) - Drive bays:
2x 3.5 inch and 5x 2.5 inch (rear motherboard tray) - Power supply: 1x standard ATX up to 270 mm length
- Expansion slots: 7
- I/O panel:
1x power button
1x reset button
1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
1x 3.5 mm combo jack
1x power LED
1x HDD LED - Maximum graphics card length: 415 mm
- Maximum CPU cooler height: 184 mm
- Delivery contents:
1x Phanteks XT PRO ULTRA Midi Tower, Tempered Glass – black
4x M25-140 fans
1x DRGB motherboard adapter
1x triple SSD bracket
Storage bracket: 2x HDD / 1x HDD + 2x SSD
1x accessory box including screws
Colour | |
Primary Colour | White |
Dimensions | |
Length / Depth | 450 mm |
Width | 230 mm |
Height | 500 mm |
Weight | 8.17 kg |
Case | |
Case Type | Mid Tower |
Motherboard Support | |
Compatible Motherboard Formats | ATX, E-ATX, Micro-ATX, Mini-ITX |
Max. Motherboard Format | E-ATX |
Internal Dimensions | |
Max. CPU Cooler Height | 184 mm |
Max. GPU Length | 415 mm |
Max. GPU Width | 184 mm |
Max. PSU Length / Depth | 270 mm |
Display | |
Display Included | No |
Power Supply | |
PSU included | No |
PSU Format | ATX |
Power Supply Position | rear bottom |
Fan Support | |
120 mm fans | 10 |
140 mm fans | 6 |
Radiator Support | |
Max. Radiator Compatibility | 1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm) |
Drive Bays | |
2.5 inch internal drive bay | 5 |
3.5 inch internal drive bay | 2 |
External Ports | |
USB 3.1 (external) Type C | 1 |
USB 3.0 (external) Type A | 1 |
Audio outputs & inputs | 1x output / input comb. (3.5 mm jack, 4-pin, TRRS) |
Case Features | |
I/O position | Top |
Side panel | with window |
Filters Included | Yes |
Back Connect | |
Back Connect | Yes |
Back-Connect Compatibility | ASUS BTF, MSI Project Zero |
Expansion Slots | |
Expansion slots / PCI slots | 7 |
Materials | |
Materials | Steel, Tempered Glass |
Lighting | |
Lighting / RGB | Yes |
RGB Type | ARGB / DRGB |
Lighting Colour | RGB |
Product Series | |
Product Series/Family | XT Pro Ultra |
Additional Contents | |
Included fans | 4x 140 mm |
