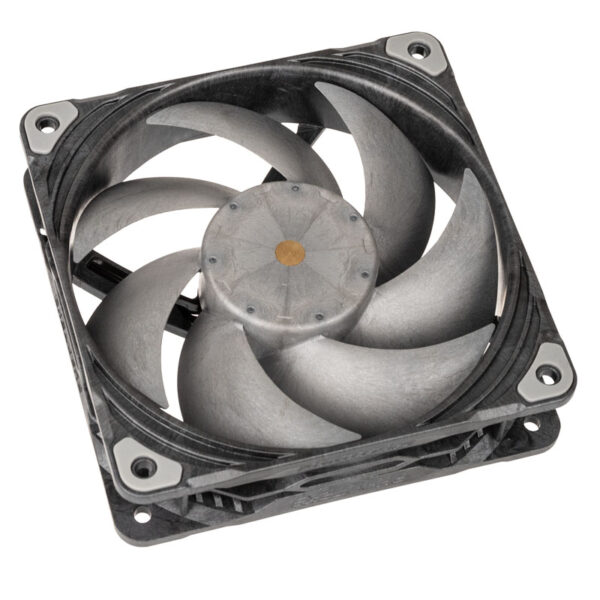

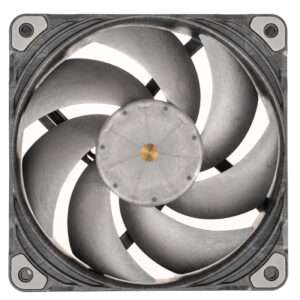

PHANTEKS T30 PWM 120mm Fan – black

The T30-120 is a 120 mm, high-end fan in an all-black design. With its three operating modes, the fan can be adapted to a wide range of systems and scenarios. The optimised frame and rotor design, the sophisticated motor, the Dual Vapo bearing, and the material and build quality result in a unique overall package of high-performance and quiet operation.

The Features of the PHANTEKS T30-120 Fan at a Glance:

• Versatile high-end fan in black
• 120 model with 30 mm depth, only 0.5 mm impeller gap
• Three fan profiles: Advanced, Performance and Hybrid
• 25% higher fan blades for increased performance
• Three-phase Sunon motor and Dual Vapo bearing
• Frame and rotor made of glass fibre reinforced LCP material
• 4-pin PWM connector with daisy-chain support
• Rubber anti-vibration pads
• Six-year manufacturer’s warranty

The Features of the PHANTEKS T30-120 Fan in Detail

In close cooperation with Sunon, one of the leading fan manufacturers, PHANTEKS has developed the T30-120. Both companies incorporated their many years of experience in the air and water cooling sector. The result is a high-end fan with aerodynamic optimisations and clever features.

Thanks to its high airflow and static pressure, the T30-120 is suitable for the use on radiators and air coolers, but can also makes for a excellent case fan due to its low noise emissions.

T30-120: Optimised frame design and unique LCP material

Due to its bigger frame design with a thickness of 30 mm, the T30-120 has 25 % higher fan blades. This increase in surface area results in significantly better airflow, as well as an optimised airflow-to-noise ratio. In addition, the small impeller gap of only 0.5 mm reduces air turbulence and therefore noise emissions.

Both the frame and the rotor with its fan blades are made of glass fibre reinforced LCP material (Liquid Crystal Polymer). Liquid crystal polymer has a significantly higher mechanical strength and temperature resistance than normal plastics. These qualities ensure high stability, durability, and a reduction of vibrations.

Three Fan Profiles: Prepared for any Scenario

With three different fan profiles, the T30-120 can be used in different scenarios or systems. The modes differ in their maximum speed and make the fan suitable for performance-oriented system builders and overclockers, as well as gaming or silence enthusiasts.

The high-quality three-phase motor from Sunon and the magnetic Dual Vapo bearing ensure smooth and quiet operation at all times. The anti-vibration pads on the frame additionally reduce vibrations and oscillations.

The T30-120 uses a 4-pin PWM connection with a cable length of 130 mm. The cable also features a 4-pin PWM socket, which enables daisy chain operation. For the connection of multiple T30-120 fans only one cable needs to be connected to the motherboard. A 50 cm extension cable is included for neat cable management and increased flexibility during installation.
