PHANTEKS PH-F120XP, PWM – 120mm, juodos spalvos/baltos spalvos

With the fans from the MP-, SP- and XP-series, PHANTEKS introduces powerful fans, where the SP and XP variants (with and without PWM connection) are designed for particularly high airflow, while the MP fans (with PWM connection) focus on achieving the highest possible static pressure.

The nine fan blades on the rotor of the PH-F120XP have been further optimised and designed at a perfect angle to create an ideal ratio between airflow and static pressure: this 120 mm model with a 4-pin PWM connection achieves a remarkable airflow of 104 m³/h and 1.72 mmH2O static pressure at a full 12 volts.

The fan operates at a maximum of only 27 dB(A), with this excellent result being partly due to the feature known as „Maelström Vortex Booster”, or MVB for short. The serrated elevations at the outer edges define the airflow more strongly, which reduces turbulence and thereby lowers noise emissions.

However, all the advantages of an innovative blade design are wasted if the drive and bearing fail, causing the fan to chirp, hum, and/or rattle. Fortunately, this is not the case with PHANTEKS; the fans come equipped with the proven UFB-Bearing („Updraft Floating Balance”), which ensures quiet operation and an extreme lifespan of 150,000 hours.

No wonder that PHANTEKS is once again not shy to offer a generous five-year manufacturer’s warranty on the PH-F120XP fans. Thanks to the integrated rubber cut-outs in the fan frame at the 120 mm mounting holes, vibration transmission to the case is mitigated when used as a case fan – even at full 1,500 RPM.

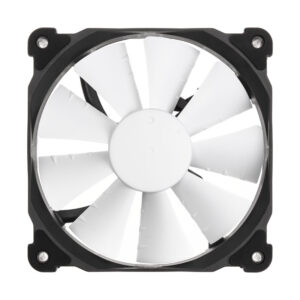

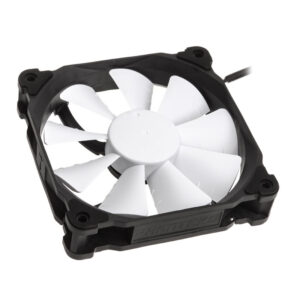

Visually, these quiet yet powerful fans are also an enhancement for any CPU cooler and case: in a black frame with extraordinary shaping and curved struts, the white rotor with its nine blades sits. The 4-pin connection cable is sleeved in black, which also applies to the 40 cm long additional cable. The package also includes four standard fan screws.
