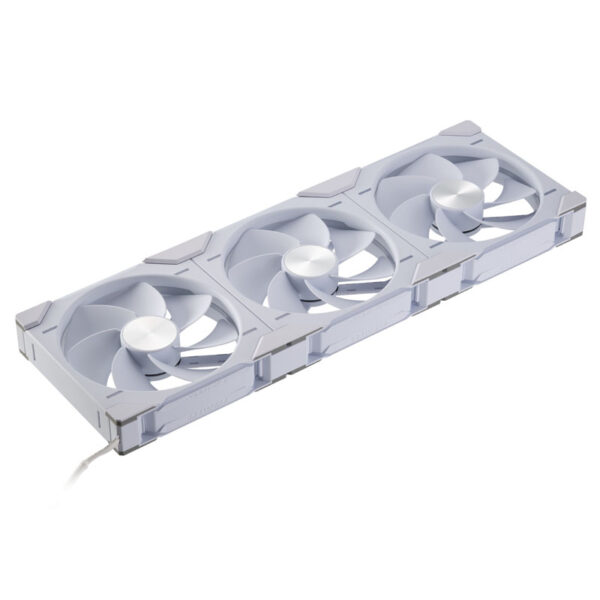

Phanteks D30 PWM Reverse Airflow, D-RGB Fan, 3-pack – 140mm, white
Prekės kodas: @1291710
PH-F140D30R_DRGB_PWM_WT01_3P
89,42 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-04*atsiėmimo taške Ozo g. 20, Vilnius
**kurjeris įprastai pristato per 1-2 darbo dienas
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Powerful PWM fan in white in a pack of 3, 30 mm depth with enhanced fan blades, optimized for cases and radiators, extensive D-RGB lighting, easy daisy-chaining via clips
- Versatile high-end fan in white with striking ARGB lighting
- Powerful PWM for use in cases or on radiators
- 30 mm depth and aerodynamic fan blades for additional cooling
- Connect up to four fans with clips for easy daisy-chaining
- Available in Regular or Reversed Mode to hide hubs and stickers
- Includes screw covers for clean builds
The Features of the Phanteks D30-140 Fan in Detail
The Phanteks D30-140 PWM D-RGB fans are designed to deliver high airflow and static pressure. With their 30 mm depth, powerful hydrodynamic PWM motor, and aerodynamic fan blades, they can be used for cooling your case with restrictive mesh and dust filters or on radiators. Furthermore, they offer extensive daisy-chaining capabilities without cable clutter. You can daisy-chain up to four of them together and connect them to your motherboard with just one cable for PWM and ARGB signals.
Available in Regular and Reversed Airflow variants, you can choose the model you need to hide unsightly hub stickers and spokes. This version supports reversed airflow and directs air from the back to the front and into the case.
The fans can be connected with two clips on the sides, with one of them passing the power from the first fan to a total of four. This reduces cable mess since only the first fan needs to be connected to your Phanteks controller with a 4-pin PWM and 3-pin D-RGB JST cable. A D-RGB to 3-pin ARGB adapter cable for direct connection to your motherboard is included.
Technical Details:
- Dimensions: 140 x 140 x 30 mm (L x W x D)
- Weight: 266 g
- Color: White (Frame), White (Fan Blades)
- Material: Plastic
- Bearing: Hydrodynamic
- Mode: Reversed (Airflow from back to front)
- Specifications:
Speed: max. 1,800 RPM
Airflow: max. 121.9 m³/h
Pressure: max. 3.08 mmH2O
Noise Level: max. 32.1 dB(A)
Current: max. 0.15 A
Voltage: 12 V - Connections:
4-pin PWM
3-pin JST D-RGB - Cable Length: 100 mm + 600 mm
- Package Contents:
3x D30-140 Fans
4-pin and 3-pin Extension Cables
2x Corner Connection Cables
2x Connection Bridges
6x Corner Clips
2x Connection Clips
4x Screw Covers for Connection Bridges
4x Screw Covers for Corners (Left)
4x Screw Covers for Corners (Right)
12x Fan Screws
12x Radiator Screws
D-RGB Mainboard Adapter
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Dimensions
|
|
|
Width
|
140 mm
|
|
Fan height
|
30 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Fan mounting size
|
140 mm
|
|
Min. Fan RPM
|
250 rpm
|
|
Max. Fan RPM
|
2000 rpm
|
|
Max. Single Fan Airflow
|
104.5 m³/h
|
|
Max. Static Pressure
|
3.08 mmH2O
|
|
Noise
|
|
|
Max. Single Fan Noise dB(A)
|
32.1 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
