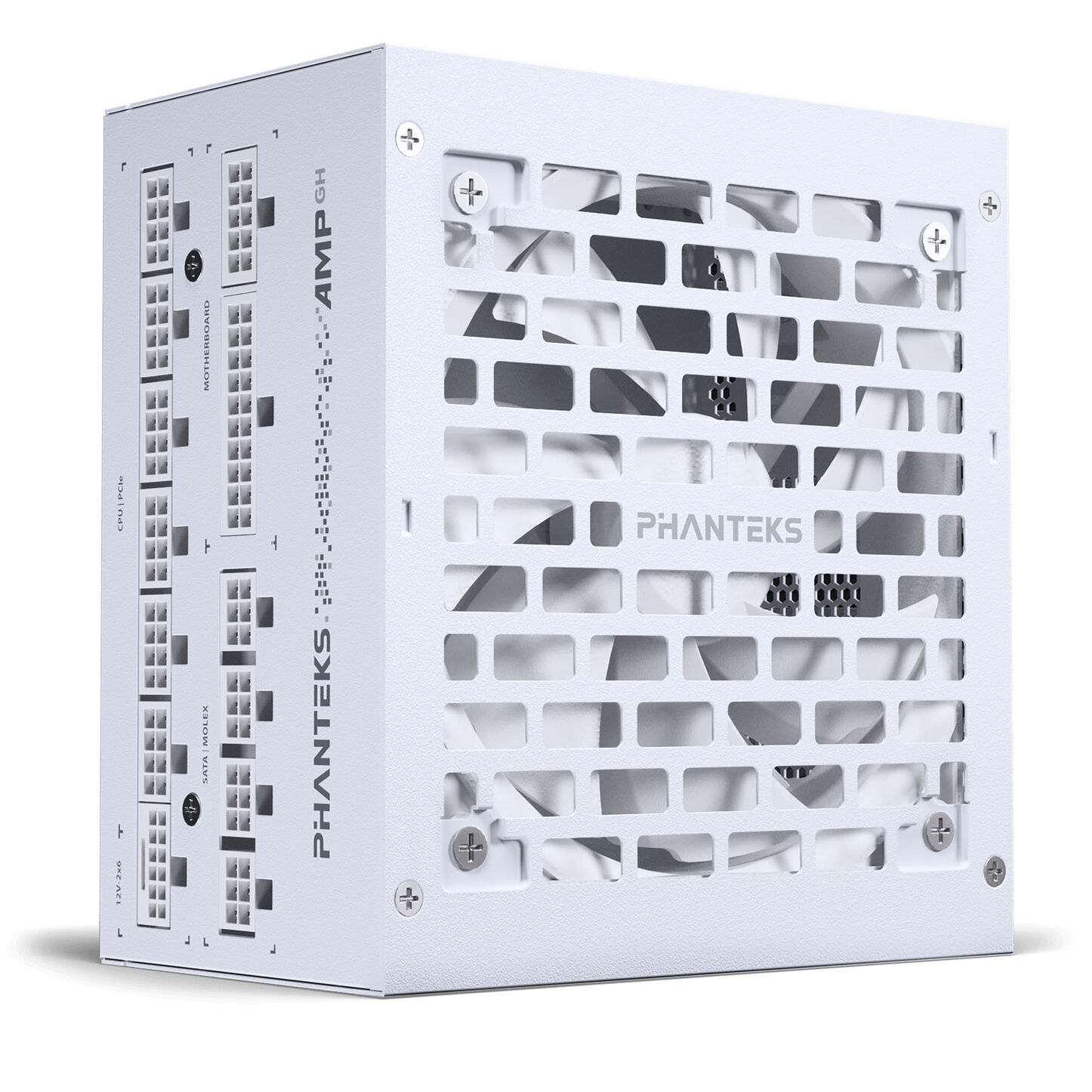

PHANTEKS AMP GH 1200W 80 PLUS Platinum PSU, PCIe 5.1, ATX 3.1 – 1.200 Watt, baltos spalvos

Prekės kodas: 1246552

PH-P1200GH_WT01_EU

198,27

LIKUTIS: Turime
2025-10-07
PASITEIRAUTI APIE PREKĘ

    PARAŠYKITE MUMS:

    Aprašymas

    • High-performance ATX-3.1 power supply with 1,200 watts for high-end PCs
    • 80 PLUS Platinum certification thanks to high efficiency of up to 94%
    • Quiet 120mm fan with hydrodynamic bearing for efficient cooling
    • Less cable clutter and better airflow thanks to modular cable management
    • Cables with individually textured cable strands for a tidy build
    • Silent operation at the push of a button thanks to semi-passive hybrid mode
    • Includes 12V-2×6 power cable for powerful graphics cards

    The Phanteks AMP GH 1200W: Powerful and Reliable

    The Phanteks AMP GH 1200W is a high-performance ATX-3.1 power supply that safely powers your gaming hardware. Phanteks has developed a compact power supply that, with a depth of only 140 mm, conforms to the standard ATX form factor and fits in most cases. By using high-quality electrical components, the 80 PLUS Platinum certified power supply operates extremely efficiently. Its fully modular design with individually shielded and specially textured cables makes installation easy and ensures a tidy appearance.

    ATX-3.1 PSU with PCIe-5.1 Connector for Graphics Cards

    The AMP-GH series fully complies with the ATX 3.0 and 3.1 standards and is therefore compatible with the latest components. Phanteks has also equipped this power supply with a 12V-2×6 connector based on the PCIe-5.1 standard: thus, you are well-prepared for current and upcoming high-end GPUs.

    Maximum Flexibility: Various Connection Options and Modular Design

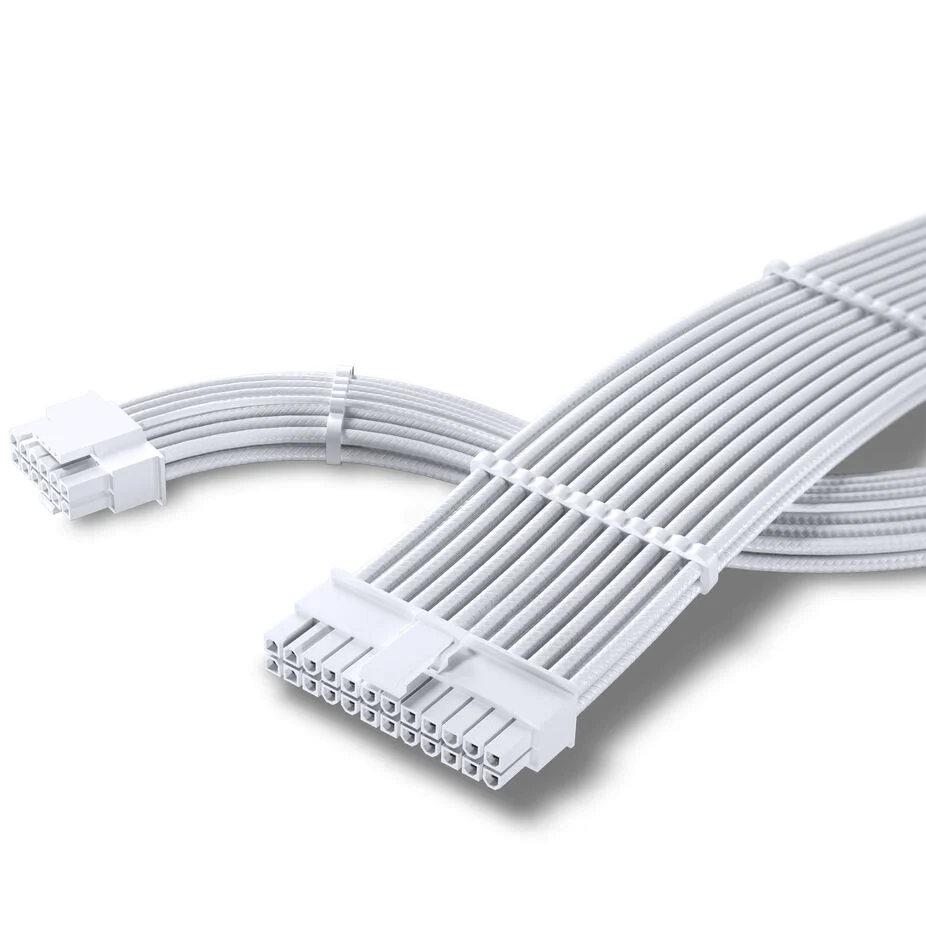

    The gold-plated connectors reduce electrical resistance and increase efficiency, ensuring energy-efficient and reliable operation. Included with the power supply are all necessary cables for motherboard, CPU, PCIe cards, SATA, and Molex for drives and accessories. The fully modular design allows for easy installation and reduces cable clutter. Thanks to the diverse connection options, your desktop PC can be flexibly adapted to your requirements.

    Silent, Semi-Passive Hybrid Mode

    The 120mm fan with hydrodynamic bearing provides optimal cooling with minimal noise. In this mode, the power supply fan automatically turns off at a load of under 40%, enabling nearly silent operation. The semi-passive hybrid mode can be easily turned on and off using a switch on the back.

    Silent operation offers you several advantages: it creates a quieter working and gaming environment, reduces distractions, and thereby enhances your overall experience. Additionally, this prolongs the lifespan of your power supply by reducing wear on the fan.

    Note: Only use the included cables. Using other, incompatible internal power supply cables may cause damage not covered by the manufacturer’s warranty.

    Colour
    Primary Colour
    White
    Dimensions
    Length / Depth
    140 mm
    Width
    150 mm
    Height
    86 mm
    Fan Specifications
    Fan Size
    120 mm
    Power Supply
    PSU Format
    ATX
    ATX Standard
    ATX 3.1
    12V Distribution
    single rail
    Modular Power Supply
    Yes
    Modular Type
    fully modular
    Protection Circuits
    No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), Reset Protection, SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
    Power Specifications
    Total Power Output
    1200 W
    Power Output +3.3V
    66 W
    Power Output +5V
    100 W
    Power Output +3.3V & +5V (combined)
    120 W
    Power Output +12V rails
    1200 W
    Power Output -12V
    3.6 W
    Power Output +5Vsb
    15 W
    Cable Specifications
    Max. CPU Power Cable Length
    650 mm
    Max. 24-Pin Motherboard Power Cable Length
    610 mm
    Max. 12V-2×6 Cable Length
    720 mm
    Max. PCIe Power Cable Length
    750 mm
    Max. SATA Power Cable Length
    900 mm
    Cooling
    Semi Passive Power Supply
    Yes
    Switchable Semi Passive Mode
    Yes
    Semi Passive Type
    passive
    Internal Ports
    CPU Power Connectors 12V ATX/EPS
    2
    CPU Power Supply
    2x 4+4-Pin
    12V-2×6 Power Connectors
    1
    6+2 Pin PCIe Power Connectors
    4
    SATA Power Connectors
    14
    4 Pin Molex Power Connectors
    2
    Efficiency Class
    80PLUS Efficiency
    80 PLUS Platinum
    Lighting
    Lighting / RGB
    No
