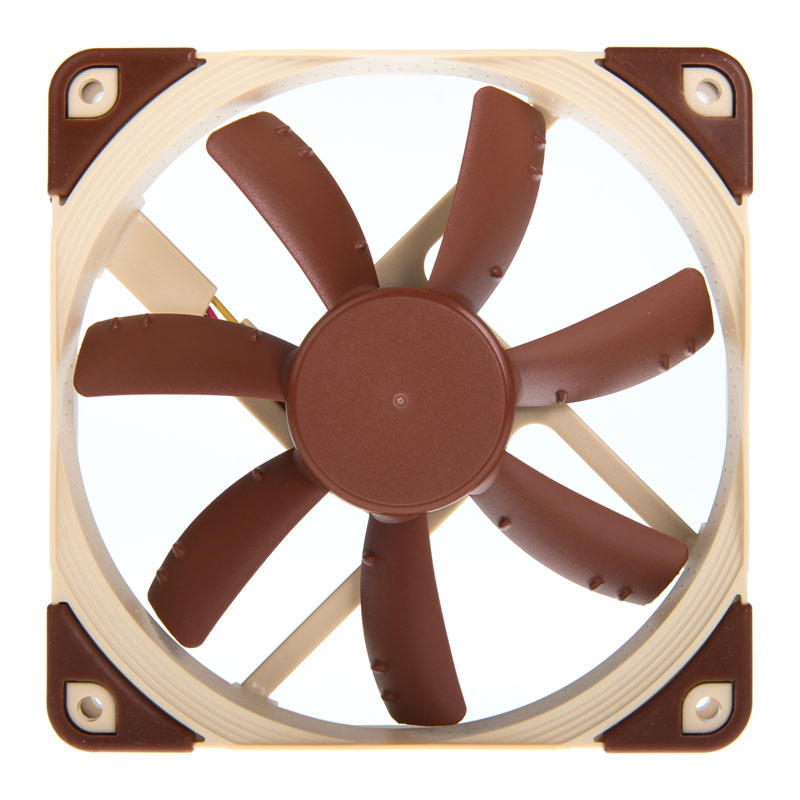

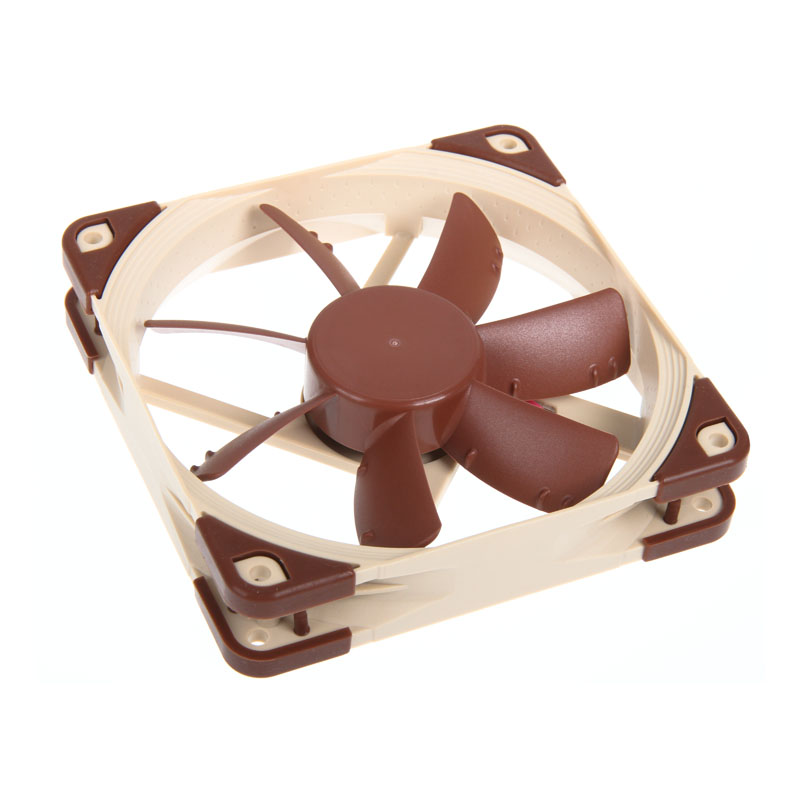

Noctua NF-S12A PWM korpuso ventiliatorius – 120mm

The NF-S12A case fan represents the third generation of Noctua’s classic S12 series, which has received over 250 awards and recommendations from the international press. With its refined blade geometry featuring Anti-Stall Knobs and the new AAO frame (Advanced Acoustic Optimisation), the NF-S12A achieves up to 8% higher efficiency (airflow/noise ratio) compared to its renowned predecessor.

The PWM version uses Noctua’s custom-designed NE-FD1 IC for fully automatic speed control via 4-pin connectors and comes with a Low-Noise Adapter that reduces the maximum speed in PWM mode from 1200 to 900 RPM. Its exceptional smoothness, SSO2 reference-class bearing, and Noctua’s proven premium quality make the NF-S12A an outstanding choice for noise-optimised case cooling.

The NF-S12A utilises the third evolutionary stage of Noctua’s classic Straight Blade Design, which has earned the S12 series countless recommendations from hardware enthusiasts and journalists worldwide. Further optimised for even better airflow/noise efficiency, this makes the NF-S12A the ideal silent case fan.

The Anti-Stall Knobs of the NF-S12A reduce vortex shedding in situations with medium to high flow resistance, thereby extending the so-called stall margin. This makes the NF-S12A even more versatile than its predecessor and enables better performance on heatsinks and radiators.

Noctua’s AAO (Advanced Acoustic Optimisation) frame features integrated vibration buffers, a stepped inlet design, and inner surface microstructures, which enable even better performance/noise efficiency.

The stepped inlet design creates more turbulence in the intake, facilitating the transition from laminar to turbulent flow, which adheres better to the frame (flow attachment) and increases the fan’s suction capacity, particularly in confined intake areas.

The inner surface microstructures create a boundary layer through which the fan blades move. This reduces flow separation from the suction side of the blade tips, resulting in a significant reduction in blade-passing noise and an increase in pressure and airflow efficiency.

The NF-S12A PWM supports fully automatic speed control via PWM, utilising Noctua’s new custom-designed NE-FD1 chip. This new PWM IC integrates Noctua’s Smooth Commutation Drive (SCD) technology, which minimises PWM switching noises, making the fan even quieter at low speeds.

The NF-S12A is equipped with the further optimised second generation of Noctua’s proven SSO bearing system. In SSO2, the rear magnet is placed closer to the fan axis, providing even better stabilisation, resulting in further improved precision and durability.

Noctua fans are known for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A has an MTBF rating of over 150,000 hours and comes with a full 6-year manufacturer’s warranty.
