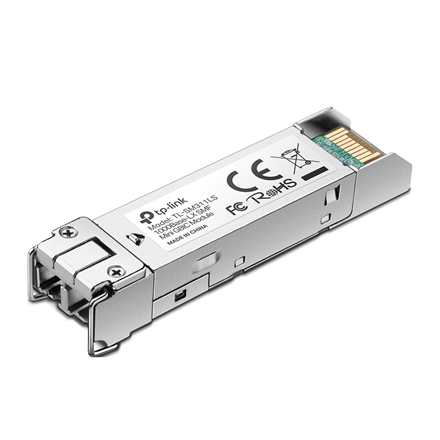

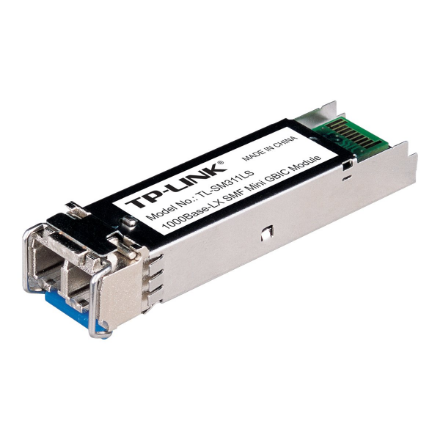

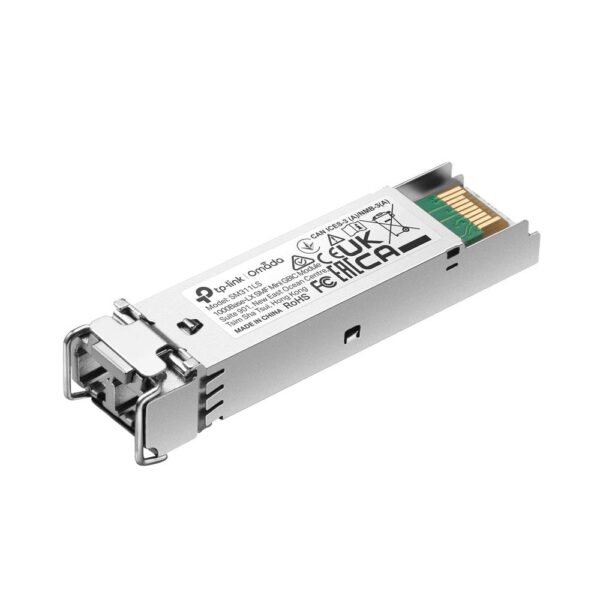

The SM311LS (TL-SM311LS) Fiber Module Cards are introduced to extend transferring distance. Installed in our managed/smart switches, they can extend the distance to even tens of kilometers, which basically satisfy the distance requirement of LAN. Users can choose the fiber modules according to specific demands.
- Up to 20 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
Specifikacija
| Summary | TP-Link Omada Gigabit SFP Module, Single-mode, MiniGBIC, LC Interface, Up to 10km Distance. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: mini-GBIC. Product colour: Silver, Brand compatibility: MSA Compliant. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC). Width: 55.4 mm, Depth: 14.6 mm, Height: 12.9 mm |
| Vendor Homepage | https://www.omadanetworks.com/de/business-networking/omada-accessory-module-cable/sm311ls/ |
| Category Code | NTM |
| CnCode | 85176200 |
| Unit Box Height | 0.04 |
| Unit Box Length | 0.125 |
| Unit Box Width | 0.082 |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Duplex system | Full |
| Fiber cable diameters supported (core/cladding) | 9/125 |
| Fiber ethernet cabling technology | 1000BASE |
| Fiber optic connector | LC |
| Interface type | mini-GBIC |
| Maximum data transfer rate | 1250 |
| Maximum transfer distance | 20000 |
| Networking standards | IEEE 802.3z |
| SFP transceiver standard | LX |
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Yes |
| Wavelength | 1310 |
| Brand compatibility | MSA Compliant |
| Hot-Plug support | Yes |
| Hot-swap | Yes |
| Product colour | Silver |
| Input voltage | 3.3 |
| Compliance certificates | CE/Federal Communications Commission (FCC) |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 70 |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 85 |
| Depth | 14.6 |
| Height | 12.9 |
| Width | 55.4 |
| Manual | Yes |
| Quantity per pack | 1 |
| Package depth | 207 |
| Package height | 38 |
| Package weight | 110 |
| Package width | 38 |
| Model | TL-SM311LS |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00041 |
| Unit Calculated Weight | 0.06 |
