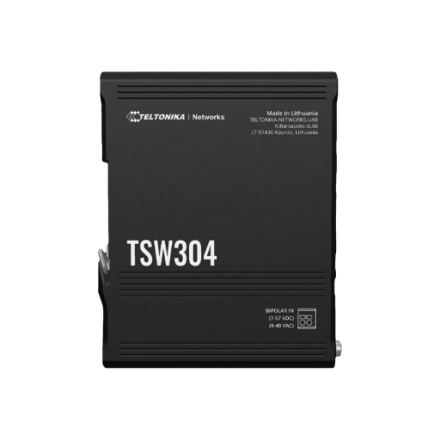

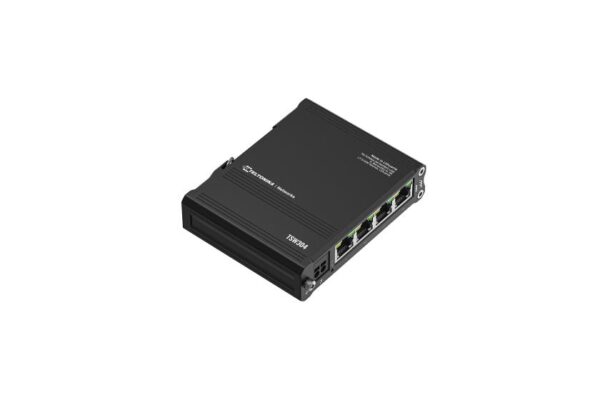

NET ROUTER 4PORT 10/100/1000/TSW304 TELTONIKA
66,84 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
DIN RAIL SWITCH
TSW304 is the tiniest switch in the Teltonika Networks portfolio, made with the industrial application scenarios in mind. This ultra-small device comes with an integrated DIN rail mounting option and will easily find its place in any server cabinet. Durable design and shock-resistant casing make it perfect for even the most challenging industrial environments.
MOUNTING
Integrated DIN rail bracket and surface mounting options
COMPACT
102 x 25 x 81.5 mm
GIGABIT ETHERNET
4 x Gigabit Ethernet with speeds of up to 1000 Mbps
7-57 V
Wide range of supported power supply voltages
Specifikacija
| Summary | Teltonika TSW304. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 2000 entries, Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 7 – 57 V. Power over Ethernet (PoE). Wall mountable |
| Vendor Homepage | https://teltonika-networks.com/products/switches/tsw304 |
| Category Code | SWI |
| CnCode | 85176200 |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.11 |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| MAC address table | 2000 |
| Packet buffer memory | 0.128 |
| Switching capacity | 8 |
| DIN rail mounting | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| LED indicators | Power/Status |
| Product colour | Black |
| Wall mountable | Yes |
| DC input voltage | 7 – 57 |
| Input voltage | 9 – 40 |
| Power consumption (max) | 1.44 |
| Power consumption (typical) | 0.26 |
| Power source | AC/DC |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | -40 – 75 |
| Depth | 81.5 |
| Height | 25 |
| Weight | 210 |
| Width | 102 |
| Certification | CE, REACH, RoHS, WEEE, UKCA, FCC, IC, CB, RCM |
| Model | TSW304 |
| Model name | TSW304 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00033 |
| Unit Calculated Weight | 0.23 |
