NET MEDIA CONVERTER 10KM/FX-SX/LX/LH MC220L TP-LINK
18,12 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-18*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
– Complies with IEEE 802.3ab and IEEE 802.3z
– FX port supports hot-swappable
– Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

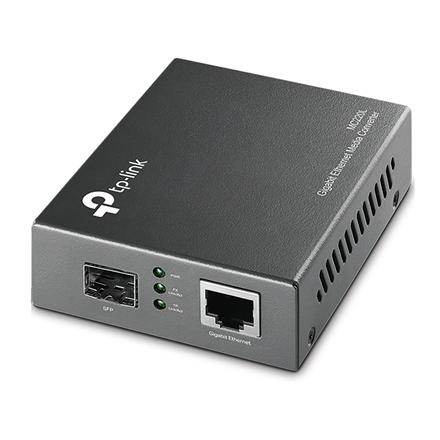

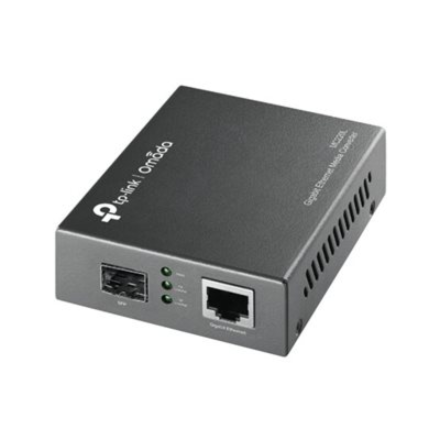

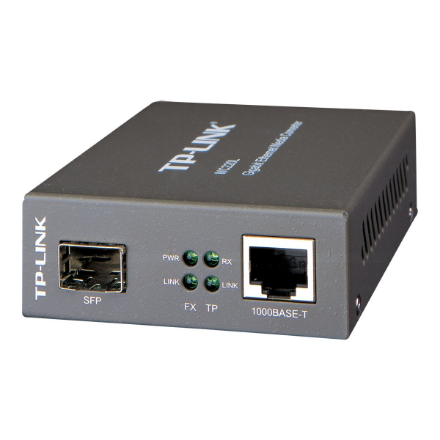

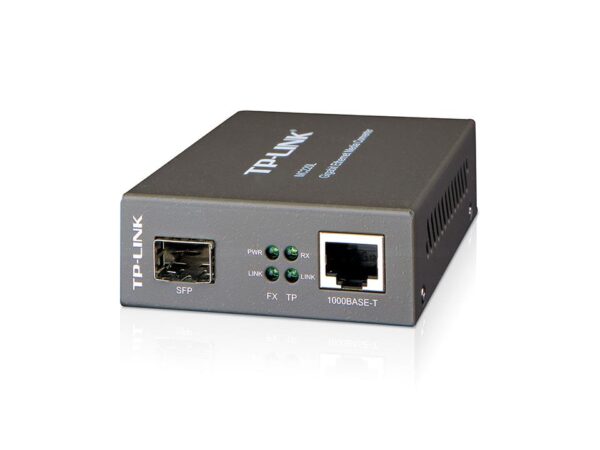

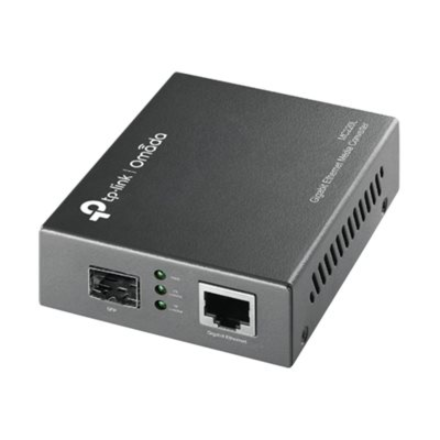

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Specifikacija
| Summary | TP-Link Gigabit SFP Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 10000 m, Fiber mode structure: Multi-mode, Single-mode. LED indicators: Link, Product colour: Black, Compliance industry standards: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x. Fiber optic connector: SFP, Connectivity technology: Wired. Power consumption (max): 1.7 W |
| Vendor Homepage | https://www.tp-link.com/products/product_des.asp?id=123# |
| Category Code | MCO |
| CnCode | 85176990 |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.205 |
| Unit Box Width | 0.17 |
| Auto MDI/MDI-X | Yes |
| Cabling technology | UTP 5e, 5 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1000 |
| Maximum data transfer rate | 1000 |
| Networking standards | IEEE 802.1ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Fiber mode structure | Multi-mode/Single-mode |
| Maximum transfer distance | 10000 |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Internal | No |
| LED indicators | Link |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber optic connector | SFP |
| Fiber ports quantity | 1 |
| External power adapter | Yes |
| Power consumption (max) | 1.7 |
| Depth | 73 |
| Height | 27 |
| Width | 94.5 |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | 0 – 40 |
| Storage relative humidity (H-H) | 5 – 90 |
| Storage temperature (T-T) | -40 – 70 |
| Package depth | 165 |
| Package height | 65 |
| Package weight | 420 |
| Package width | 204 |
| Certification | FCC, CE |
| Harmonized System (HS) code | 85176990 |
| Dimensions (WxDxH) | 94.5 x 73 x 27 |
| Full duplex | Yes |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
| Units per Shipping Box | 30 |
| Unit Calculated Volume | 0.002609 |
| Unit Calculated Weight | 0.503 |
