NET GATEWAY LTE/4G/TRB143 TELTONIKA
178,91 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

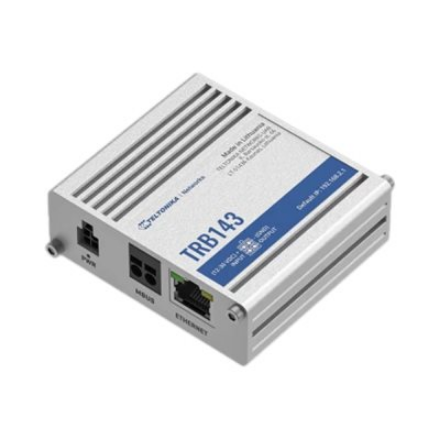

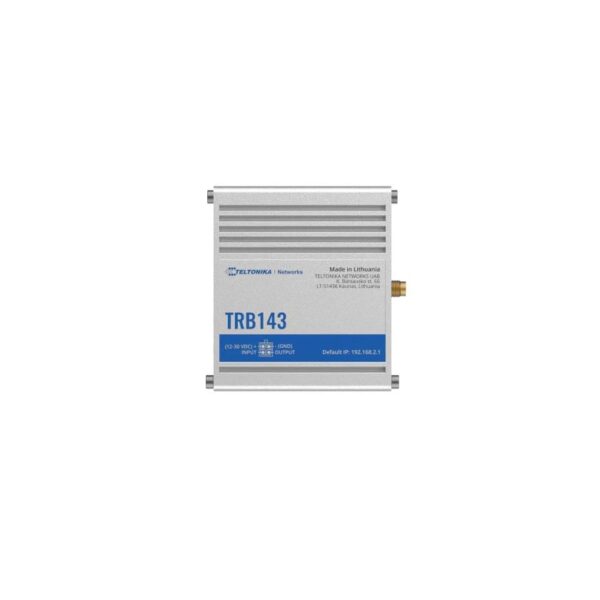

TRB143 – M-BUS CELLULAR GATEWAY
The TRB143 industrial gateway was designed with an integrated M-Bus interface specifically for telemetry and utility-monitoring applications. It features cellular and wired connectivity, one Gigabit Ethernet port, and a pair of digital Inputs/Outputs, making it applicable to a variety of environment-monitoring scenarios.
– M-BUS INTERFACE
Supporting up to 250 client devices
– CONNECTIVITY
4G/LTE (Cat 4), 3G, 2G
– DURABILITY
Rugged aluminum housing
– COMPACT
Simple integration
– Hardware version
Europe, The Middle East, Africa, Thailand
Specifikacija
| Summary | Teltonika TRB143. Product colour: Steel, Enclosure material: Aluminium, International Protection (IP) code: IP30. Antenna type: External, Antenna connector type: SMA. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor model: Cortex-A7. Supported network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP,…, Data link protocols: HTTP(S), MQTT, Azure MQTT, Kinesis. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, Mobile network generation: 4G |
| Vendor Homepage | https://teltonika-networks.com/products/gateways/trb143 |
| Category Code | GWC |
| CnCode | 85176200 |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.175 |
| Unit Box Width | 0.07 |
| Enclosure International Protection (IP) code | IP30 |
| Enclosure material | Aluminium |
| International Protection (IP) code | IP30 |
| Product colour | Steel |
| Antenna connector type | SMA |
| Antenna type | External |
| Antennas quantity | 1 |
| Short Message Service (SMS) | Yes |
| Built-in processor | Yes |
| Control display unit | No |
| Flash memory | 512 |
| Internal memory | 256 |
| Internal memory type | DDR3 |
| Processor family | ARM Cortex |
| Processor frequency | 1300 |
| Processor manufacturer | ARM |
| Processor model | Cortex-A7 |
| Data link protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| DMZ support | Yes |
| Supported network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL) |
| 4G LTE category | 4 |
| Cabling technology | 10/100/1000Base-T(X) |
| Data network | 2G/3G/4G |
| Dynamic DNS (DDNS) | Yes |
| Ethernet LAN data rates | 10/100/1000 |
| Mobile network generation | 4G |
| Networking standards | IEEE 802.3/IEEE 802.3az/IEEE 802.3u |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
| VLAN support | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Quality of Service (QoS) support | Yes |
| DC input voltage | 12 – 30 |
| Power consumption (max) | 6 |
| Power consumption (typical) | 3 |
| Power over Ethernet (PoE) | Yes |
| Depth | 73 |
| Height | 25 |
| Weight | 145 |
| Width | 74.5 |
| Operating relative humidity (H-H) | 10 – 90 |
| Operating temperature (T-T) | -40 – 75 |
| Model | TRB143 |
| Product model code | TRB143000000 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001837 |
| Product Net Weight | 0.145 |
| Unit Calculated Weight | 0.44 |
