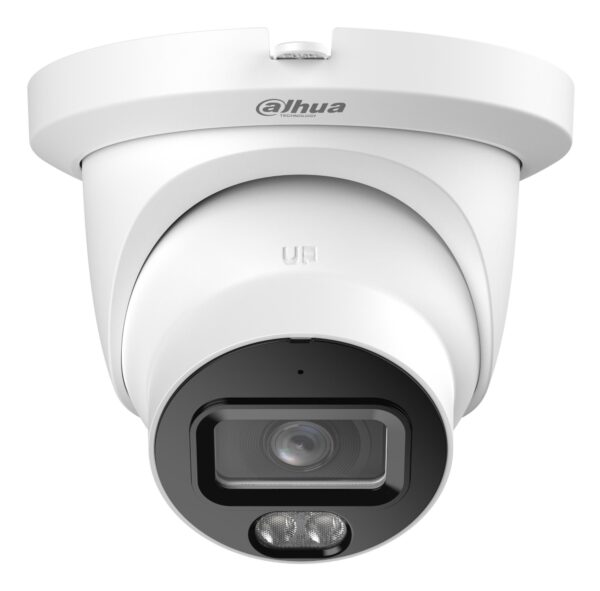

NET CAMERA 5MP EYEBALL/HDW5559TM-ASE-IL-0360B DAHUA
Prekės kodas: @2300357
240,32 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-04-16*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
- 5-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 5 MP (2960 × 1668) @25/30 fps.
- Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m.
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
- With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic
- 12 VDC/PoE power supply; ePoE
- IP67 protection.
Specifikacija
| Summary | Dahua Technology WizMind IPC-HDW5559TM-ASE-IL. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 108.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 124 m, Observe distance: 49.6 m, Recognize distance: 24.8 m |
| Vendor Homepage | https://www.dahuasecurity.com/ceen/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDW5559TM-ASE-IL |
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.15 |
| Form factor | Turret |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 56 |
| People counting function | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Angle of rotation | 360 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 – 1/100000 |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 127.1 |
| Lens viewing angle, horizontal | 108.4 |
| Lens viewing angle, vertical | 60 |
| Minimum illumination | 0.0005 |
| Pan range | 0 – 360 |
| Tilt angle range | 0 – 80 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/2.7 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 3.2 |
| Detect distance | 124 |
| Fixed focus | Yes |
| Focal length range | 6 – 2.8 |
| Identify distance | 12.4 |
| Maximum aperture number | 1.6 |
| Observe distance | 49.6 |
| Recognize distance | 24.8 |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 50 |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2960 x 1668 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 5 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video streaming | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/G.723/G.726/PCM |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Built-in microphone | Yes |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Number of users | 20 |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 |
| RAM capacity | 2000 |
| ROM capacity | 4000 |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Digital watermark | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection/Heat map/Human detection/Intrusion/People counting/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Video motion detection | Yes |
| Cloud-managed | No |
| DC output voltage | 12 |
| Power consumption (max) | 13.3 |
| Power consumption (Power over Ethernet (PoE)) | 6.3 |
| Power consumption (typical) | 4.2 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 |
| Operating temperature (T-T) | -40 – 60 |
| Storage temperature (T-T) | -40 – 60 |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 |
| Height | 105.5 |
| Weight | 530 |
| Compliance certificates | CE/Electromagnetic Compatibility (EMC) |
| Package type | Box |
| Package weight | 710 |
| Manual | Yes |
| Number of cameras | 1 |
| Audio input | RCA |
| Audio output | RCA |
| Browser supported | IE: IE 11, Chrome: Chrome 102, Firefox: Firefox 88 |
| Lens mount interface | M12 |
| Number of video streams | 4 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00294 |
| Unit Calculated Weight | 0.78 |
