NB MEMORY 16GB PC25600 DDR4/SO KVR32S22S8/16 KINGSTON
Prekės kodas: @1963262
155,85 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-04-10*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

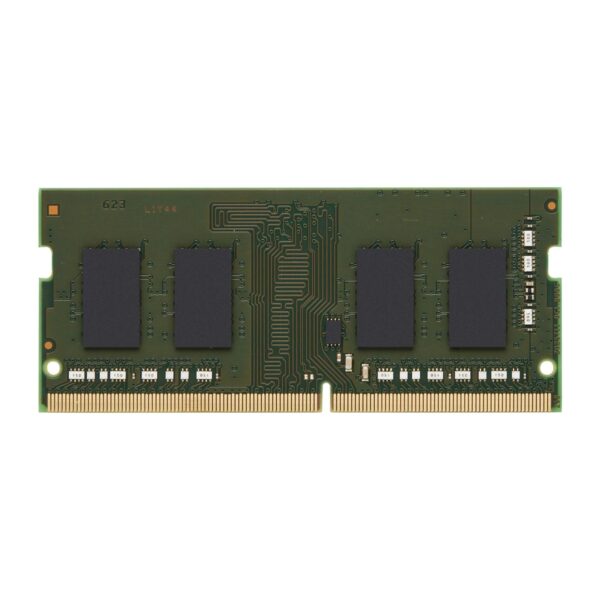

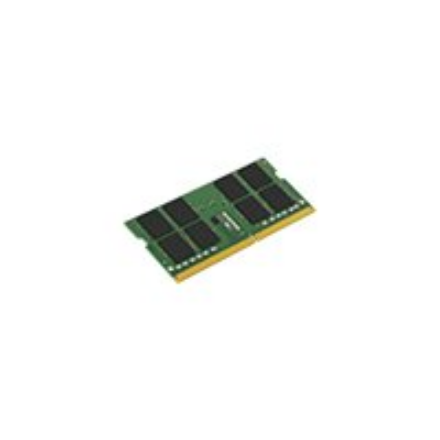

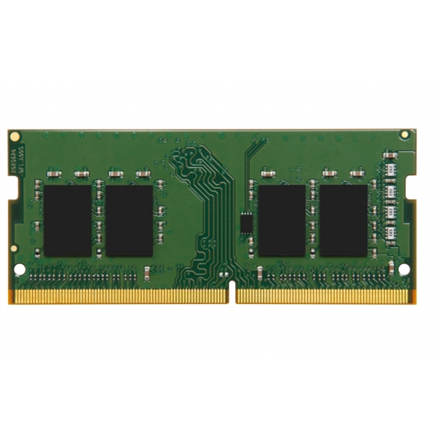

ValueRAM’s KVR32S22S8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, non-ECC, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
- data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
- via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
Specifikacija
| Summary | Kingston Technology ValueRAM . Component for: Laptop, Internal memory: 16 GB, Memory layout (modules x size): 1 x 16 GB, Internal memory type: DDR4, Memory form factor: 260-pin SO-DIMM, CAS latency: 22 |
| Vendor Homepage | https://www.kingston.com/en |
| Category Code | MEB |
| CnCode | 84733020 |
| Unit Box Height | 0.01 |
| Unit Box Length | 0.08 |
| Unit Box Width | 0.045 |
| Buffered memory type | Unregistered (unbuffered) |
| CAS latency | 22 |
| Component for | Laptop |
| Country of origin | Taiwan |
| ECC | No |
| Internal memory | 16 |
| Internal memory type | DDR4 |
| Memory data transfer rate | 3200 |
| Memory form factor | 260-pin SO-DIMM |
| Memory layout (modules x size) | 1 x 16 |
| Height | 30 |
| Width | 69.6 |
| Harmonized System (HS) code | 84733020 |
| Model | KVR32S22S8/16 |
| Units per Shipping Box | 25 |
| Unit Calculated Volume | 5.04E-05 |
| Unit Calculated Weight | 0.018 |
