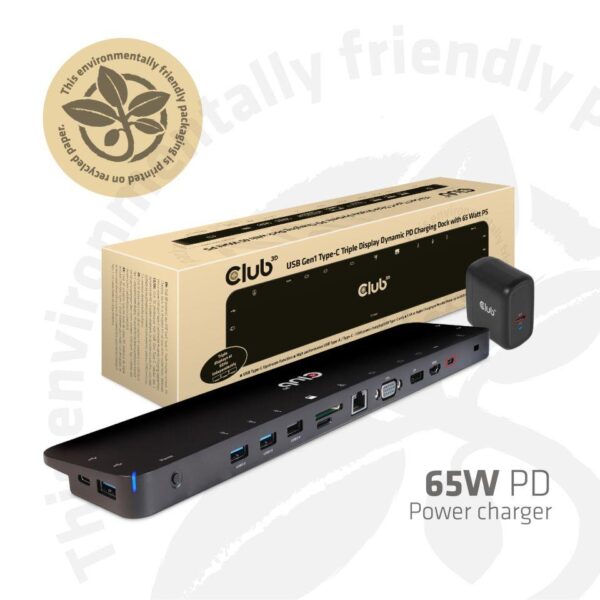

NB ACC DOCKING STATION/USB-C 65W CSV-1564W65 CLUB3D
143,51 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-03-27*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas
The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports (HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your notebooks’ power supply. So in general the user is traveling lighter. The Micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™ Alt Mode.
Specifikacija
| Summary | CLUB3D UNIVERSAL USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS ( VGA, HDMI, DP, ETHERNET). Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-TX, Networking standards: IEEE 802.3. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), HD type: 4K Ultra HD. Power source type: AC, Power connector: USB Type-C, Power supply: 100 W. Width: 350 mm, Depth: 75 mm, Height: 20 mm |
| Vendor Homepage | https://www.club-3d.com/en/detail/2576/usb_gen1_type_c_triple_display_dynamic_pd_charging_dock_with_65_watt_ps/ |
| Category Code | NBK |
| CnCode | 84733020 |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.11 |
| Combo headphone/mic port | Yes |
| Connectivity technology | Docking |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Microphone in | No |
| PowerShare | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Copper ethernet cabling technology | 1000BASE-TX |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 |
| Networking standards | IEEE 802.3 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 |
| Maximum refresh rate | 60 |
| Product colour | Black |
| Power connector | USB Type-C |
| Power source type | AC |
| Power supply | 100 |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Depth | 75 |
| Height | 20 |
| Weight | 616 |
| Width | 350 |
| Quantity per pack | 1 |
| AC adapter included | Yes |
| Cables included | USB Type-C |
| Paper/cardboard packaging weight | 239 |
| Plastic packaging weight | 5 |
| Harmonized System (HS) code | 8473 3020 |
| Model | CSV-1564W65 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003053 |
| Unit Calculated Weight | 0.56 |
