NB ACC DOCKING STATION/USB-C 120W CSV-1568 CLUB3D
999,00 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
Pranešti kai prekė vėl bus prekyboje
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

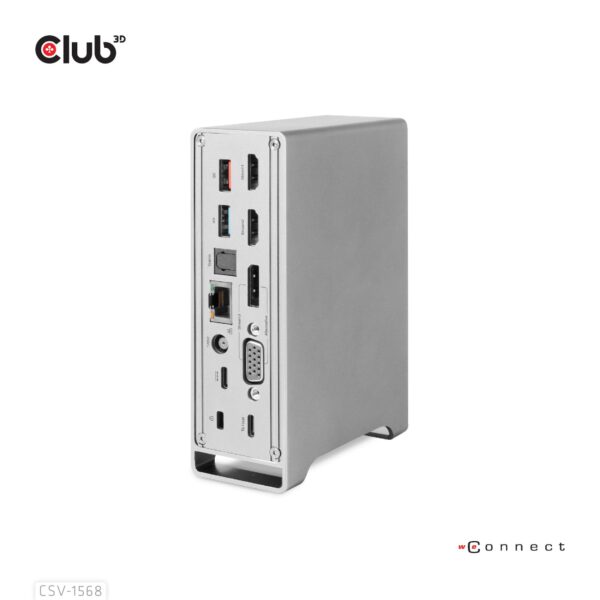

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).
It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.
- Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
- Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
- When 3 Displays are connected – 16.2Gbps bandwidth will be shared
- Single Display Support – HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
- DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
- DP and HDMI support deep color 8/10 bit
- DP and HDMI support HDR
- DP and HDMI support HDCP2.2 & 1.4
- DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
- Support Gigabit Ethernet 10/100/1000M
- Support USB3.2 Gen2 with max 10Gbps data transfer
- Support smart charging
- Support Digital audio with max 96KHz/24bit sampling rate
- Support dual power supplies: Type-C PD charging or DC Jack
- Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
- Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
Specifikacija
| Summary | CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 – 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm |
| Vendor Homepage | https://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/ |
| Category Code | NBK |
| CnCode | 84733020 |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.225 |
| Unit Box Width | 0.16 |
| Combo headphone/mic port | Yes |
| Connectivity technology | Docking |
| DC-in jack | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| HDMI ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Thunderbolt 3 Power Delivery | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Brand compatibility | Apple |
| Card reader integrated | Yes |
| Certification | Meets ROHS, FCC, and CE EMI requirements |
| Compatibility | Lenovo Dell Acer Asus MSI Toshiba Apple HP Razer |
| Country of origin | China |
| Data transfer rate | 16.2 |
| High Dynamic Range (HDR) supported | Yes |
| Key lock | Yes |
| Maximum refresh rate | 60 |
| Plug and Play | Yes |
| Product colour | Metallic |
| AC input voltage | 100 – 240 |
| Power cable length | 1 |
| Power connector | USB Type-C |
| Power consumption (max) | 120 |
| Power source type | DC |
| Power supply | 120 |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Depth | 90 |
| Height | 44 |
| Weight | 563 |
| Width | 139 |
| Package depth | 155 |
| Package height | 97 |
| Package weight | 1359 |
| Package width | 225 |
| Quantity per pack | 1 |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Stand included | Yes |
| Paper/cardboard packaging weight | 168 |
| Plastic packaging weight | 5 |
| Harmonized System (HS) code | 8473 3020 |
| Special features | In the box: CSV-1568 Docking Station PowerSupply Input:100-110/240VAC, Output: up to 120W USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft Detachable stand Quick Install Guide |
| Voltage | 20.5 |
| Model | CSV-1568 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00342 |
| Unit Calculated Weight | 1.39 |
