NB ACC DOCKING STATION/USB-C 100W CSV-1565 CLUB3D
184,55 €
Užsakomoji prekė.
Numatoma atsiėmimo*/išsiuntimo** data:
2026-04-16*atsiėmimo taške Ozo g. 20, Vilnius
**pristatymas kurjeriu papildomai 1-2 darbo dienos nuo išsiuntimo
- Aprašymas
- Atsiliepimai (0)
Aprašymas
Aprašymas

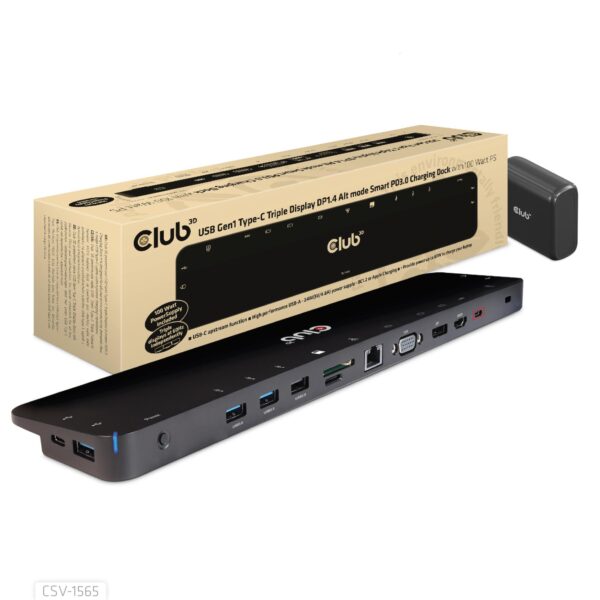

The Club-3D CSV-1565 USB Gen1 Type-C Triple Display DP1.4 Alt mode Smart PD3.0 Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images(1x HDMI™ 4K60Hz+1x DP™ 4K60Hz+1x VGA 1920×1080@60Hz) or videos on 3 different displays(1x 4K30Hz+2x1080p@60Hz) outputs under MST mode simultaneously. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD3.0 power Adapter, no need to carry your Notebooks PowerSupply. So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP1.4 Alt mode supported hosts. (PC, Laptop, Mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD3.0 Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™1.4 Alt Mode.
- Features:
- Supports DP1.4 Alt Mode and PD 3.0
- Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
- One USB Gen1 Type-C Data port
- One USB Gen1 Type-C port supports PD3.0 charging with max 100W(20V/5A) Bundled with 100W Power Supply
- 1x HDMI™ 4K60Hz
- 1x DP™ 4K60Hz
- 1x VGA 1920×1080@60Hz
- Triple Display support(1x 4K30Hz+2x1080p@60Hz) outputs under MST mode
- One port IEEE 802.3 Ethernet support for 10M/100M/1000Mbps
- SD- and Micro-SD Slots work simultaneously
- Audio port(Stereo), supports both micro- and head-phone, Max 96Khz sampling rate
- Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD3.0 PowerSupply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power
Specifikacija
| Summary | CLUB3D USB Gen1 Type-C Triple Display DP1.4 Alt mode Smart PD3.0 Charging Dock with 100 Watt Power Supply. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product colour: Black. Paper/cardboard packaging weight: 239 g. Harmonized System (HS) code: 8473 3020 |
| Vendor Homepage | https://club-3d.com/en/detail/2629/usb_gen1_type_c_triple_display_dp1.4_alt_mode_smart_pd3.0_charging_dock_with_100_watt_power_supply/ |
| Category Code | NBK |
| CnCode | 84733020 |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.105 |
| Combo headphone/mic port | Yes |
| Connectivity technology | Docking |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Microphone in | Yes |
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Card reader integrated | Yes |
| Product colour | Black |
| Paper/cardboard packaging weight | 239 |
| Harmonized System (HS) code | 8473 3020 |
| Model | CSV-1565 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004274 |
| Unit Calculated Weight | 0.73 |
